Weidmuller ZTR 2.5 1831280000 Terminal Block

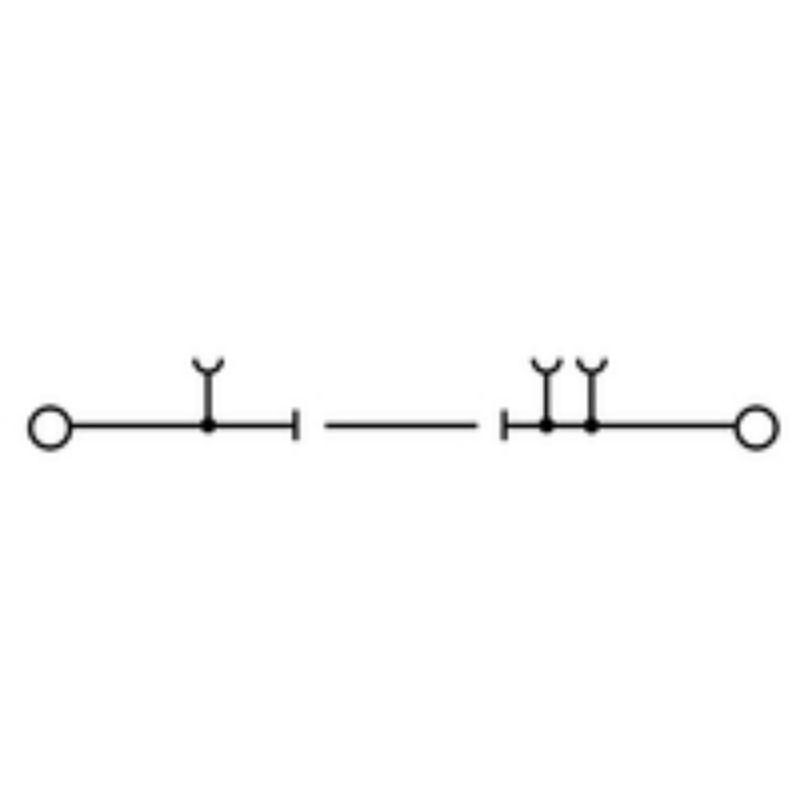

Weidmuller ZTR 2.5 is Z-Series, Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, Pivoting, dark beige, order no.is 1831280000.

Products Details

Time saving 1.Integrated test point 2.Simple handling thanks to parallel alignment of conductor entry 3.Can be wired without special tools Space saving 1.Compact design 2.Length reduced by up to 36 percent in roof style Safety 1.Shock and vibration proof• 2.Separation of electrical and mechanical functions 3.No-maintenance connection for a safe, gas-tight contacting 4.The tension clamp is made of steel with an externally-sprung contact for optimum contact force 5.Current bar made of copper for low voltage Drop Flexibility 1.Pluggable standard cross-connections for flexible potential distribution 2.Secure interlocking of all plug-in connectors (WeiCoS) Exceptionally practical The Z-Series has an impressive, practical design and comes in two variants: standard and roof. Our standard models cover wire cross-sections from 0.05 to 35 mm2. Terminal blocks for wire cross-sections from 0.13 to 16 mm2 are available as roof variants. The striking shape of the roof style gives a reduction in length of up to 36 percent compared to standard terminal blocks.  Simple and clear  Despite their compact width of just 5 mm (2 connections) or 10 mm (4 connections), our block terminals guarantee absolute clarity and ease of handling thanks to the top-entry conductor feeds. This means the wiring is clear even in terminal boxes with restricted space.
Version Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, Pivoting, dark beige
Order No. 1831280000
Type ZTR 2.5
GTIN (EAN) 4032248422036
Qty. 50 pc(s).

Depth 38.5 mm
Depth (inches) 1.516 inch
Depth including DIN rail 41 mm
Height 59.5 mm
Height (inches) 2.343 inch
Width 5.1 mm
Width (inches) 0.201 inch
Net weight 8.67 g

Order No. Type
8731710000 ZTR 2.5 BL
8731680000 ZTR 2.5 OR
8731720000 ZTR 2.5/3AN
8731730000 ZTR 2.5/3AN BL
8731690000 ZTR 2.5/3AN OR
8728450000 ZTR 2.5/3AN/O.TNHE
7920900000 ZTR 2.5/4AN
1831130000 ZTR 2.5/O.TNHE
