Time saving 1.Integrated test point 2.Simple handling thanks to parallel alignment of conductor entry 3.Can be wired without special tools Space saving 1.Compact design 2.Length reduced by up to 36 percent in roof style Safety 1.Shock and vibration proof• 2.Separation of electrical and mechanical functions 3.No-maintenance connection for a safe, gas-tight contacting 4.The tension clamp is made of steel with an externally-sprung contact for optimum contact force 5.Current bar made of copper for low voltage Drop Flexibility 1.Pluggable standard cross-connections for flexible potential distribution 2.Secure interlocking of all plug-in connectors (WeiCoS) Exceptionally practical The Z-Series has an impressive, practical design and comes in two variants: standard and roof. Our standard models cover wire cross-sections from 0.05 to 35 mm2. Terminal blocks for wire cross-sections from 0.13 to 16 mm2 are available as roof variants. The striking shape of the roof style gives a reduction in length of up to 36 percent compared to standard terminal blocks.  Simple and clear  Despite their compact width of just 5 mm (2 connections) or 10 mm (4 connections), our block terminals guarantee absolute clarity and ease of handling thanks to the top-entry conductor feeds. This means the wiring is clear even in terminal boxes with restricted space.

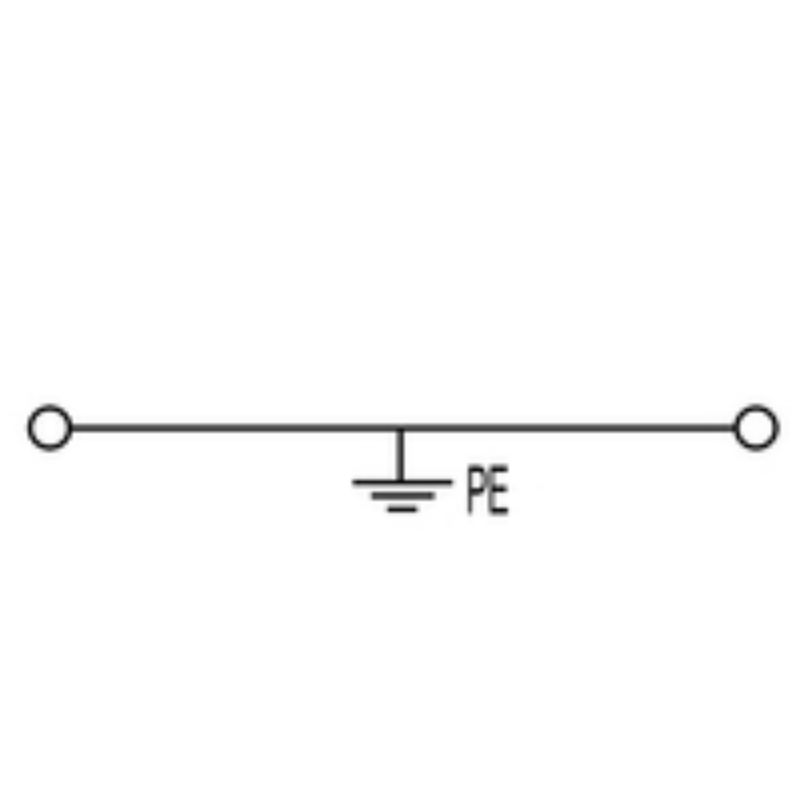

Version	PE terminal, Tension-clamp connection, 6 mm², 720 A (6 mm²), Green/yellow
Order No.	1608670000
Type	ZPE 6
GTIN (EAN)	4008190259242
Qty.	50 pc(s).



Depth	45 mm
Depth (inches)	1.772 inch
Depth including DIN rail	45.5 mm
Height	65 mm
Height (inches)	2.559 inch
Width	8.1 mm
Width (inches)	0.319 inch
Net weight	21.63 g



Order No.	Type
7907400000	ZPE 6/3AN
