Time saving 1.Integrated test point 2.Simple handling thanks to parallel alignment of conductor entry 3.Can be wired without special tools Space saving 1.Compact design 2.Length reduced by up to 36 percent in roof style Safety 1.Shock and vibration proof• 2.Separation of electrical and mechanical functions 3.No-maintenance connection for a safe, gas-tight contacting 4.The tension clamp is made of steel with an externally-sprung contact for optimum contact force 5.Current bar made of copper for low voltage Drop Flexibility 1.Pluggable standard cross-connections for flexible potential distribution 2.Secure interlocking of all plug-in connectors (WeiCoS) Exceptionally practical The Z-Series has an impressive, practical design and comes in two variants: standard and roof. Our standard models cover wire cross-sections from 0.05 to 35 mm2. Terminal blocks for wire cross-sections from 0.13 to 16 mm2 are available as roof variants. The striking shape of the roof style gives a reduction in length of up to 36 percent compared to standard terminal blocks.  Simple and clear  Despite their compact width of just 5 mm (2 connections) or 10 mm (4 connections), our block terminals guarantee absolute clarity and ease of handling thanks to the top-entry conductor feeds. This means the wiring is clear even in terminal boxes with restricted space.

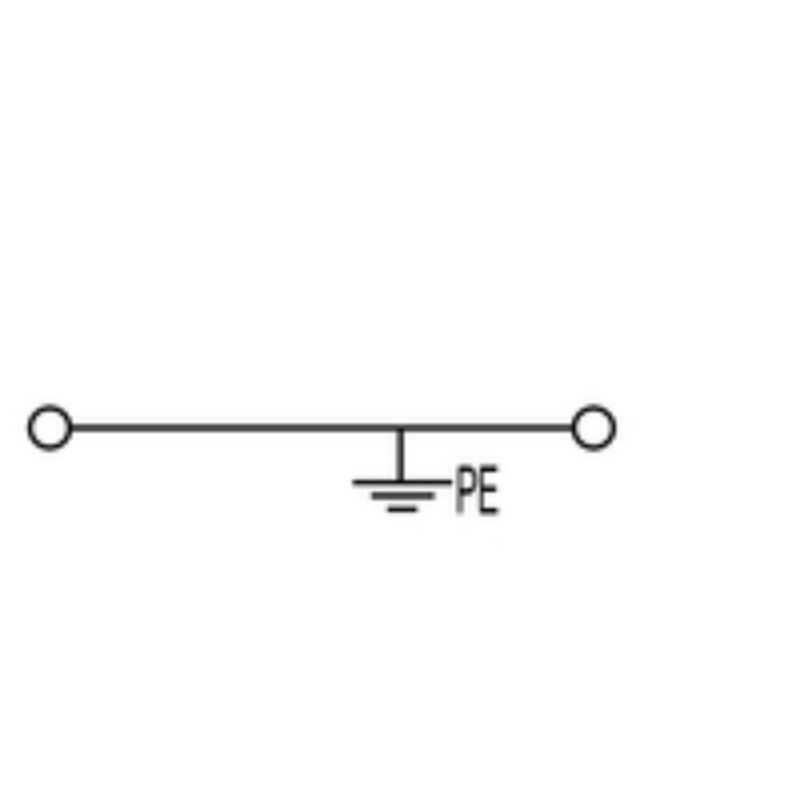

Version	PE terminal, Tension-clamp connection, 2.5 mm², 300 A (2.5 mm²), Green/yellow
Order No.	1608640000
Type	ZPE 2.5
GTIN (EAN)	4008190076733
Qty.	50 pc(s).



Depth	38.5 mm
Depth (inches)	1.516 inch
Depth including DIN rail	39.5 mm
Height	63 mm
Height (inches)	2.48 inch
Width	5.1 mm
Width (inches)	0.201 inch
Net weight	11.17 g



Order No.	Type
1608650000	ZPE 2.5/3AN
1608660000	ZPE 2.5/4AN
1608640000	ZPE 2.5
