Time saving 1.Integrated test point 2.Simple handling thanks to parallel alignment of conductor entry 3.Can be wired without special tools Space saving 1.Compact design 2.Length reduced by up to 36 percent in roof style Safety 1.Shock and vibration proof• 2.Separation of electrical and mechanical functions 3.No-maintenance connection for a safe, gas-tight contacting 4.The tension clamp is made of steel with an externally-sprung contact for optimum contact force 5.Current bar made of copper for low voltage Drop Flexibility 1.Pluggable standard cross-connections for flexible potential distribution 2.Secure interlocking of all plug-in connectors (WeiCoS) Exceptionally practical The Z-Series has an impressive, practical design and comes in two variants: standard and roof. Our standard models cover wire cross-sections from 0.05 to 35 mm2. Terminal blocks for wire cross-sections from 0.13 to 16 mm2 are available as roof variants. The striking shape of the roof style gives a reduction in length of up to 36 percent compared to standard terminal blocks.  Simple and clear  Despite their compact width of just 5 mm (2 connections) or 10 mm (4 connections), our block terminals guarantee absolute clarity and ease of handling thanks to the top-entry conductor feeds. This means the wiring is clear even in terminal boxes with restricted space.

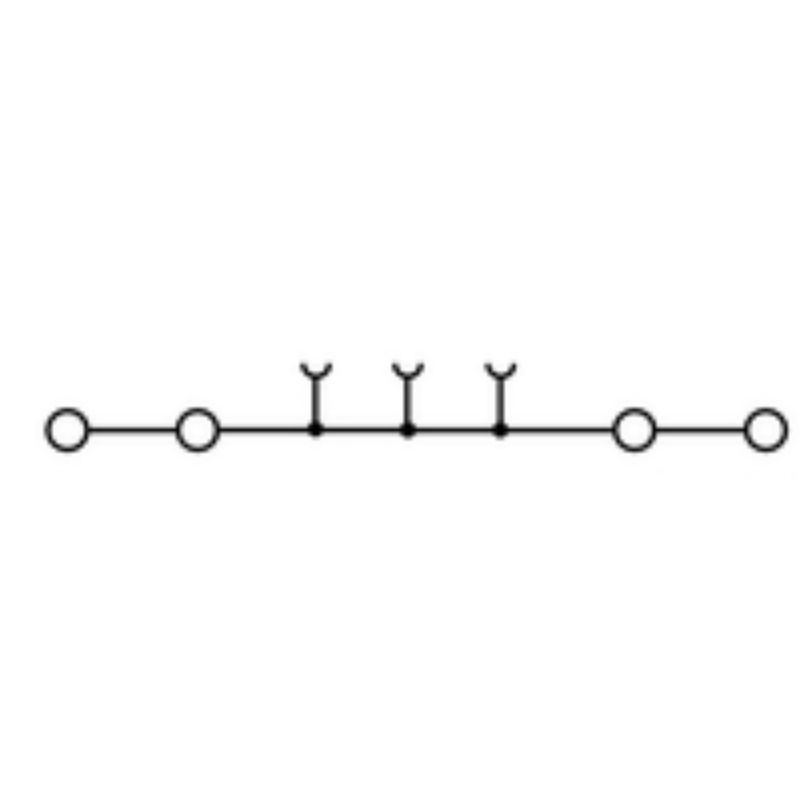

Version	Feed-through terminal, Tension-clamp connection, 4 mm², 800 V, 32 A, dark beige
Order No.	7904290000
Type	ZDU 4/4AN
GTIN (EAN)	4032248422197
Qty.	50 pc(s).



Depth	43 mm
Depth (inches)	1.693 inch
Depth including DIN rail	43.5 mm
Height	104.5 mm
Height (inches)	4.114 inch
Width	6.1 mm
Width (inches)	0.24 inch
Net weight	21.32 g



Order No.	Type
1632050000	ZDU 4
1632060000	ZDU 4 BL
1683620000	ZDU 4 BR
1683590000	ZDU 4 GE
1683630000	ZDU 4 GR
1636830000	ZDU 4 OR
1683580000	ZDU 4 RT
1683650000	ZDU 4 SW
1683640000	ZDU 4 WS
1651900000	ZDU 4/10/BEZ
7904180000	ZDU 4/3AN
7904190000	ZDU 4/3AN BL
7904290000	ZDU 4/4AN
7904300000	ZDU 4/4AN BL
