Weidmuller WTR 4/ZZ 1905090000 Test-disconnect Terminal Block

In some applications it makes sense to add a test point or a disconnect element to the feed through terminal for testing and safety purposes. With test disconnect terminals you measure electric circuits in the absence of voltage. While the disconnecting points clearance and creepage distance is not assessed in dimensional terms, the specified rated impulse voltage strength must be proven. Weidmuller WTR 4/ZZ is test-disconnect terminal, screw connection, 4 mm², 500 V, 27 A, pivoting, dark beige, order no.is 1905090000.

Products Details

Numerous national and international approvals and qualifications in accordance with a variety of application standards make the W-series a universal connection solution, especially in harsh conditions. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Whatever your requirements for the panel: our screw connection system with patented clamping yoke technology ensures the ultimate in contact safety. You can use both screw-in and plug-in cross-connections for potential distribution. Two conductors of the same diameter can also be connected in a single terminal point in accordance with UL1059. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Weidmulles W series terminal blocks save spaceSmall “W-Compact” size saves space in the panel. Two conductors can be connected for each contact point.

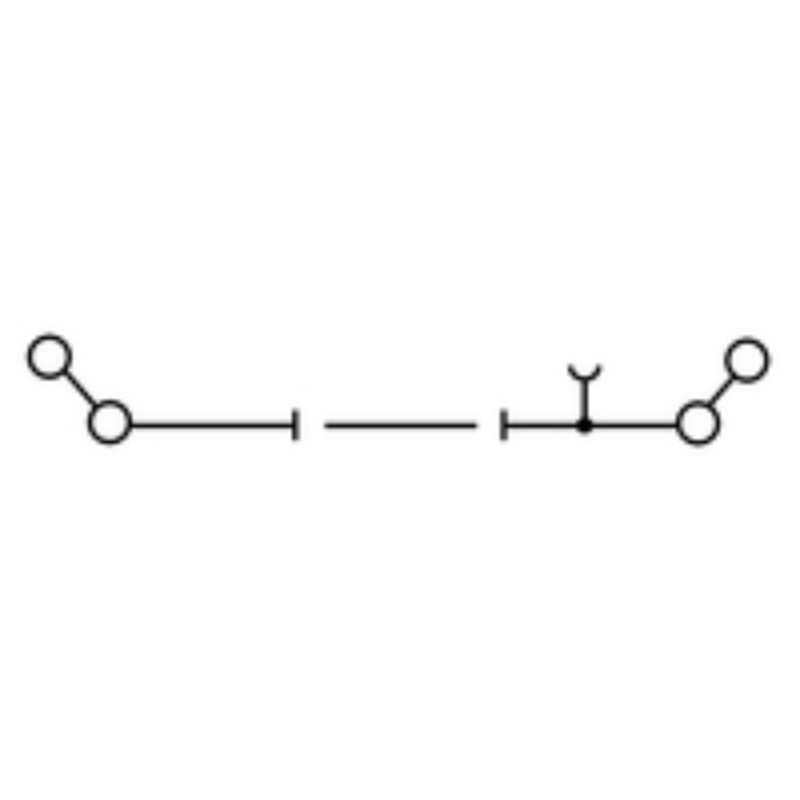

Version Test-disconnect terminal, Screw connection, 4 mm², 500 V, 27 A, Pivoting, dark beige
Order No. 1905090000
Type WTR 4/ZZ
GTIN (EAN) 4032248523344
Qty. 50 pc(s).

Depth 53 mm
Depth (inches) 2.087 inch
Depth including DIN rail 53.5 mm
Height 70 mm
Height (inches) 2.756 inch
Width 6.1 mm
Width (inches) 0.24 inch
Net weight 15.22 g

Order No.: 2796780000 Type: WFS 4 DI
Order No.: 7910180000 Type: WTR 4
Order No.: 7910190000 Type: WTR 4 BL
Order No.: 1474620000 Type: WTR 4 GR
Order No.: 7910210000 Type: WTR 4 STB
Order No.:2436390000 Type: WTR 4 STB/O.TNHE
