Numerous national and international approvals and qualifications in accordance with a variety of application standards make the W-series a universal connection solution, especially in harsh conditions. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Whatever your requirements for the panel: our screw connection system with patented clamping yoke technology ensures the ultimate in contact safety. You can use both screw-in and plug-in cross-connections for potential distribution. Two conductors of the same diameter can also be connected in a single terminal point in accordance with UL1059. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Weidmulle‘s W series terminal blocks save space， Small “W-Compact” size saves space in the panel. Two conductors can be connected for each contact point.

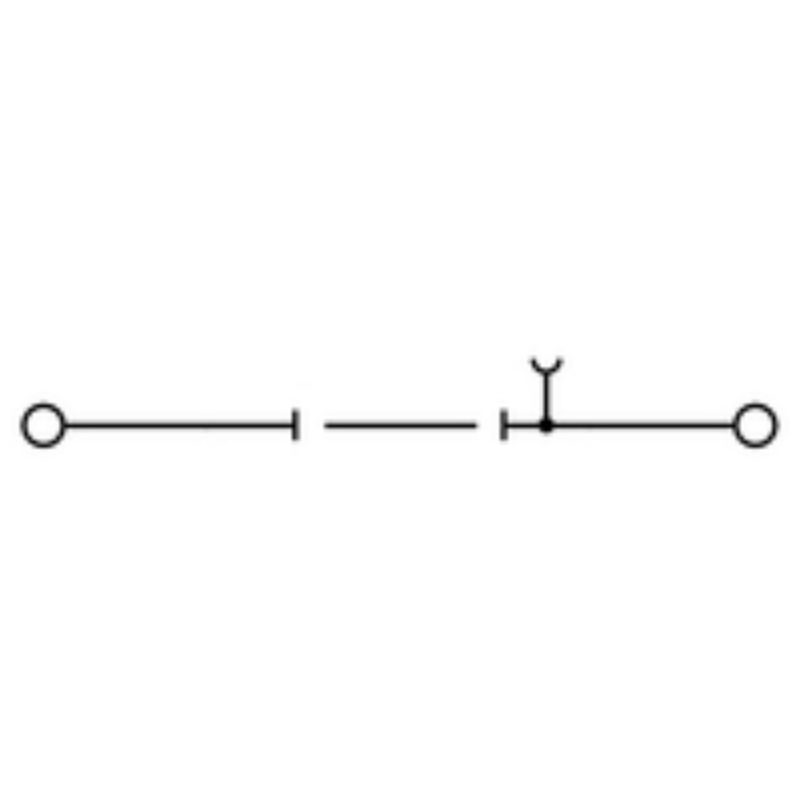

Version	Test-disconnect terminal, Screw connection, 4 mm², 500 V, 32 A, Pivoting, dark beige
Order No.	7910180000
Type	WTR 4
GTIN (EAN)	4008190576882
Qty.	50 pc(s).



Depth	48 mm
Depth (inches)	1.89 inch
Depth including DIN rail	49 mm
Height	60 mm
Height (inches)	2.362 inch
Width	6.1 mm
Width (inches)	0.24 inch
Net weight	11.554 g



Order No.: 2796780000	Type: WFS 4 DI
Order No.: 7910190000	Type: WTR 4 BL
Order No.: 1474620000	Type: WTR 4 GR
Order No.: 7910210000	Type: WTR 4 STB
Order No.: 7910220000	Type: WTR 4 STB BL
Order No.:2436390000	Type: WTR 4 STB/O.TNHE
