Reliable timing relays for plant and building automation Timing relays play an important role in many areas of plant and building automation. They are always used when switch-on or switch-off processes are to be delayed or when short pulses are to be extended. They are used, for example, to avoid errors during short switching cycles that cannot be reliably detected by downstream control components. Timing relays are also a simple way of integrating timer functions into a system without PLC, or implementing them without programming effort. The Klippon® Relay portfolio provides you with relays for various timing functions such as on-delay, off delay, clock generator and star-delta relays. We also offer timing relays for universal applications in factory and building automation as well as multifunction timing relays with several timer functions. Our timing relays are available as a classic building automation design, a compact 6.4 mm version and with wide-range multi-voltage input. Our timing relays have the current approvals according to DNVGL, EAC, and cULus and can therefore be used internationally.

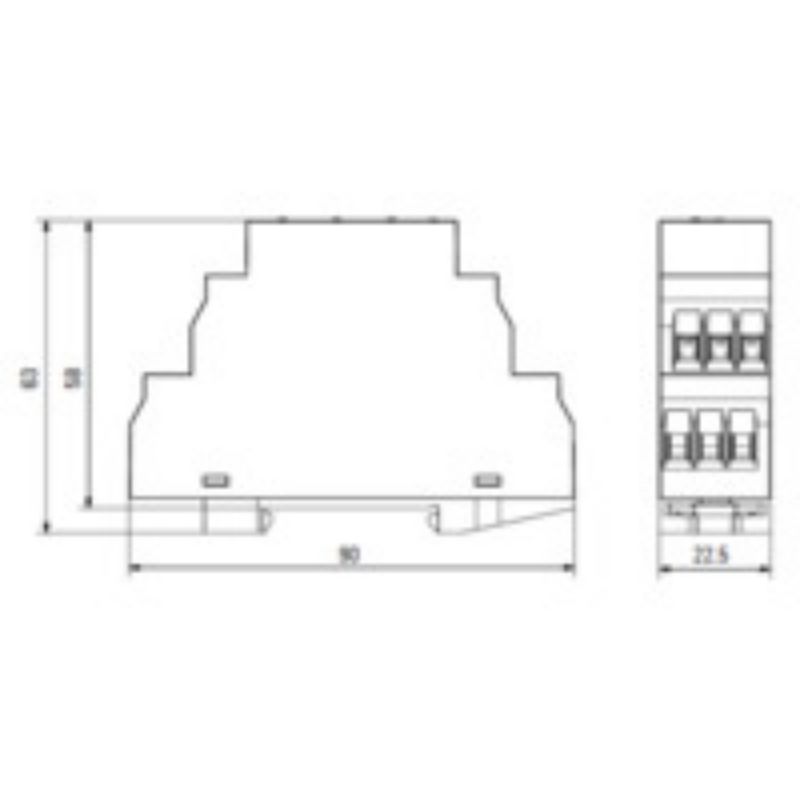

Height	63 mm
Height (inches)	2.48 inch
Width	22.5 mm
Width (inches)	0.886 inch
Length	90 mm
Length (inches)	3.543 inch
Net weight	81.8 g



Version	WTR Timer, On-delay timing relay, Number of contacts: 2, CO contact, AgNi 90/10, Rated control voltage: 24…230V UC (18…264V AC, 20…370V DC), Continuous current: 8 A, Screw connection
Order No.	1228950000
Type	WTR 24~230VUC
GTIN (EAN)	4050118127492
Qty.	1 pc(s).
Local product	Only available in certain countries



Order No.	Type
1228950000	WTR 24~230VUC
1228960000	WTR 110VDC
1415350000	WTR 110VDC-A
1228970000	WTR 220VDC
1415370000	WTR 220VDC-A
1228980000	WTR 230VAC
1415380000	WTR 230VAC-A
