Numerous national and international approvals and qualifications in accordance with a variety of application standards make the W-series a universal connection solution, especially in harsh conditions. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Whatever your requirements for the panel: our screw connection system with patented clamping yoke technology ensures the ultimate in contact safety. You can use both screw-in and plug-in cross-connections for potential distribution. Two conductors of the same diameter can also be connected in a single terminal point in accordance with UL1059. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Weidmulle‘s W series terminal blocks save space， Small “W-Compact” size saves space in the panel. Two conductors can be connected for each contact point.

Version	W-Series, Distribution block, Rated cross-section: Screw connection, Terminal rail / mounting plate
Order No.	1561750000

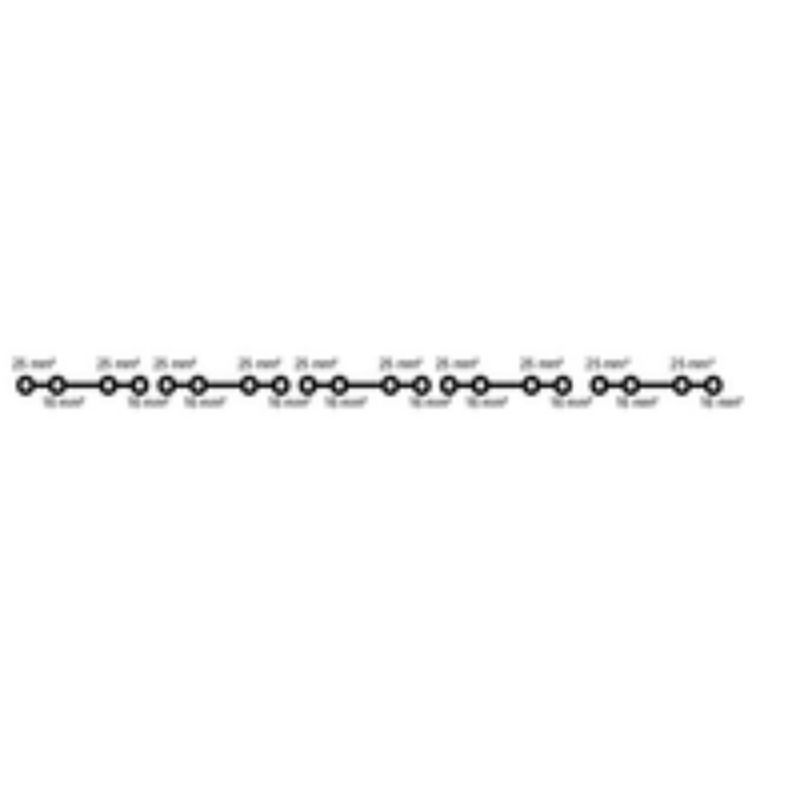

Type	WPD 501 2X25/2X16 5XGY
GTIN (EAN)	4050118366556
Qty.	1 pc(s).



Depth	49.3 mm
Depth (inches)	1.941 inch
Height	55.7 mm
Height (inches)	2.193 inch
Width	88.8 mm
Width (inches)	3.496 inch
Net weight	342 g



Order No.:1561100000	Type: WPD 101 2X25/2X16 BK
Order No.: 1560670000	Type: WPD 101 2X25/2X16 BL
Order No.: 1561120000	Type: WPD 101 2X25/2X16 BN
Order No.: 1560650000	Type: WPD 101 2X25/2X16 GN
Order No.: 2731260000	Type: WPD 201 4X25/4X16 BK
Order No.: 2731230000	Type: WPD 201 4X25/4X16 BL
Order No.: 2731250000	Type: WPD 201 4X25/4X16 BN
Order No.: 2731240000	Type: WPD 201 4X25/4X16 GN
Order No.: 2731220000	Type: WPD 201 4X25/4X16 GY
Order No.: 1561130000	Type: WPD 301 2X25/2X16 3XGY
Order No.:1561800000	Type:WPD 401 2X25/2X16 4XGY
Order No.:1561750000	Type:WPD 501 2X25/2X16 5XGY
