Numerous national and international approvals and qualifications in accordance with a variety of application standards make the W-series a universal connection solution, especially in harsh conditions. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Whatever your requirements for the panel: our screw connection system with patented clamping yoke technology ensures the ultimate in contact safety. You can use both screw-in and plug-in cross-connections for potential distribution. Two conductors of the same diameter can also be connected in a single terminal point in accordance with UL1059. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Weidmulle‘s W series terminal blocks save space， Small “W-Compact” size saves space in the panel. Two conductors can be connected for each contact point.

Version	W-Series, Distribution block, Rated cross-section: Screw connection, Terminal rail / mounting plate
Order No.	1562190000

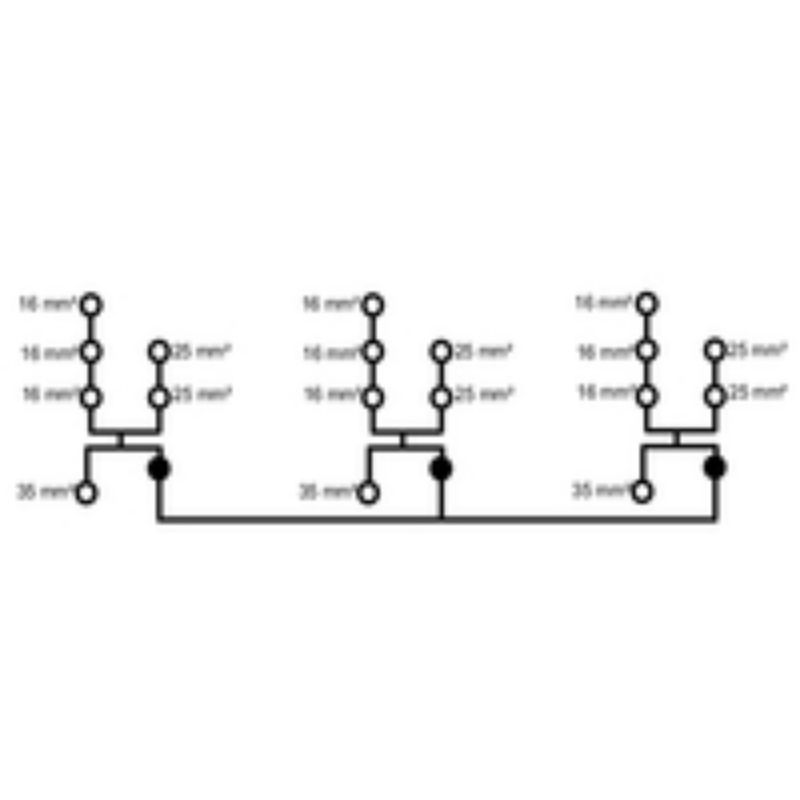

Type	WPD 305 3X35/6X25+9X16 3XGY
GTIN (EAN)	4050118385274
Qty.	1 pc(s).



Depth	53.7 mm
Depth (inches)	2.114 inch
Height	70 mm
Height (inches)	2.756 inch
Width	106.8 mm
Width (inches)	4.205 inch
Net weight	434 g



Order No.	Type
2725410000	WPD 105 1X35+1X16/2X25+3X16 BK
2518540000	WPD 105 1X35+1X16/2X25+3X16 BL
2725310000	WPD 105 1X35+1X16/2X25+3X16 RD
2725420000	WPD 205 2X35/4X25+6X16 2XBK
2519470000	WPD 205 2X35/4X25+6X16 2XBL
1562180000	WPD 205 2X35/4X25+6X16 2XGY
2725320000	WPD 205 2X35/4X25+6X16 2XRD
2725430000	WPD 305 3X35/6X25+9X16 3XBK
2521770000	WPD 305 3X35/6X25+9X16 3XBL
1562190000	WPD 305 3X35/6X25+9X16 3XGY
2725330000	WPD 305 3X35/6X25+9X16 3XRD
