Numerous national and international approvals and qualifications in accordance with a variety of application standards make the W-series a universal connection solution, especially in harsh conditions. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Whatever your requirements for the panel: our screw connection system with patented clamping yoke technology ensures the ultimate in contact safety. You can use both screw-in and plug-in cross-connections for potential distribution. Two conductors of the same diameter can also be connected in a single terminal point in accordance with UL1059. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Weidmulle‘s W series terminal blocks save space， Small “W-Compact” size saves space in the panel. Two conductors can be connected for each contact point.

Version	W-Series, Distribution block, Rated cross-section: Screw connection, Terminal rail / mounting plate
Order No.	1562160000

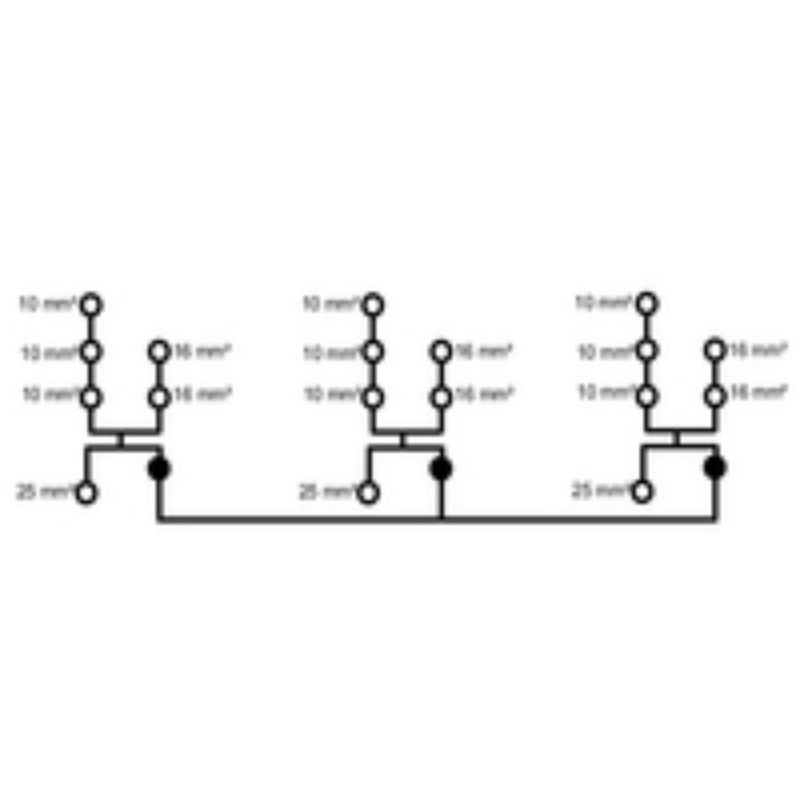

Type	WPD 304 3X25/6X16+9X10 3XGY
GTIN (EAN)	4050118385243
Qty.	1 pc(s).



Depth	49 mm
Depth (inches)	1.929 inch
Height	68 mm
Height (inches)	2.677 inch
Width	94.5 mm
Width (inches)	3.72 inch
Net weight	305 g



Order No.	Type
2725360000	WPD 104 1X25+1X16/2X16+3X10 BK
2518250000	WPD 104 1X25+1X16/2X16+3X10 BL
2725260000	WPD 104 1X25+1X16/2X16+3X10 RD
2725390000	WPD 204 2X25/4X16+6X10 2XBK
2518330000	WPD 204 2X25/4X16+6X10 2XBL
1562150000	WPD 204 2X25/4X16+6X10 2XGY
2725290000	WPD 204 2X25/4X16+6X10 2XRD
2725400000	WPD 304 3X25/6X16+9X10 3XBK
2518340000	WPD 304 3X25/6X16+9X10 3XBL
1562160000	WPD 304 3X25/6X16+9X10 3XGY
2725300000	WPD 304 3X25/6X16+9X10 3XRD
