Numerous national and international approvals and qualifications in accordance with a variety of application standards make the W-series a universal connection solution, especially in harsh conditions. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Whatever your requirements for the panel: our screw connection system with patented clamping yoke technology ensures the ultimate in contact safety. You can use both screw-in and plug-in cross-connections for potential distribution. Two conductors of the same diameter can also be connected in a single terminal point in accordance with UL1059. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Weidmulle‘s W series terminal blocks save space， Small “W-Compact” size saves space in the panel. Two conductors can be connected for each contact point.

Version	W-Series, Distribution block, Rated cross-section: Screw connection, Terminal rail / mounting plate
Order No.	1561740000

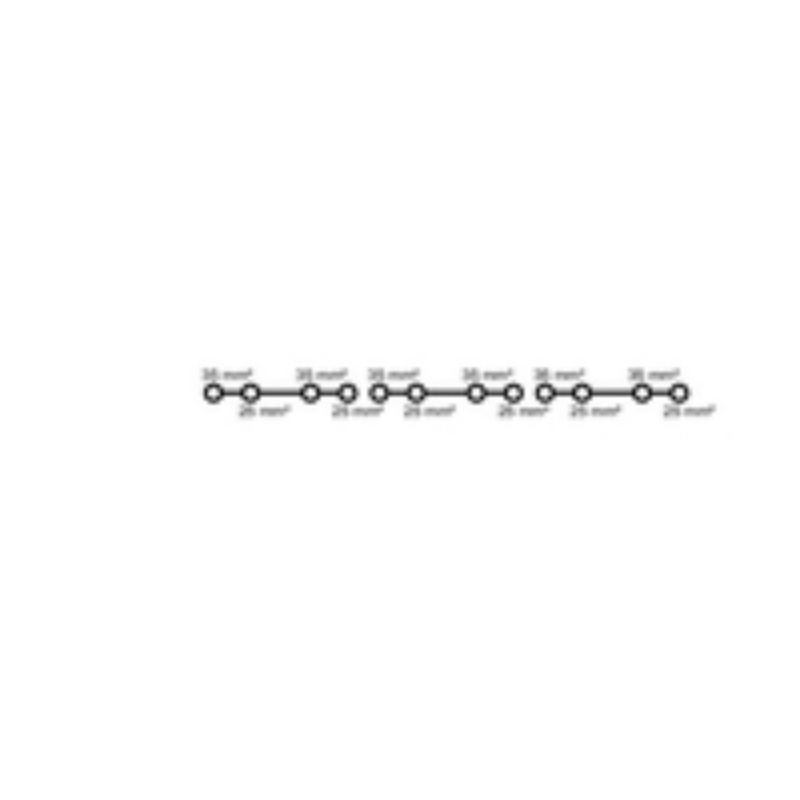

Type	WPD 302 2X35/2X25 3XGY
GTIN (EAN)	4050118366914
Qty.	2 pc(s).



Depth	49.3 mm
Depth (inches)	1.941 inch
Height	55.4 mm
Height (inches)	2.181 inch
Width	66.6 mm
Width (inches)	2.622 inch
Net weight	272 g



Order No.:1561630000	Type: Weidmuller WPD 102 2X35/2X25 BK
Order No.: 1561640000	Type: Weidmuller WPD 102 2X35/2X25 BL
Order No.: 1561650000	Type: Weidmuller WPD 102 2X35/2X25 BN
Order No.: 1561670000	Type: Weidmuller WPD 102 2X35/2X25 GN
Order No.: 1561690000	Type: WPD 202 4X35/4X25 BK
Order No.: 1561700000	Type: WPD 202 4X35/4X25 BL
Order No.: 1561720000	Type: WPD 202 4X35/4X25 BN
Order No.: 1561620000	Type: WPD 202 4X35/4X25 GN
Order No.:1561730000	Type: WPD 202 4X35/4X25 GY
Order No.: 1561740000	Type: WPD 302 2X35/2X25 3XGY
