Numerous national and international approvals and qualifications in accordance with a variety of application standards make the W-series a universal connection solution, especially in harsh conditions. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Whatever your requirements for the panel: our screw connection system with patented clamping yoke technology ensures the ultimate in contact safety. You can use both screw-in and plug-in cross-connections for potential distribution. Two conductors of the same diameter can also be connected in a single terminal point in accordance with UL1059. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Weidmulle‘s W series terminal blocks save space， Small “W-Compact” size saves space in the panel. Two conductors can be connected for each contact point.

Version	W-Series, Distribution block, Rated cross-section: Screw connection, Terminal rail / mounting plate
Order No.	1562220000

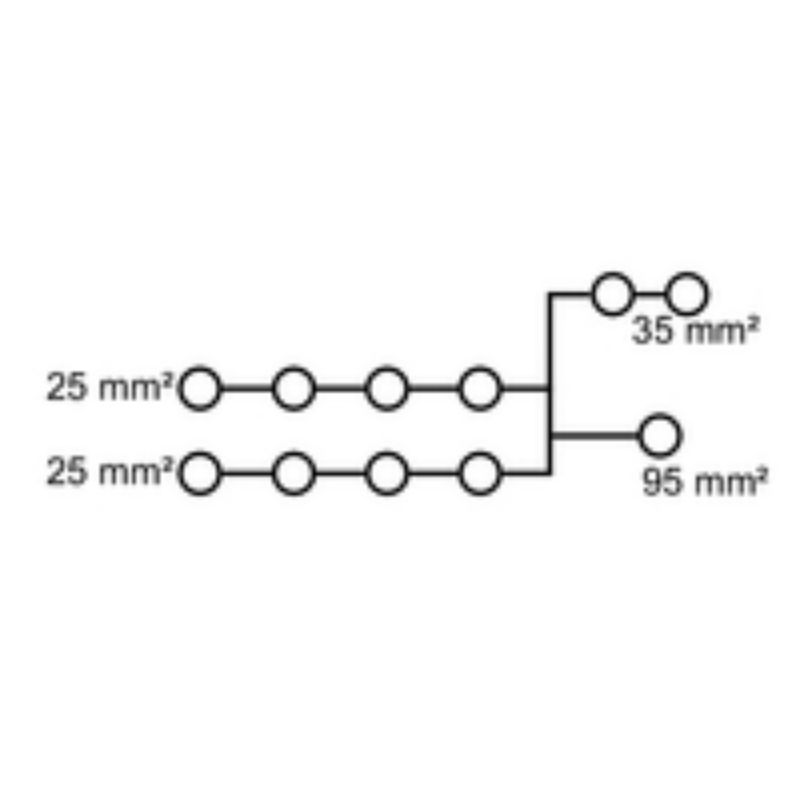

Type	WPD 107 1X95/2X35+8X25 GY
GTIN (EAN)	4050118385298
Qty.	1 pc(s).



Depth	54.5 mm
Depth (inches)	2.146 inch
Height	73 mm
Height (inches)	2.874 inch
Width	51 mm
Width (inches)	2.008 inch
Net weight	211 g



2725450000	WPD 107 1X95/2X35+8X25 BK
2521730000	WPD 107 1X95/2X35+8X25 BL
2725350000	WPD 107 1X95/2X35+8X25 RD
2730320000	WPD 111 1X95/4X35 BK
2603800000	WPD 111 1X95/4X35 BL
2603790000	WPD 111 1X95/4X35 GY
2730310000	WPD 111 1X95/4X35 RD
