Weidmuller WFF 70 1028400000 Bolt-type Screw Terminals

The comprehensive range of stud terminals ensures secure connections for all power transmission applications. Connections range from 10 mm² to 300mm². The connectors are attached to the threaded pins using crimped cable lugs and each connection is secured by tightening the hexagon nut. Stud terminals with threaded pins from M5 to M16 can be used according to the wire cross-section. Weidmuller WFF 70 is feed-through terminal, rated cross-section: 70 mm², threaded stud connection, order no.is 1028400000.

Products Details

Numerous national and international approvals and qualifications in accordance with a variety of application standards make the W-series a universal connection solution, especially in harsh conditions. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Whatever your requirements for the panel: our screw connection system with patented clamping yoke technology ensures the ultimate in contact safety. You can use both screw-in and plug-in cross-connections for potential distribution. Two conductors of the same diameter can also be connected in a single terminal point in accordance with UL1059. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Weidmulles W series terminal blocks save spaceSmall “W-Compact” size saves space in the panel. Two conductors can be connected for each contact point.

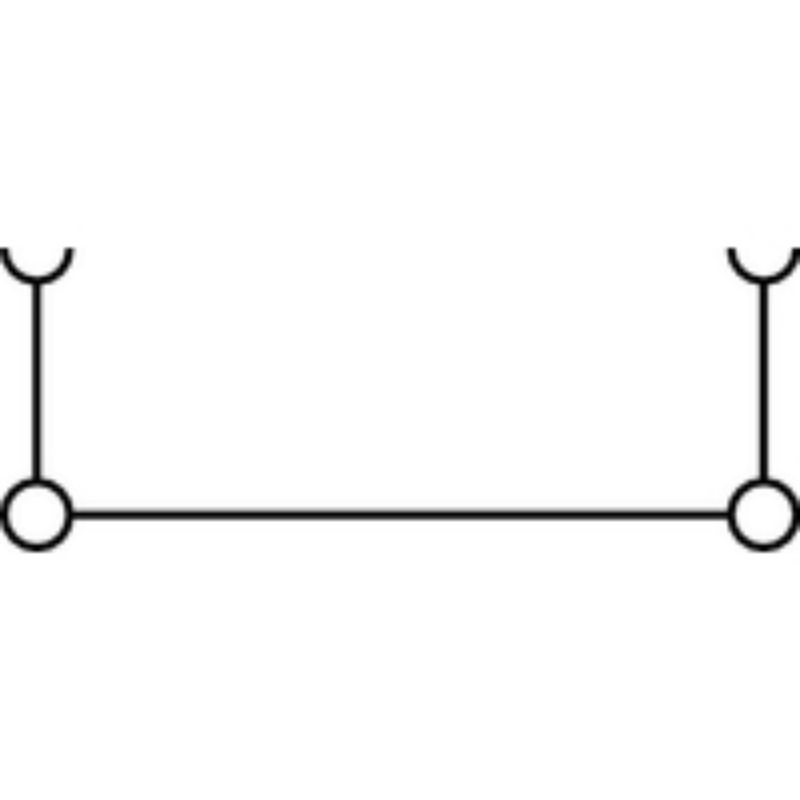

Version Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 70 mm², Threaded stud connection
Order No. 1028400000
Type WFF 70
GTIN (EAN) 4008190083311
Qty. 10 pc(s).

Depth 61 mm
Depth (inches) 2.402 inch
Depth including DIN rail 69.5 mm
Height 132 mm
Height (inches) 5.197 inch
Width 31.8 mm
Width (inches) 1.252 inch
Net weight 157.464 g

Order No. Type
1028480000 WFF 70 BL
1049230000 WFF 70 NFF
1029400000 WFF 70/AH
