Numerous national and international approvals and qualifications in accordance with a variety of application standards make the W-series a universal connection solution, especially in harsh conditions. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Whatever your requirements for the panel: our screw connection system with patented clamping yoke technology ensures the ultimate in contact safety. You can use both screw-in and plug-in cross-connections for potential distribution. Two conductors of the same diameter can also be connected in a single terminal point in accordance with UL1059. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Weidmulle‘s W series terminal blocks save space， Small “W-Compact” size saves space in the panel. Two conductors can be connected for each contact point.

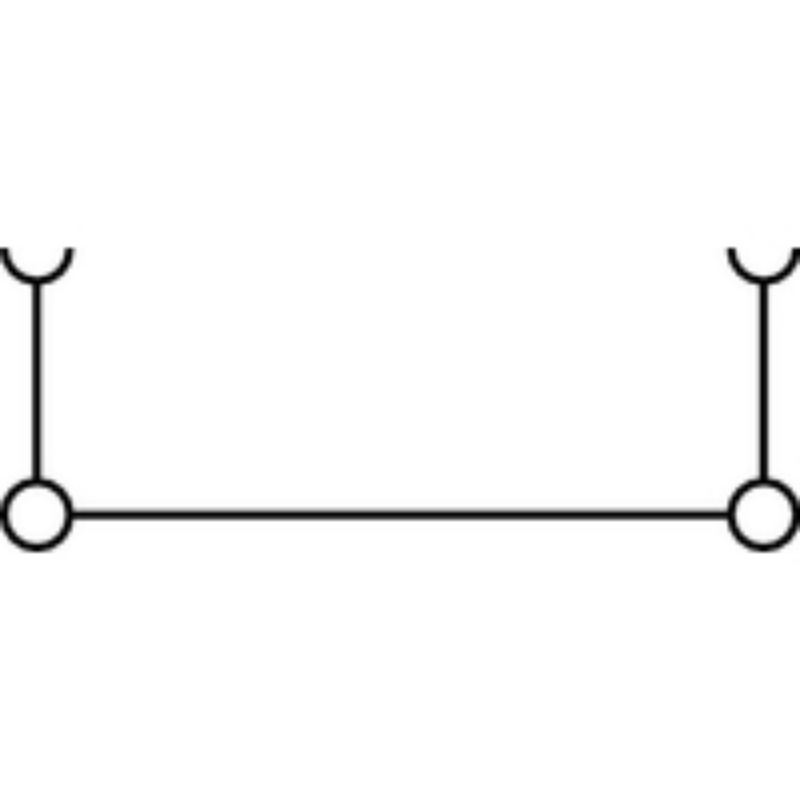

Version	Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 300 mm², Threaded stud connection
Order No.	1029700000
Type	WFF 300/AH
GTIN (EAN)	4008190088347
Qty.	2 pc(s).



Depth	85.5 mm
Depth (inches)	3.366 inch
Depth including DIN rail	94 mm
Height	163 mm
Height (inches)	6.417 inch
Width	55 mm
Width (inches)	2.165 inch
Net weight	592.51 g



Order No.	Type
1028700000	WFF 300
1878650000	WFF 300/AH O.PS
