Weidmuller WDU 16 1020400000 Feed-through Terminal

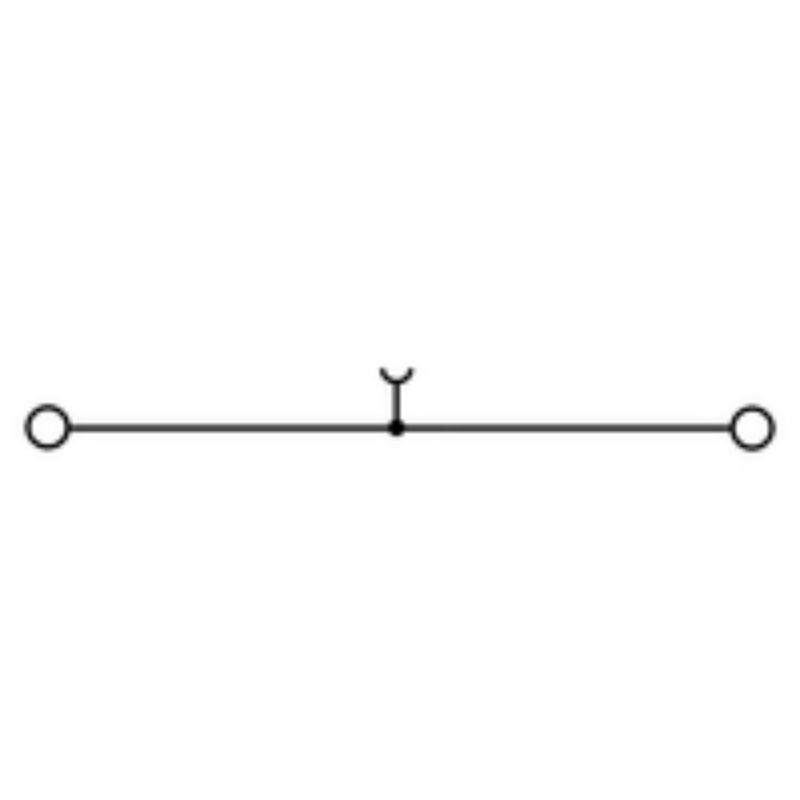

To feed through power, signal, and data is the classical requirement in electrical engineering and panel building. The insulating material, the connection system and the design of the terminal blocks are the differentiating features. A feed-through terminal block is suitable for joining and/or connecting one or more conductors. They could have one or more connection levels that are on the same potential or insulated against one another. Weidmuller WDU 16 is feed-through terminal, screw connection, 16 mm², 1000 V, 76 A, dark beige,order no.is 1020400000.

Products Details

Whatever your requirements for the panel: our screw connection system with patented clamping yoke technology ensures the ultimate in contact safety. You can use both screw-in and plug-in cross-connections for potential distribution.Two conductors of the same diameter can also be connected in a single terminal point in accordance with UL1059.The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Space saving, Small W-Compact" size saves space in the panel,two conductors can be connect for each contact point Our promise The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimises operational safety. Klippon@ Connect provides a proven response to a range of different requirements.
Version Feed-through terminal, Screw connection, 16 mm², 1000 V, 76 A, dark beige
Order No. 1020400000
Type WDU 16
GTIN (EAN) 4008190127794
Qty. 50 pc(s)
Depth 62.5 mm
Depth (inches) 2.461 inch
Depth including DIN rail 63 mm
Height 60 mm
Height (inches) 2.362 inch
Width 11.9 mm
Width (inches) 0.469 inch
Net weight 29.46 g
Order No.: 1020480000 Type: WDU 16 BL
Order No.:1393390000  Type:WDU 16 IR
Order No.:1833400000  Type: WDU 16 RT
Order No.: 1833420000  Type: WDU 16 SW
