Whatever your requirements for the panel: our screw connection system with patented clamping yoke technology ensures the ultimate in contact safety. You can use both screw-in and plug-in cross-connections for potential distribution.Two conductors of the same diameter can also be connected in a single terminal point in accordance with UL1059.The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Space saving, Small W-Compact" size saves space in the panel，two conductors can be connect for each contact point Our promise The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimises operational safety. Klippon@ Connect provides a proven response to a range of different requirements.

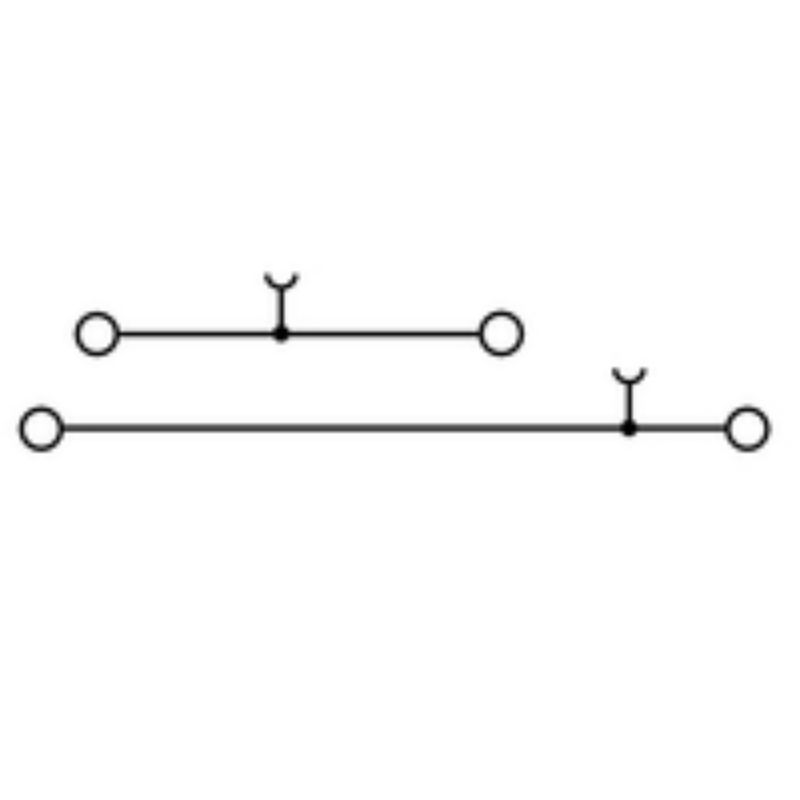

Version	Double-tier terminal, Screw connection, 2.5 mm², 800 V, 24 A, dark beige
Order No.	1041600000
Type	WDK 2.5N
GTIN (EAN)	4032248138807
Qty.	50 pc(s)

Depth	62 mm
Depth (inches)	2.441 inch
Depth including DIN rail	62.45 mm
Height	61 mm
Height (inches)	2.402 inch
Width	5.1 mm
Width (inches)	0.201 inch
Net weight	11.057 g

Order No.: 1041680000	Type: WDK 2.5N BL
Order No.:1041650000	Type:WDK 2.5N DU-PE
Order No.:1041610000	Type: WDK 2.5N V
Order No.: 2515410000	Type: WDK 2.5N V SW
