Whatever your requirements for the panel: our screw connection system with patented clamping yoke technology ensures the ultimate in contact safety. You can use both screw-in and plug-in cross-connections for potential distribution.Two conductors of the same diameter can also be connected in a single terminal point in accordance with UL1059.The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-Series is still setting standards. Space saving, Small W-Compact" size saves space in the panel，two conductors can be connect for each contact point Our promise The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimises operational safety. Klippon@ Connect provides a proven response to a range of different requirements.

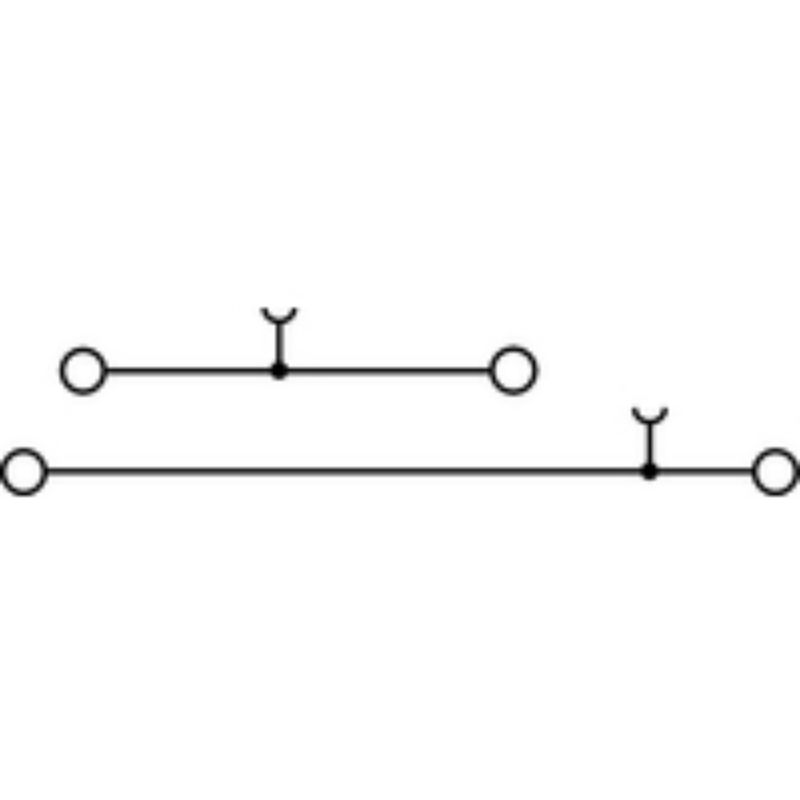

Version	Feed-through terminal, Double-tier terminal, Screw connection, 2.5 mm², 400 V, 24 A, dark beige
Order No.	1021500000
Type	WDK 2.5
GTIN (EAN)	4008190169527
Qty.	100 pc(s).

Depth including DIN rail	63 mm
Height	69.5 mm
Height (inches)	2.736 inch
Width	5.1 mm
Width (inches)	0.201 inch
Net weight	12.03 g

Order No.: 1021580000	Type: WDK 2.5 BL
Order No.:1255280000	Type:WDK 2.5 GR
Order No.:1021560000	Type: WDK 2.5 OR
Order No.: 1041100000	Type: WDK 2.5 ZQV
