Weidmuller UR20-4AO-UI-16 1315680000 Remote I/O Module

Weidmuller UR20-4AO-UI-16 1315680000 is Remote I/O module, IP20, Analog signals, Output, 4-channel, Current/Voltage.

Products Details

  For future-oriented Industry 4.0 inside and outside the electrical cabinet, Weidmuller's flexible remote I/O systems offer automation at it's best. u-remote from Weidmuller forms a reliable and efficient interface between the control and field levels. The I/O system impresses with its simple handling, high degree of flexibility and modularity as well as outstanding performance. The two I/O systems UR20 and UR67 cover all common signals and fieldbus/network protocols in automation technology.
Depth 76 mm
Depth (inches) 2.992 inch
Height 120 mm
Height (inches) 4.724 inch
Width 11.5 mm
Width (inches) 0.453 inch
Mounting dimension - height 128 mm
Net weight 87 g

Version Remote I/O module, IP20, Analog signals, Output, 4-channel, Current/Voltage
Order No. 1315680000
Type UR20-4AO-UI-16
GTIN (EAN) 4050118118803
Qty. 1 pc(s).

Order No. Type
1315680000 UR20-4AO-UI-16
2453880000 UR20-4AO-UI-16-M
1315730000 UR20-4AO-UI-16-DIAG
2453870000 UR20-4AO-UI-16-M-DIAG
2705630000 UR20-2AO-UI-16
2566100000 UR20-2AO-UI-16-DIAG
2566970000 UR20-2AO-UI-ISO-16-DIAG

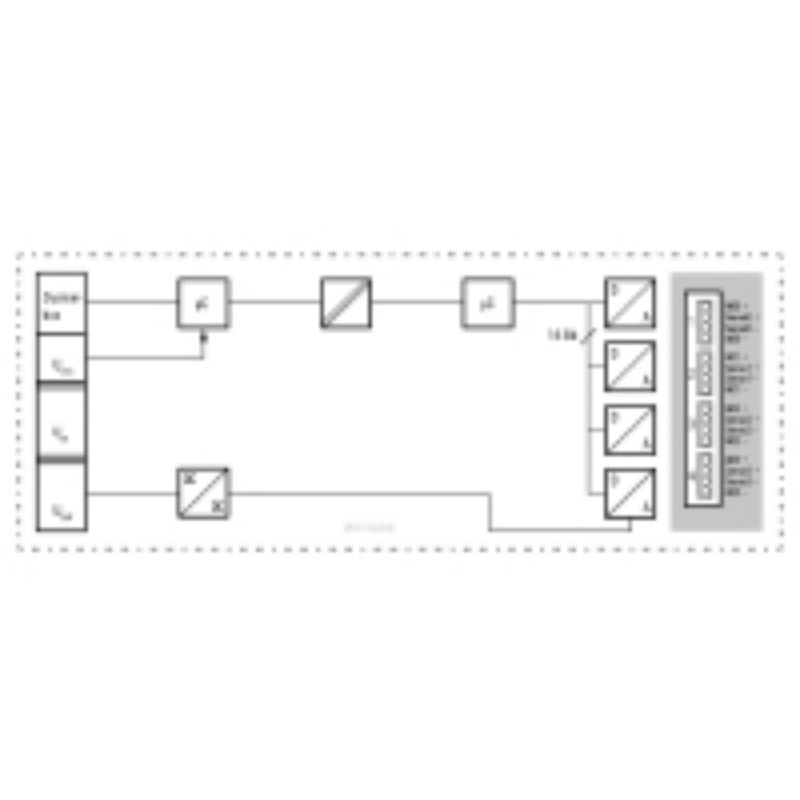

     Weidmuller u-remote – our innovative remote I/O concept with IP 20 which focuses purely on user benefits: tailored planning, faster installation, safer start-up, no more downtime. For considerably improved performance and greater productivity. 2- or 4-wire connection; 16-bit resolution; 4 outputs The analogue output module controls up to 4 analogue actuators with +/-10 V, +/-5 V, 0...10 V, 0...5 V, 2...10 V, 1...5 V, 0...20 mA or 4...20 mA with an accuracy of 0.05% of the measurement-range end value. An actuator with 2-, 3- or 4-wire technology can be connected to each plug-in connector. The measurement range is defined channel-by-channel using parameterisation. In addition, each channel has its own status LED. The outputs are supplied from the output current path (UOUT).
