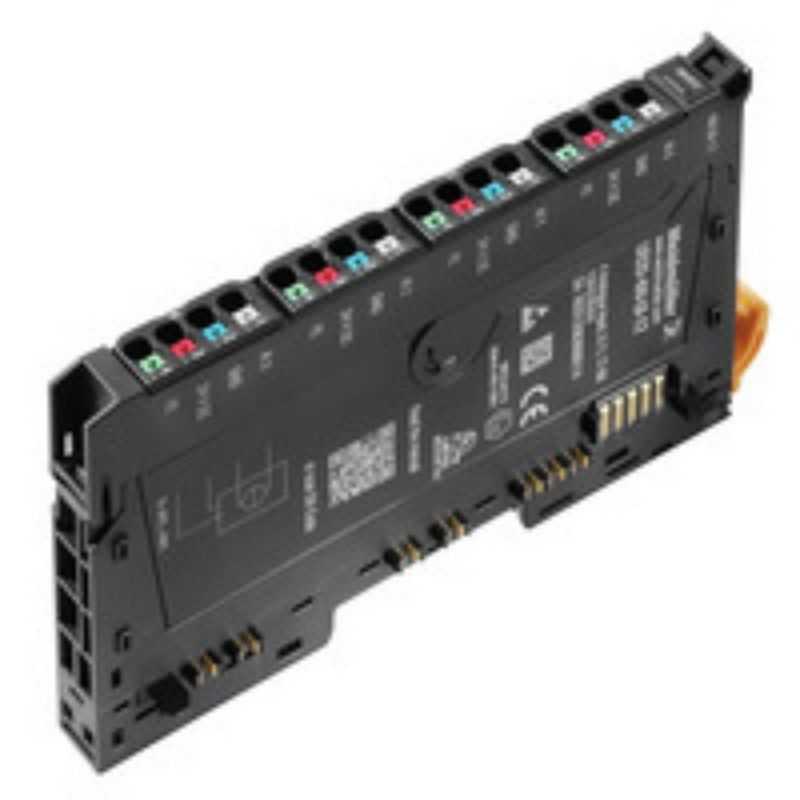

Weidmuller UR20-4AI-UI-12 1394390000 Remote I/O Module

Weidmuller UR20-4AI-UI-12 1394390000 is Remote I/O module, IP20, 4-channel, Analog signals, Input, Current/Voltage, 12 Bit.

Products Details

  For future-oriented Industry 4.0 inside and outside the electrical cabinet, Weidmuller's flexible remote I/O systems offer automation at it's best. u-remote from Weidmuller forms a reliable and efficient interface between the control and field levels. The I/O system impresses with its simple handling, high degree of flexibility and modularity as well as outstanding performance. The two I/O systems UR20 and UR67 cover all common signals and fieldbus/network protocols in automation technology.
Depth 76 mm
Depth (inches) 2.992 inch
Height 120 mm
Height (inches) 4.724 inch
Width 11.5 mm
Width (inches) 0.453 inch
Mounting dimension - height 128 mm
Net weight 87 g

Version Remote I/O module, IP20, 4-channel, Analog signals, Input, Current/Voltage, 12 Bit
Order No. 1394390000
Type UR20-4AI-UI-12
GTIN (EAN) 4050118195200
Qty. 1 pc(s).

Order No. Type
1315620000 UR20-4AI-UI-16
1315690000 UR20-4AI-UI-16-DIAG
1506920000 UR20-4AI-UI-16-HD
1506910000 UR20-4AI-UI-16-DIAG-HD
1394390000 UR20-4AI-UI-12
2705620000 UR20-2AI-UI-16
2566090000 UR20-2AI-UI-16-DIAG
2617520000 UR20-4AI-I-HART-16-DIAG
1993880000 UR20-4AI-UI-DIF-16-DIAG
2544660000 UR20-4AI-UI-DIF-32-DIAG
2566960000 UR20-4AI-UI-ISO-16-DIAG
1315650000 UR20-8AI-I-16-HD
1315720000 UR20-8AI-I-16-DIAG-HD
1315670000 UR20-8AI-I-PLC-INT
     Inputs can be parameterised; up to 3-wire + FE; accuracy 0.1% FSR Analogue input modules of the u-remote system are available in many variants with different resolutions and wiring solutions. Variants are available with 12- and 16-bit resolution, which record up to 4 analogue sensors with +/-10 V, +/-5 V, 0...10 V, 0...5 V, 2...10 V, 1...5 V, 0...20 mA or 4...20 mA with maximum accuracy. Each plug-in connector can optionally connect sensors with 2- or 3-wire technology. The parameters for the measurement range can be individually set for each channel. In addition, each channel has its own status LED. A special variant for Weidmüller interface units enables current measurements with 16-bit resolution and maximum accuracy for 8 sensors at a time (0...20 mA or 4...20 mA). The module electronics supply the connected sensors with power from the input current path (UIN).
