For future-oriented Industry 4.0 inside and outside the electrical cabinet, Weidmuller's flexible remote I/O systems offer automation at it's best. u-remote from Weidmuller forms a reliable and efficient interface between the control and field levels. The I/O system impresses with its simple handling, high degree of flexibility and modularity as well as outstanding performance. The two I/O systems UR20 and UR67 cover all common signals and fieldbus/network protocols in automation technology.

Depth	76 mm
Depth (inches)	2.992 inch
Height	120 mm
Height (inches)	4.724 inch
Width	11.5 mm
Width (inches)	0.453 inch
Mounting dimension - height	128 mm
Net weight	83 g

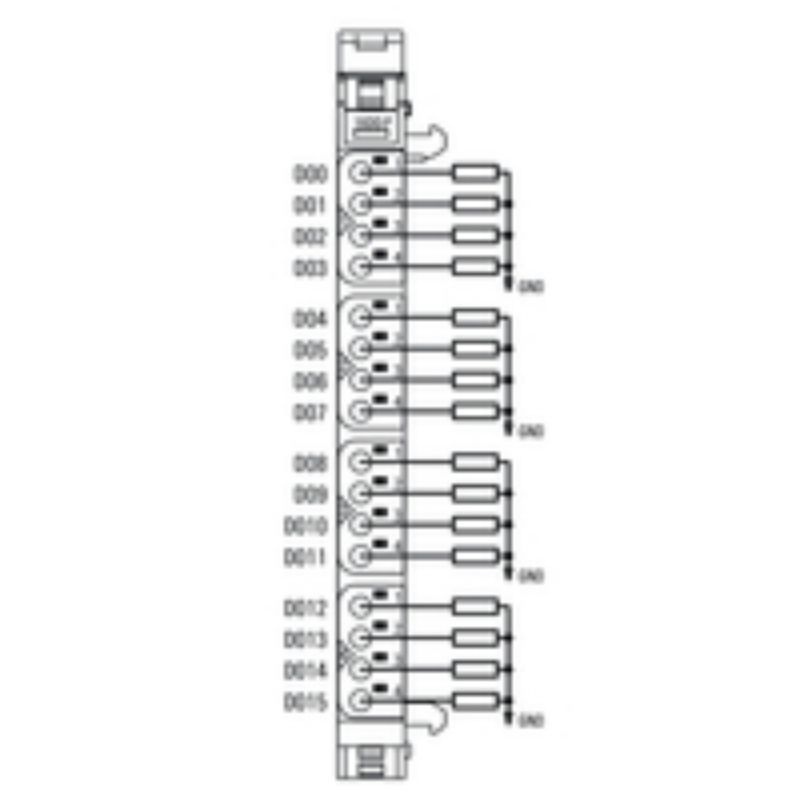

Version	Remote I/O module, IP20, Digital signals, Output, 16-channel
Order No.	1315250000
Type	UR20-16DO-P
GTIN (EAN)	4050118118537
Qty.	1 pc(s).



Order No.	Type
1315220000	UR20-4DO-P
1315230000	UR20-4DO-P-2A
2457250000	UR20-4DO-ISO-4A
1315240000	UR20-8DO-P
1315250000	UR20-16DO-P
1315270000	UR20-16DO-P-PLC-INT
1509830000	UR20-8DO-P-2W-HD
1394420000	UR20-4DO-PN-2A
1315410000	UR20-4DO-N
1315420000	UR20-4DO-N-2A
1315430000	UR20-8DO-N
1315440000	UR20-16DO-N
1315450000	UR20-16DO-N-PLC-INT
1315540000	UR20-4RO-SSR-255
1315550000	UR20-4RO-CO-255

  Digital output modules P- or N-switching; short-circuit-proof; up to 3-wire + FE Digital output modules are available in the following variants: 4 DO, 8 DO with 2- and 3-wire technology, 16 DO with or without PLC interface connection. They are mainly used for the incorporation of decentralised actuators. All outputs are designed for DC-13 actuators acc. to DIN EN 60947-5-1 and IEC 61131-2 specifications. As with the digital input modules, frequencies of up to 1 kHz are possible. Protection of the outputs ensures maximum system safety. This consists of an automatic restart following a short-circuit. Clearly visible LEDs signal the status of the entire module as well as the status of individual channels. In addition to the standard applications of the digital output modules, the range also includes special variants such as the 4RO-SSR module for rapidly switching applications. Fitted with solid state technology, 0.5 A is available here to each output. Furthermore, there is also the 4RO-CO relay module for power-intensive applications. It equipped with four CO contacts, optimised for a switching voltage of 255 V UC and designed for a switching current of 5 A. The module electronics supply the connected actuators from the output current path (UOUT).
