The all-rounders in a terminal block format TERMSERIES relay modules and solid-state relays are real all-rounders in the extensive Klippon® Relay portfolio. The pluggable modules are available in many variants and can be exchanged quickly and easily – they are ideal for use in modular systems. Their large illuminated ejection lever also serves as a status LED with integrated holder for markers, making maintenance easier. TERMSERIES products are particularly space-saving and are available in widths from 6.4 mm. Besides their versatility, they convince through their extensive accessories and unlimited cross-connection possibilities. 1 and 2 CO contacts, 1 NO contact Unique multi-voltage input from 24 to 230 V UC Input voltages from 5 V DC to 230 V UC with coloured marking: AC: red, DC: blue, UC: white Variants with test button Due to high-quality design and no sharp edges no risk of injuries during installation Partition plates for optical separation and reinforcement of insulation

Depth	87.8 mm
Depth (inches)	3.457 inch
Height	90.5 mm
Height (inches)	3.563 inch
Width	6.4 mm
Width (inches)	0.252 inch
Net weight	31.7 g



Order No.	Type
1122880000	TRZ 24VDC 1CO
1122970000	TRZ 24-230VUC 1CO
1122860000	TRZ 5VDC 1CO
1122870000	TRZ 12VDC 1CO
1122890000	TRZ 24VUC 1CO
1122900000	TRZ 48VUC 1CO
1122910000	TRZ 60VUC 1CO
1122940000	TRZ 120VAC RC 1CO
1122920000	TRZ 120VUC 1CO
1122950000	TRZ 230VAC RC 1CO
1122930000	TRZ 230VUC 1CO

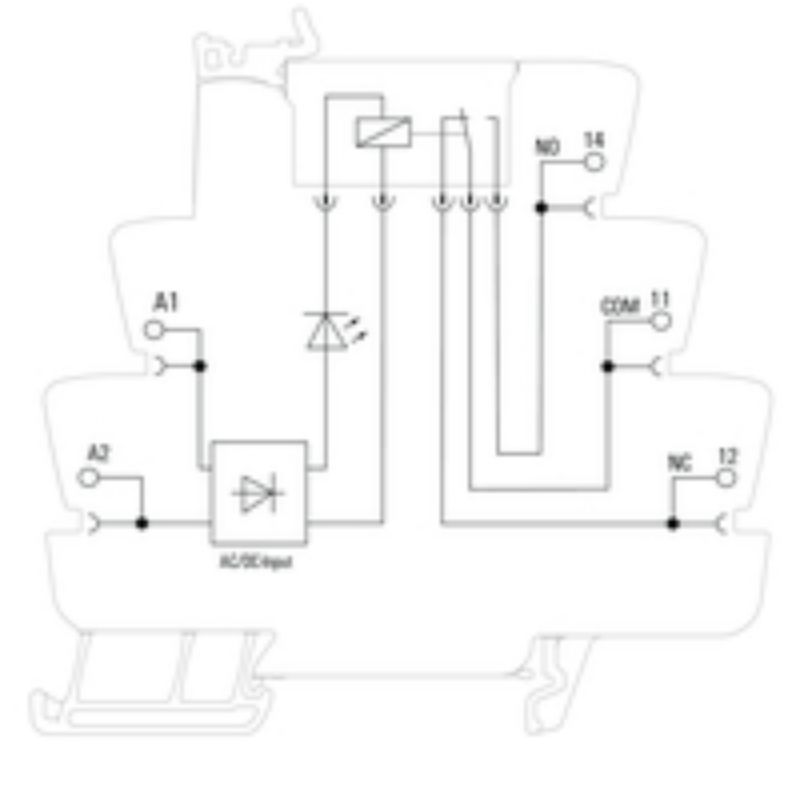

Version	TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi, Rated control voltage: 24 V UC ±10 %, Continuous current: 6 A, Tension-clamp connection, Test button available: No
Order No.	1122890000
Type	TRZ 24VUC 1CO
GTIN (EAN)	4032248904921
Qty.	10 pc(s).
