The all-rounders in a terminal block format TERMSERIES relay modules and solid-state relays are real all-rounders in the extensive Klippon® Relay portfolio. The pluggable modules are available in many variants and can be exchanged quickly and easily – they are ideal for use in modular systems. Their large illuminated ejection lever also serves as a status LED with integrated holder for markers, making maintenance easier. TERMSERIES products are particularly space-saving and are available in widths from 6.4 mm. Besides their versatility, they convince through their extensive accessories and unlimited cross-connection possibilities. 1 and 2 CO contacts, 1 NO contact Unique multi-voltage input from 24 to 230 V UC Input voltages from 5 V DC to 230 V UC with coloured marking: AC: red, DC: blue, UC: white Variants with test button Due to high-quality design and no sharp edges no risk of injuries during installation Partition plates for optical separation and reinforcement of insulation

Depth	87.8 mm
Depth (inches)	3.457 inch
Height	89.6 mm
Height (inches)	3.528 inch
Width	6.4 mm
Width (inches)	0.252 inch
Net weight	33 g

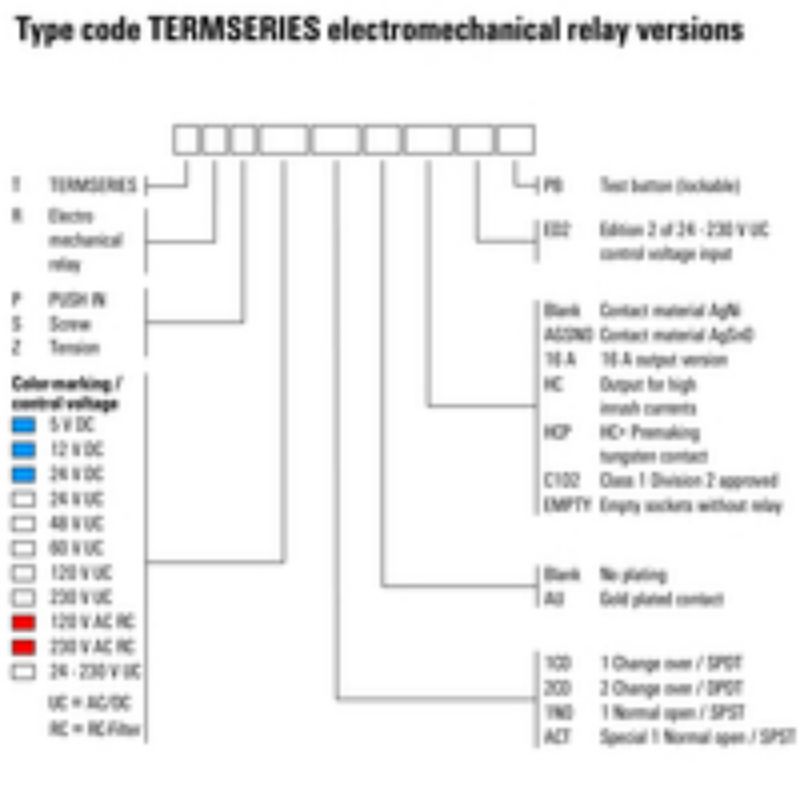

Order No.	Type
1122770000	TRS 24VDC 1CO
2662850000	TRS 24-230VUC 1CO ED2
1122850000	TRS 24-230VUC 1CO
1122740000	TRS 5VDC 1CO
1122750000	TRS 12VDC 1CO
1122780000	TRS 24VUC 1CO
1122790000	TRS 48VUC 1CO
1122800000	TRS 60VUC 1CO
1122830000	TRS 120VAC RC 1CO
1122810000	TRS 120VUC 1CO
1122840000	TRS 230VAC RC 1CO
1122820000	TRS 230VUC 1CO

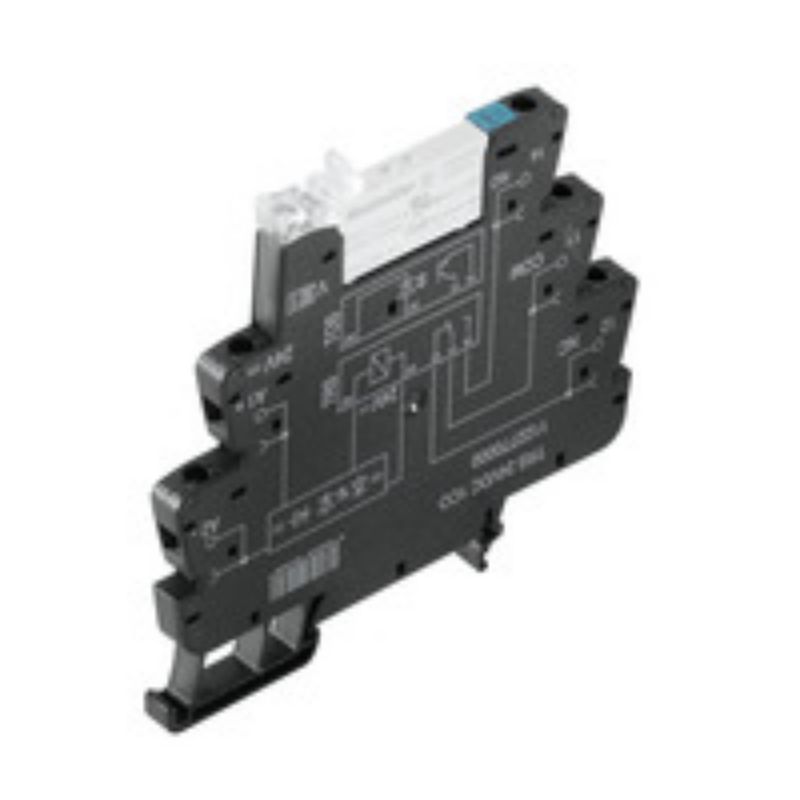

Version	TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi, Rated control voltage: 24 V DC ±20 %, Continuous current: 6 A, Screw connection, Test button available: No
Order No.	1122770000
Type	TRS 24VDC 1CO
GTIN (EAN)	4032248904808
Qty.	10 pc(s).
