Version	Power supply, switch-mode power supply unit, 24 V
Order No.	2466890000
Type	PRO TOP1 480W 24V 20A
GTIN (EAN)	4050118481471
Qty.	1 pc(s).



Depth	125 mm
Depth (inches)	4.921 inch
Height	130 mm
Height (inches)	5.118 inch
Width	68 mm
Width (inches)	2.677 inch
Net weight	1,520 g



Order No.	Type
2568970000	PRO TOP1 72W 24V 3A F
2466850000	PRO TOP1 72W 24V 3A
2466870000	PRO TOP1 120W 24V 5A
2568980000	PRO TOP1 120W 24V 5A F
2466910000	PRO TOP1 120W 12V 10A
2569000000	PRO TOP1 120W 12V 10A F
2466880000	PRO TOP1 240W 24V 10A
2568990000	PRO TOP1 240W 24V 10A F
2466890000	PRO TOP1 480W 24V 20A
2467030000	PRO TOP1 480W 48V 10A
2466900000	PRO TOP1 960W 24V 40A
2466920000	PRO TOP1 960W 48V 20A



AC input voltage range	85…277 V AC
Connection system	PUSH IN
Current consumption in relation to the input voltage Voltage type AC Input voltage 100 V Input current 6 A   Voltage type DC Input voltage 120 V Input current 6 A
DC input voltage range	80 ... 410 V DC
Frequency range AC	45…65 Hz
Input fuse (internal)	Yes
Inrush current	max. 5 A
Nominal power consumption	516.1 W
Rated input voltage	110...240 V AC / 120...340 V DC
Recommended back-up fuse	8 A (DI) / 10 A (Char. B), 8 A (Char. C)
Surge protection	Varistor



Connection system	PUSH IN
DCL - peak load reserve Boost duration 5 s Multiple of the rated current 150 %   Boost duration 15 ms Multiple of the rated current 500 %
Mains failure bridge-over time	> 20 ms @ 115V AC/ 230 VAC

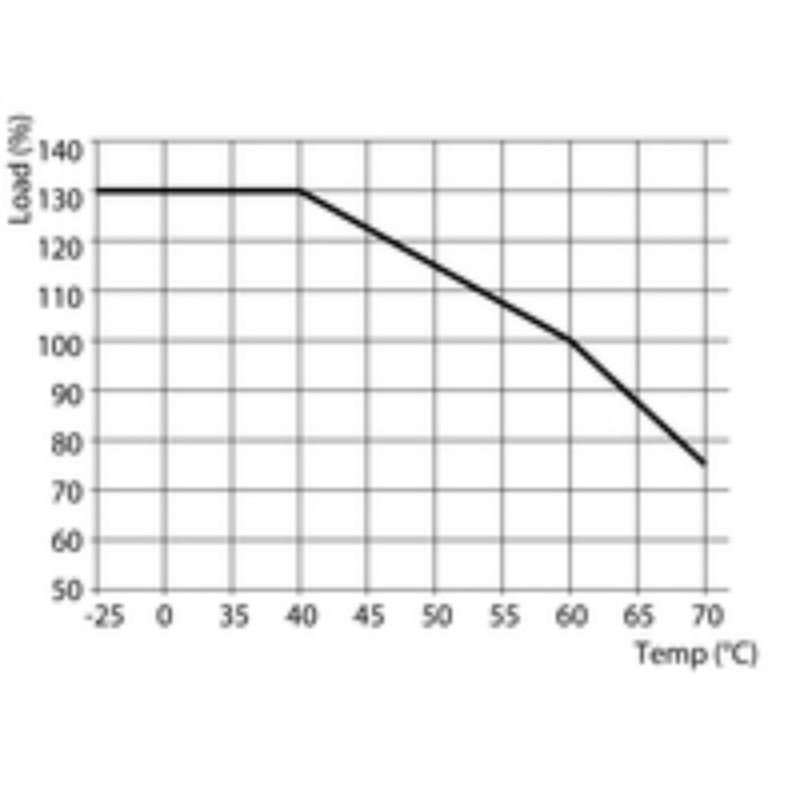

Nominal output current for Unom	20 A @ 60 °C
Output power	480 W
Output voltage, max.	28.8 V
Output voltage, min.	22.5 V
Output voltage, note	adjustable with potentiometer or comunication module
Parallel connection option	yes, max 10
Protection against inverse voltage	Yes
Ramp-up time	≤ 100 ms
Rated output voltage	24 V DC ± 1 %
Residual ripple, breaking spikes	< 50 mVss @ UNenn, Full Load
