Version | Power supply, switch-mode power supply unit, 24 V |
Order No. | 2466880000 |
Type | PRO TOP1 240W 24V 10A |
GTIN (EAN) | 4050118481464 |
Qty. | 1 pc(s). |
Depth | 125 mm |
Depth (inches) | 4.921 inch |
Height | 130 mm |
Height (inches) | 5.118 inch |
Width | 39 mm |
Width (inches) | 1.535 inch |
Net weight | 1,050 g |
Order No. | Type |
2568970000 | PRO TOP1 72W 24V 3A F |
2466850000 | PRO TOP1 72W 24V 3A |
2466870000 | PRO TOP1 120W 24V 5A |
2568980000 | PRO TOP1 120W 24V 5A F |
2466910000 | PRO TOP1 120W 12V 10A |
2569000000 | PRO TOP1 120W 12V 10A F |
2466880000 | PRO TOP1 240W 24V 10A |
2568990000 | PRO TOP1 240W 24V 10A F |
2466890000 | PRO TOP1 480W 24V 20A |
2467030000 | PRO TOP1 480W 48V 10A |
2466900000 | PRO TOP1 960W 24V 40A |
2466920000 | PRO TOP1 960W 48V 20A |
AC input voltage range | 85…277 V AC | ||||||||||||||
Connection system | PUSH IN with actuator | ||||||||||||||
| |||||||||||||||
DC input voltage range | 80 ... 410 V DC | ||||||||||||||
Frequency range AC | 45…65 Hz | ||||||||||||||
Input fuse (internal) | Yes | ||||||||||||||
Inrush current | max. 5 A | ||||||||||||||
Nominal power consumption | 260.9 W | ||||||||||||||
Rated input voltage | 110...240 V AC / 120...340 V DC | ||||||||||||||
Recommended back-up fuse | 5 A, DI / 6 A, Char. B / 6 A, Char C | ||||||||||||||
Surge protection | Varistor |
Connection system | PUSH IN with actuator | ||||||||||
| |||||||||||
Mains failure bridge-over time | > 20 ms @ 115V AC/ 230 VAC | ||||||||||

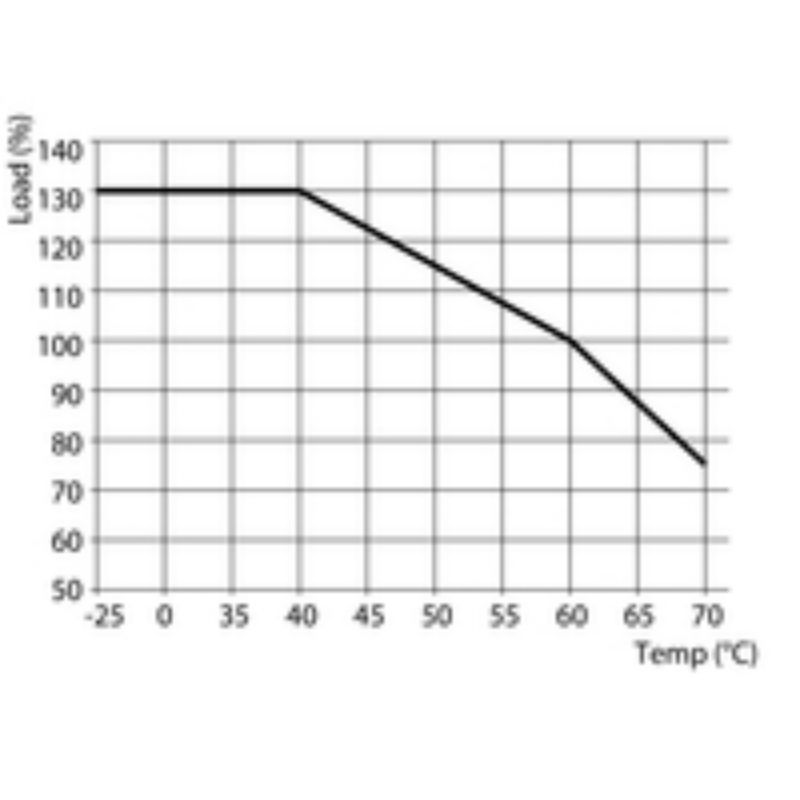

Nominal output current for Unom | 10 A @ 60 °C | ||||||||||
Output power | 240 W | ||||||||||
Output voltage, max. | 28.8 V | ||||||||||
Output voltage, min. | 22.5 V | ||||||||||
Output voltage, note | adjustable with potentiometer or comunication module | ||||||||||
Parallel connection option | yes, max 10 | ||||||||||
Protection against inverse voltage | Yes | ||||||||||
Ramp-up time | ≤ 100 ms | ||||||||||
Rated output voltage | 24 V DC ± 1 % | ||||||||||
Residual ripple, breaking spikes | < 50 mVss @ UNenn, Full Load |
