Version	Power supply, switch-mode power supply unit, 12 V
Order No.	2466910000
Type	PRO TOP1 120W 12V 10A
GTIN (EAN)	4050118481495
Qty.	1 pc(s).



Depth	125 mm
Depth (inches)	4.921 inch
Height	130 mm
Height (inches)	5.118 inch
Width	35 mm
Width (inches)	1.378 inch
Net weight	850 g



Order No.	Type
2568970000	PRO TOP1 72W 24V 3A F
2466850000	PRO TOP1 72W 24V 3A
2466870000	PRO TOP1 120W 24V 5A
2568980000	PRO TOP1 120W 24V 5A F
2466910000	PRO TOP1 120W 12V 10A
2569000000	PRO TOP1 120W 12V 10A F
2466880000	PRO TOP1 240W 24V 10A
2568990000	PRO TOP1 240W 24V 10A F
2466890000	PRO TOP1 480W 24V 20A
2467030000	PRO TOP1 480W 48V 10A
2466900000	PRO TOP1 960W 24V 40A
2466920000	PRO TOP1 960W 48V 20A



AC input voltage range	85…277 V AC
Connection system	PUSH IN with actuator
Current consumption in relation to the input voltage Voltage type AC Input voltage 100 V Input current 2 A   Voltage type DC Input voltage 120 V Input current 2 A
DC input voltage range	80 ... 410 V DC
Frequency range AC	45…65 Hz
Input fuse (internal)	Yes
Inrush current	max. 5 A
Nominal power consumption	133.3 W
Rated input voltage	110...240 V AC / 120...340 V DC
Recommended back-up fuse	5 A, DI / 6 A, Char. B / 6 A, Char C
Surge protection	Varistor



Connection system	PUSH IN with actuator
DCL - peak load reserve Multiple of the rated current 150 % Boost duration 5 s   Multiple of the rated current 400 % Boost duration 15 ms
Mains failure bridge-over time	> 20 ms @ 115V AC/ 230 VAC

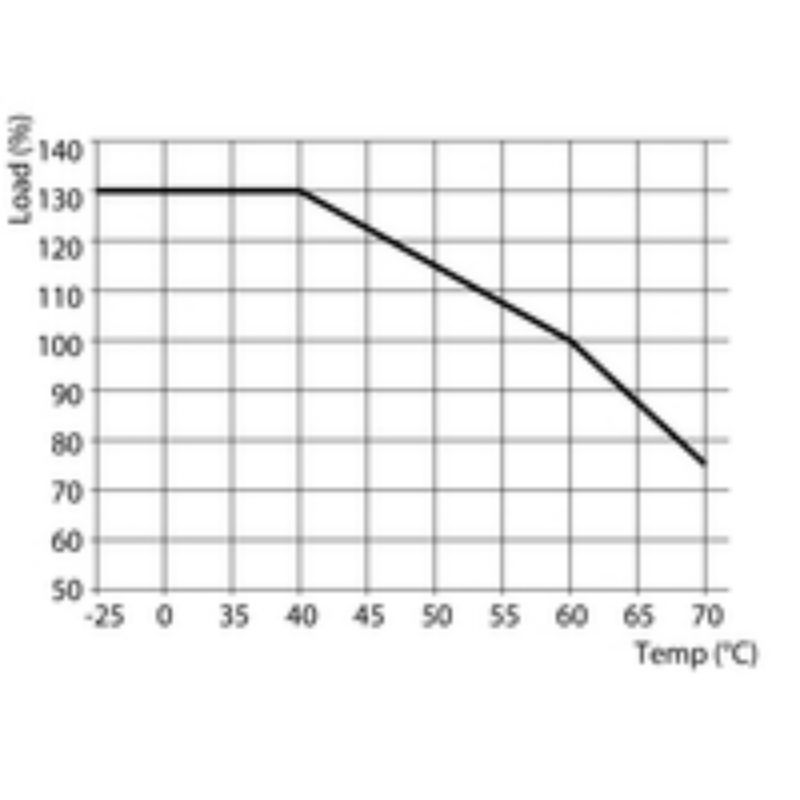

Nominal output current for Unom	10 A @ 60 °C
Output power	120 W
Output voltage, max.	15 V
Output voltage, min.	11 V
Output voltage, note	adjustable with potentiometer or comunication module
Parallel connection option	yes, max 10
Protection against inverse voltage	Yes
Ramp-up time	≤ 100 ms
Rated output voltage	12 V DC ± 1 %
Residual ripple, breaking spikes	< 50 mVss @ UNenn, Full Load
