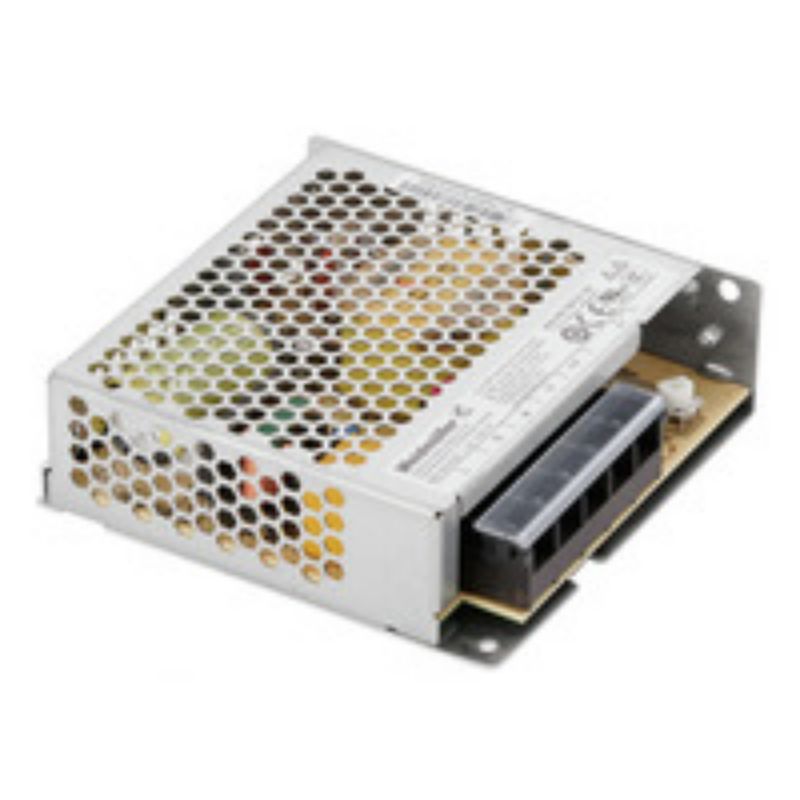

| Version | Power supply, switch-mode power supply unit |
| Order No. | 2660200281 |
| Type | PRO PM 75W 5V 14A |
| GTIN (EAN) | 4050118782028 |
| Qty. | 1 pc(s). |
| Depth | 99 mm |
| Depth (inches) | 3.898 inch |
| Height | 30 mm |
| Height (inches) | 1.181 inch |
| Width | 97 mm |
| Width (inches) | 3.819 inch |
| Net weight | 240 g |
| Order No. | Type |
| 2660200277 | PRO PM 35W 5V 7A |
| 2660200278 | PRO PM 35W 12V 3A |
| 2660200279 | PRO PM 35W 24V 1.5A |
| 2660200280 | PRO PM 35W 48V 0.75A |
| 2660200281 | PRO PM 75W 5V 14A |
| 2660200282 | PRO PM 75W 12V 6A |
| 2660200283 | PRO PM 75W 24V 3.2A |
| 2660200284 | PRO PM 75W 48V 1.6A |
| 2660200285 | PRO PM 100W 12V 8.5A |
| 2660200286 | PRO PM 100W 24V 4.5A |
| 2660200287 | PRO PM 100W 48V 2.3A |
| 2660200288 | PRO PM 150W 12V 12.5A |
| 2660200289 | PRO PM 150W 24V 6.5A |
| 2660200290 | PRO PM 150W 48V 3.3A |
| 2660200291 | PRO PM 250W 12V 21A |
| 2660200292 | PRO PM 250W 24V 10.5A |
| 2660200293 | PRO PM 250W 48V 5.2A |
| 2660200294 | PRO PM 350W 24V 14.6A |
| 2660200295 | PRO PM 350W 48V 7.3A |
| Degree of efficiency | 82 % | ||||||||
| Derating | > 50°C (2% / 1°C) | ||||||||
| Humidity | 5…95 % RH | ||||||||
| |||||||||
| Mounting position, installation notice | Panel mount, screw fix | ||||||||
| Operating temperature | -20 °C...70 °C | ||||||||
| Protection degree | IP20 | ||||||||
| Short-circuit protection | Yes | ||||||||
| Status indication | LED green: ready | ||||||||
