Weidmuller PRO INSTA 96W 48V 2A 2580270000 Switch-mode Power Supply

Weidmuller PRO INSTA series is switch-mode power supply unit. The single-phase INSTA-POWER switching power supplies are characterised by a wide power spectrum, compact design and good value for money. They are suitable for temperature ranges from -25°C to +70°C, have international approvals and a wide voltage input range. This makes them suitable for a wide range of applications. This also includes signal and telecommunications systems as well as automation systems with a low power requirement up to 96 Watt.

Products Details


Version Power supply, switch-mode power supply unit, 48 V
Order No. 2580270000
Type PRO INSTA 96W 48V 2A
GTIN (EAN) 4050118591002
Qty. 1 pc(s).

Depth 60 mm
Depth (inches) 2.362 inch
Height 90 mm
Height (inches) 3.543 inch
Width 90 mm
Width (inches) 3.543 inch
Net weight 361 g

Order No. Type
2580180000 PRO INSTA 16W 24V 0.7A
2580220000 PRO INSTA 30W 12V 2.6A
2580190000 PRO INSTA 30W 24V 1.3A
2580210000 PRO INSTA 30W 5V 6A
2580240000 PRO INSTA 60W 12V 5A
2580230000 PRO INSTA 60W 24V 2.5A
2580250000 PRO INSTA 90W 24V 3.8A
2580260000 PRO INSTA 96W 24V 4A
2580270000 PRO INSTA 96W 48V 2A

Degree of efficiency 89%
Housing version Plastic, protective insulation
MTBF
According to Standard Telcordia SR-332
Operating time (hours), min. 648 kh
Ambient temperature 25 °C
Input voltage 230 V
Output power 96 W
Duty cycle 100 %

According to Standard Telcordia SR-332
Operating time (hours), min. 310 kh
Ambient temperature 40 °C
Input voltage 230 V
Output power 96 W
Duty cycle 100 %


Mounting position, installation notice Horizontal on DIN rail TS 35, top and bottom 50 mm clearance for free air flow, 10 mm clearance to neighbouring active subassemblies with full load, 5 mm with passive neighbouring subassemblies, direct row mounting with 90% rated load

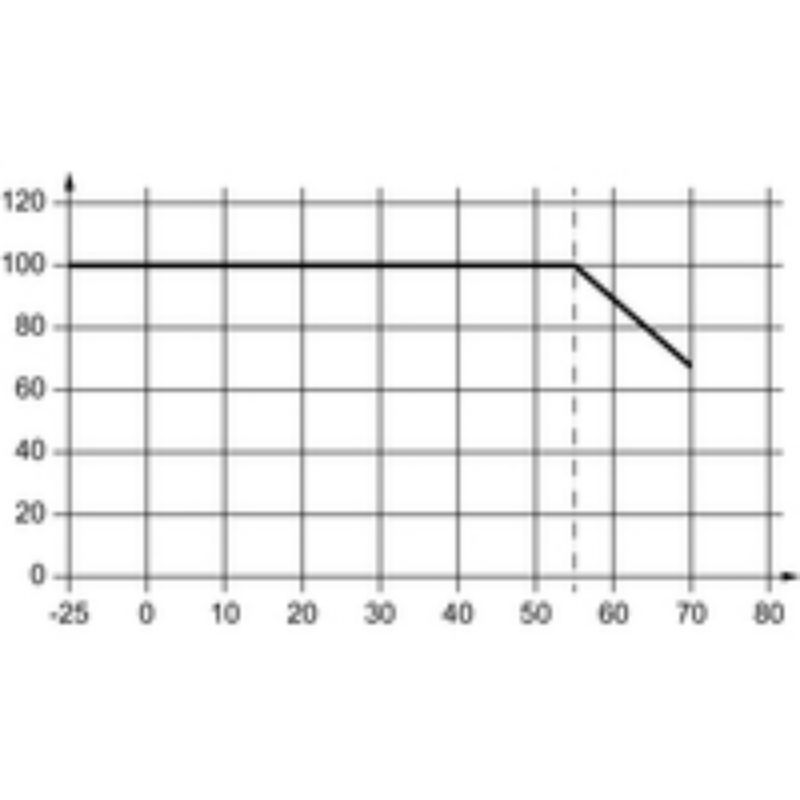

Operating temperature -25 °C...70 °C
Power loss, idling 0.45 W
Power loss, nominal load 10.56 W
Protection against reverse voltages from the load 58…62 V DC
Protection degree IP20
Short-circuit protection Yes, internal
Start-up ≥ -40 °C
