Version	Power supply, switch-mode power supply unit, 24 V
Order No.	2580250000
Type	PRO INSTA 90W 24V 3.8A
GTIN (EAN)	4050118590982
Qty.	1 pc(s).



Depth	60 mm
Depth (inches)	2.362 inch
Height	90 mm
Height (inches)	3.543 inch
Width	90 mm
Width (inches)	3.543 inch
Net weight	352 g



Order No.	Type
2580180000	PRO INSTA 16W 24V 0.7A
2580220000	PRO INSTA 30W 12V 2.6A
2580190000	PRO INSTA 30W 24V 1.3A
2580210000	PRO INSTA 30W 5V 6A
2580240000	PRO INSTA 60W 12V 5A
2580230000	PRO INSTA 60W 24V 2.5A
2580250000	PRO INSTA 90W 24V 3.8A
2580260000	PRO INSTA 96W 24V 4A
2580270000	PRO INSTA 96W 48V 2A



Degree of efficiency	87 %
Housing version	Plastic, protective insulation
MTBF According to Standard Telcordia SR-332 Operating time (hours), min. 619 kh Ambient temperature 25 °C Input voltage 230 V Output power 90 W Duty cycle 100 %   According to Standard Telcordia SR-332 Operating time (hours), min. 293 kh Ambient temperature 40 °C Input voltage 230 V Output power 90 W Duty cycle 100 %
Mounting position, installation notice	Horizontal on DIN rail TS 35, top and bottom 50 mm clearance for free air flow, 10 mm clearance to neighbouring active subassemblies with full load, 5 mm with passive neighbouring subassemblies, direct row mounting with 90% rated load

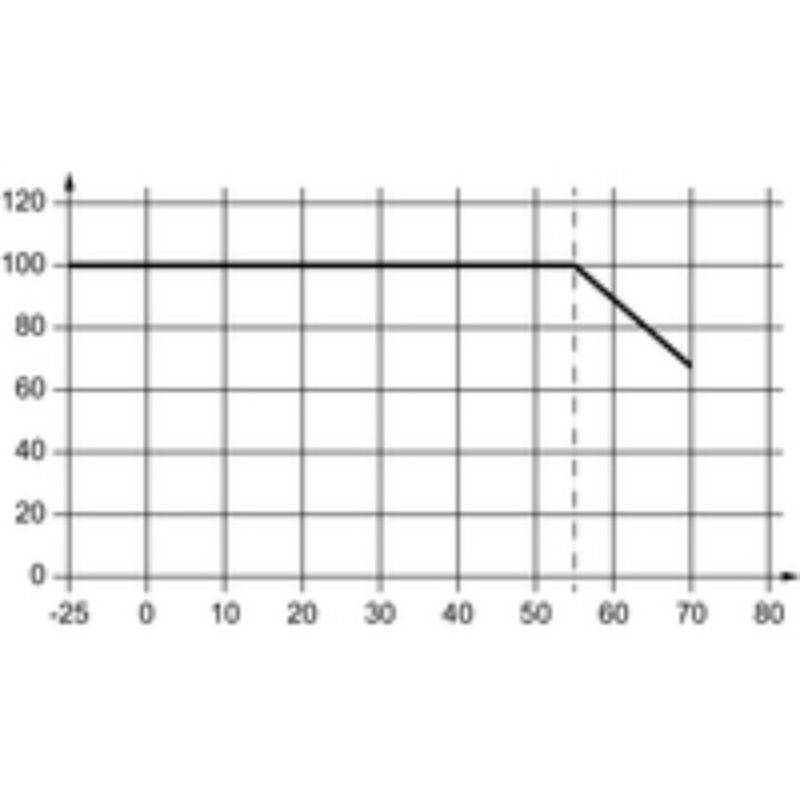

Operating temperature	-25 °C...70 °C
Power loss, idling	0.45 W
Power loss, nominal load	11.7 W
Protection against reverse voltages from the load	30…35 V DC
Protection degree	IP20
Short-circuit protection	Yes, internal
Start-up	≥ -40 °C
