Version	Power supply, switch-mode power supply unit, 24 V
Order No.	1469470000
Type	PRO ECO 72W 24V 3A
GTIN (EAN)	4050118275711
Qty.	1 pc(s).



Depth	100 mm
Depth (inches)	3.937 inch
Height	125 mm
Height (inches)	4.921 inch
Width	34 mm
Width (inches)	1.339 inch
Net weight	557 g



Order No.	Type
1469470000	PRO ECO 72W 24V 3A
1469570000	PRO ECO 72W 12V 6A
1469480000	PRO ECO 120W 24V 5A
1469580000	PRO ECO 120W 12V 10A
1469490000	PRO ECO 240W 24V 10A
1469590000	PRO ECO 240W 48V 5A
1469610000	PRO ECO 480W 48V 10A
1469520000	PRO ECO 960W 24V 40A
1469530000	PRO ECO3 120W 24V 5A
1469540000	PRO ECO3 240W 24V 10A
1469550000	PRO ECO3 480W 24V 20A
1469560000	PRO ECO3 960W 24V 40A



AC failure bridging time @ Inom	> 100 ms @ 230 V AC / > 20 ms @ 115 V AC
Degree of efficiency	87 %
Earth leakage current, max.	3.5 mA
Housing version	Metal, corrosion resistant
Indication	Green LED (Uoutput > 21.6 V DC), Yellow LED (loutput > 90 % IRated typ. ), red LED (overload, overtemperature, short-circuit, Uoutput < 20.4 V DC)
MTBF According to Standard SN 29500 Operating time (hours), min. 1.7 Mh Ambient temperature 25 °C Input voltage 230 V Output power 72 W Duty cycle 100 %   According to Standard SN 29500 Operating time (hours), min. 418 kh Ambient temperature 40 °C Input voltage 230 V Output power 72 W Duty cycle 100 %
Max. perm. air humidity (operational)	5 %…95 % RH
Mounting position, installation notice	on terminal rail TS 35

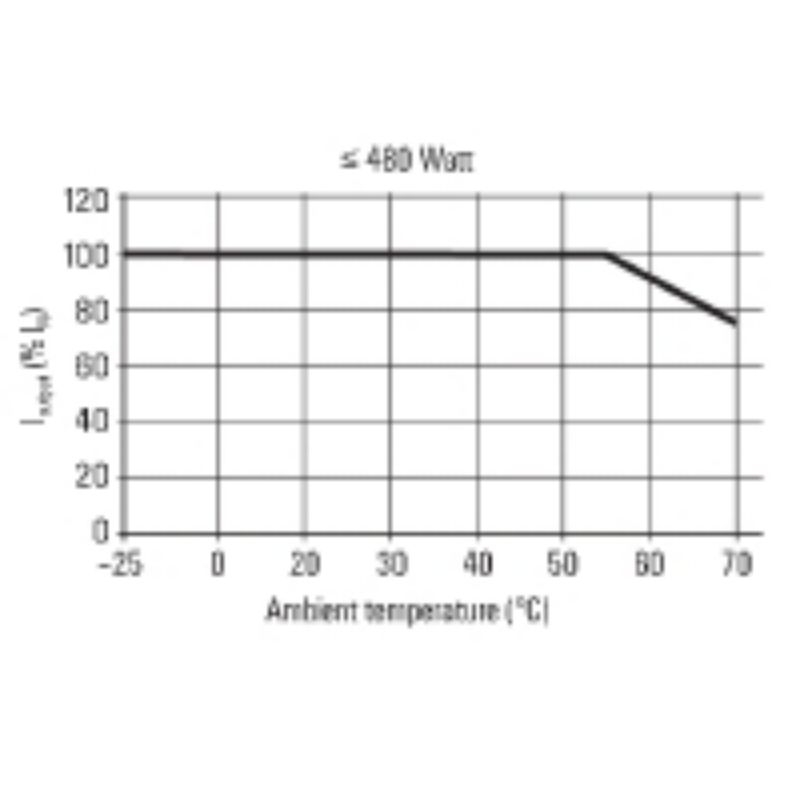

Operating temperature	-25 °C...70 °C
Power factor (approx.)	> 0.5…230 V AC / > 0.53…115 V AC
Power loss, idling	4 W
Power loss, nominal load	9.5 W
Protection against over-heating	Yes
Protection against reverse voltages from the load	30…35 V DC
Protection degree	IP20
Short-circuit protection	Yes
