Universal industrial relays with high efficiency. D-SERIES relays have been developed for universal use in industrial automation applications where high efficiency is required. They have many innovative functions and are available in a particularly large number of variants and in a wide range of designs for the most diverse applications. Thanks to various contact materials (AgNi and AgSnO etc.), D-SERIES products are suitable for low, medium and high loads. Variants with coil voltages from 5 V DC to 380 V AC enable use with every conceivable control voltage. The clever contact series connection and a built-in blowout magnet reduce contact erosion for loads up to 220 V DC/10 A, thus extending the service life. The optional status LED plus test button ensures convenient service operations. D-SERIES relays are available in DRI and DRM versions with either sockets for PUSH IN technology or screw connection and can be supplemented with a wide range of accessories. These include markers and pluggable protective circuits with LEDs or free-wheeling diodes. Control voltages from 12 to 230 V Switching currents from 5 to 30 A 1 to 4 changeover contacts Variants with built-in LED or test button Tailor-made accessories from cross-connections to marker

Depth	35.7 mm
Depth (inches)	1.406 inch
Height	27.4 mm
Height (inches)	1.079 inch
Width	21 mm
Width (inches)	0.827 inch
Net weight	36.2 g



Order No.	Type
7760056105	DRM570024LD
7760056123	DRM570024LD

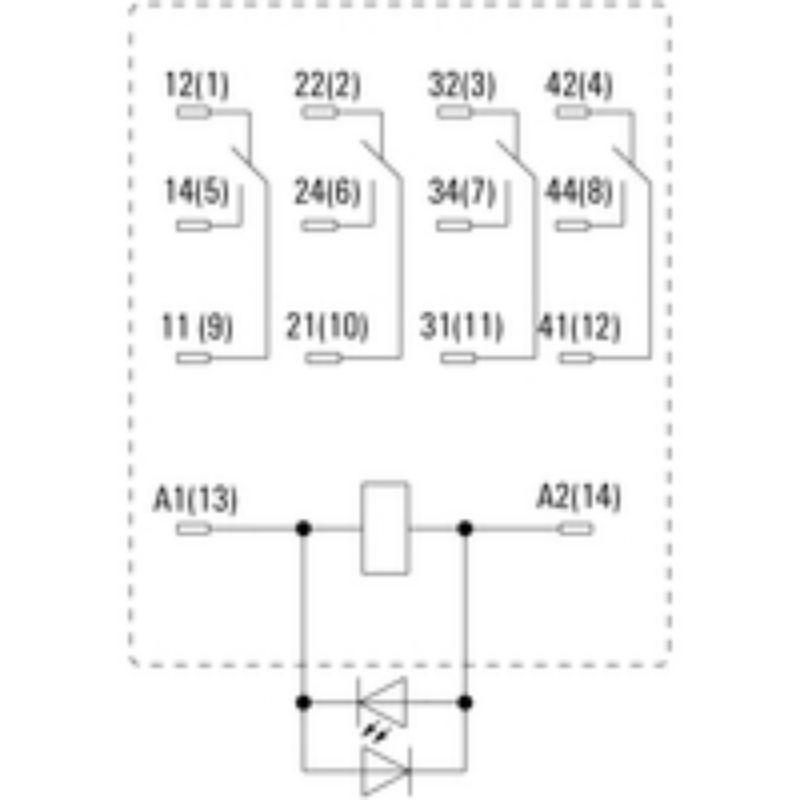

Version	D-SERIES DRM, Relay, Number of contacts: 4, CO contact, AgNi flash gold-plated, Rated control voltage: 24 V DC, Continuous current: 5 A, Plug-in connection
Order No.	7760056105
Type	DRM570024LD
GTIN (EAN)	4032248855599
Qty.	20 pc(s).
