Universal industrial relays with high efficiency. D-SERIES relays have been developed for universal use in industrial automation applications where high efficiency is required. They have many innovative functions and are available in a particularly large number of variants and in a wide range of designs for the most diverse applications. Thanks to various contact materials (AgNi and AgSnO etc.), D-SERIES products are suitable for low, medium and high loads. Variants with coil voltages from 5 V DC to 380 V AC enable use with every conceivable control voltage. The clever contact series connection and a built-in blowout magnet reduce contact erosion for loads up to 220 V DC/10 A, thus extending the service life. The optional status LED plus test button ensures convenient service operations. D-SERIES relays are available in DRI and DRM versions with either sockets for PUSH IN technology or screw connection and can be supplemented with a wide range of accessories. These include markers and pluggable protective circuits with LEDs or free-wheeling diodes. Control voltages from 12 to 230 V Switching currents from 5 to 30 A 1 to 4 changeover contacts Variants with built-in LED or test button Tailor-made accessories from cross-connections to marker

Depth	28 mm
Depth (inches)	1.102 inch
Height	31 mm
Height (inches)	1.22 inch
Width	13 mm
Width (inches)	0.512 inch
Net weight	19 g



Order No.	Type
7760056327	DRI424730
7760056321	DRI424012
7760056322	DRI424024
7760056323	DRI424048
7760056324	DRI424110L
7760056325	DRI424524
7760056326	DRI424615

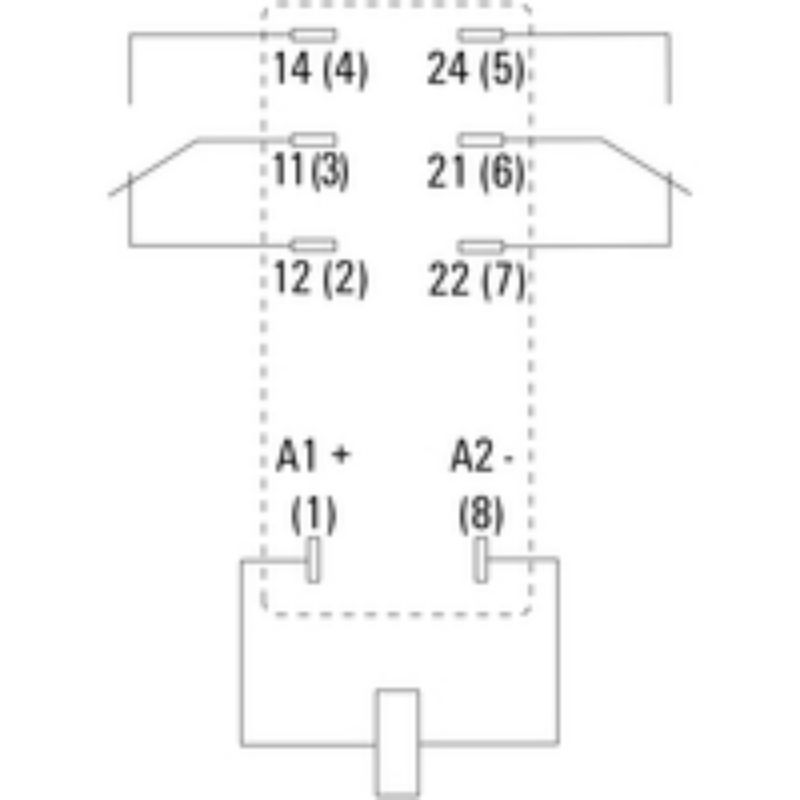

Version	D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 24 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No
Order No.	7760056322
Type	DRI424024
GTIN (EAN)	6944169740275
Qty.	20 pc(s).
