Version	UPS control unit
Order No.	1370040010
Type	CP DC UPS 24V 40A
GTIN (EAN)	4050118202342
Qty.	1 pc(s).



Depth	150 mm
Depth (inches)	5.905 inch
Height	130 mm
Height (inches)	5.118 inch
Width	66 mm
Width (inches)	2.598 inch
Net weight	1,051.8 g



Order No.	Type
1370050010	UPS control unit
1370040010	CP DC UPS 24V 40A

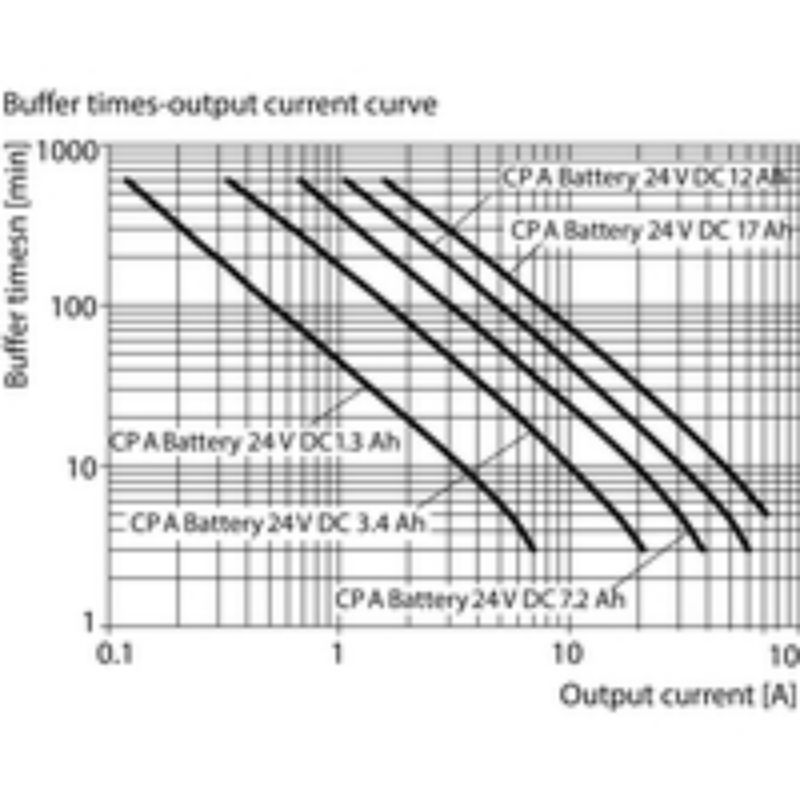

Buffer times	Depending on the connected battery
Clip-in foot	metal
Current limiting	> 120% IN
Degree of efficiency	≥ 96% normal mode, battery is being charged, ≥ 98% normal mode, battery is charged, ≥ 98% buffer mode
Housing version	Metal, corrosion resistant
Humidity	5...95 %, no condensation
MTBF According to Standard SN 29500 Operating time (hours), min. 1.86 Mh Ambient temperature 25 °C Input voltage 24 V Output power 960 W Duty cycle 100 %   According to Standard SN 29500 Operating time (hours), min. 906.4 kh Ambient temperature 40 °C Input voltage 24 V Output power 960 W Duty cycle 100 %
Mounting position, installation notice	Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between.
Operating temperature	-25 °C...70 °C
Power loss	< 10 W
Protection against reverse voltages from the load	32…34 V DC
Protection degree	IP20
Short-circuit protection	Yes
Storage medium	3.4 Ah, 7.2 Ah, 12 Ah, 17 Ah, Selectable with rotary switch
Surge voltage category	III
