Weidmuller APGTB 2.5 PE 2C/1 1513870000 PE Terminal

Weidmuller APGTB 2.5 PE 2C/1 is A-Series terminal block, PE terminal, PUSH IN, 2.5 mm², 800 V, Green/yellow, order no. is 1513870000. Weidmuller’s A-Series terminal blocks,increase your efficiency during installations without compromising on safety. The innovative PUSH IN technology reduces connection times for solid conductors and conductors with crimped-on wire-end ferrules by up to 50 percent compared to tension clamp terminals. The conductor is simply inserted into the contact point as far as the stop and that’s it – you have a safe, gas-tight connection. Even stranded-wire conductors can be connected without any problem and without the need for special tools. Safe and reliable connections are crucial, especially under harsh conditions, such as those encountered in the process industry. PUSH IN technology guarantees optimal contact security and ease of handling, even in demanding applications.

Products Details

Spring connection with PUSH IN technology (A-Series) Time saving 1.Mounting foot makes unlatching the terminal block easy 2. Clear distinction made between all functional areas 3.Easier marking and wiring Space saving design 1.Slim design creates a large amount of space in the panel 2.High wiring density despite less space being required on the terminal rail Safety 1.Optical and physical separation of operation and conductor entry 2.Vibration-resistant, gas-tight connection with copper power rails and stainless steel spring Flexibility 1.Large marking surfaces make maintenance work easier 2.Clip-in foot compensates for differences in terminal rail dimensions

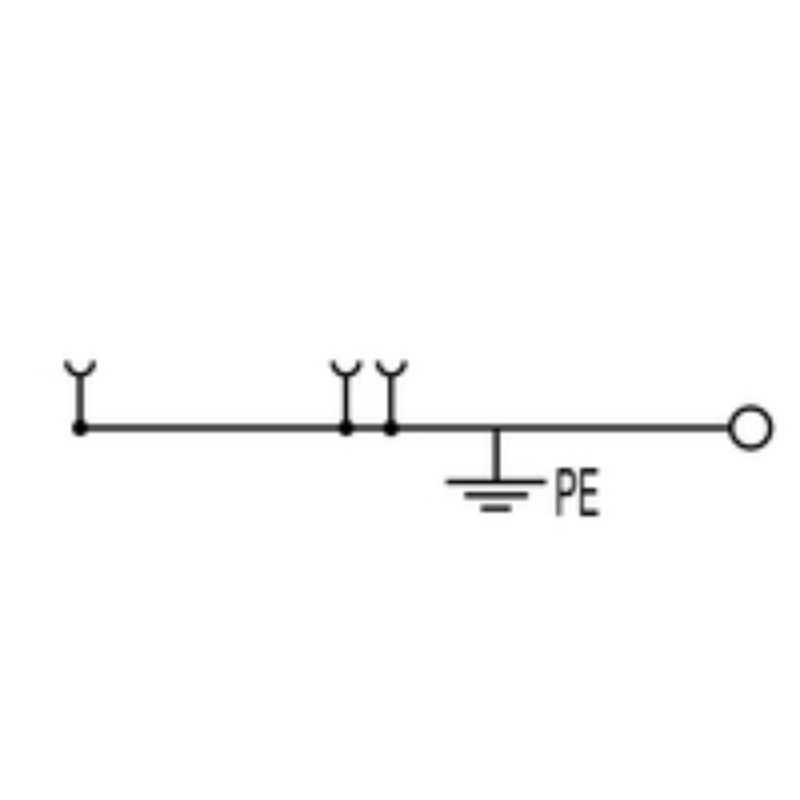

Version PE terminal, PUSH IN, 2.5 mm², 800 V, Green/yellow
Order No. 1513870000
Type APGTB 2.5 PE 2C/1
GTIN (EAN) 4050118321395
Qty. 50 pc(s).

Depth 36.5 mm
Depth (inches) 1.437 inch
Depth including DIN rail 37 mm
Height 54 mm
Height (inches) 2.126 inch
Width 5.1 mm
Width (inches) 0.201 inch
Net weight 8.73 g

Order No. Type
1513970000 APGTB 2.5 FT 2C/1
1513990000 APGTB 2.5 FT 2C/1 BL
1514000000 APGTB 2.5 FT 3C/1
1514020000 APGTB 2.5 FT 3C/1 BL
1514030000 APGTB 2.5 FT 4C/2
1514040000 APGTB 2.5 FT 4C/2 BL
1513890000 APGTB 2.5 PE 3C/1
1513920000 APGTB 2.5 PE 4C/2
