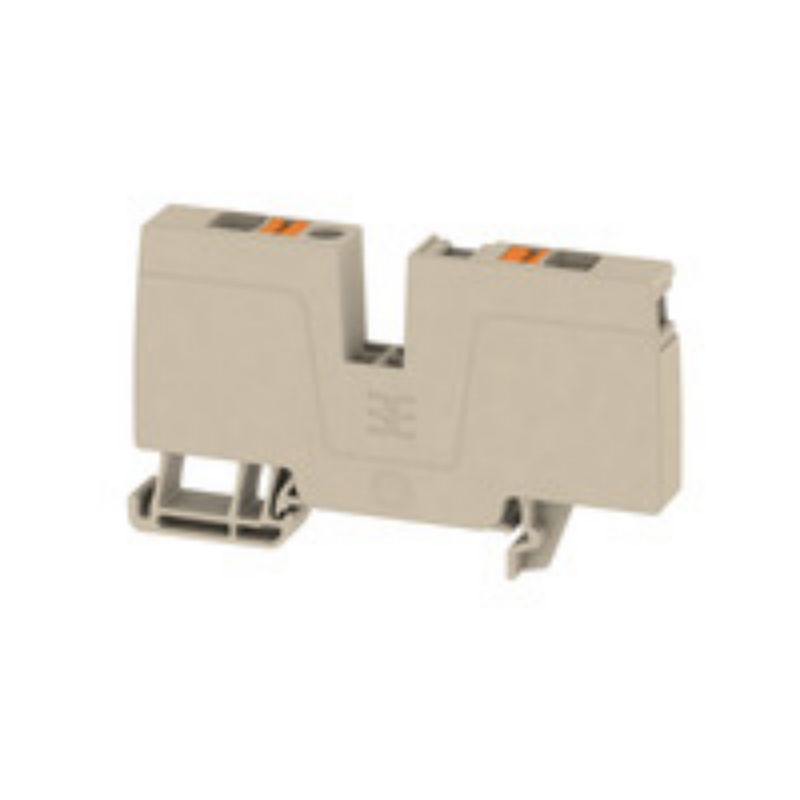

Weidmuller ALO 6 1991780000 Supply Terminal

Weidmuller ALO 6 is A-Series terminal block, supply terminal, PUSH IN, 6 mm², 800 V, 41 A, dark beige,order no. is 1991780000. Weidmuller’s A-Series terminal blocks,increase your efficiency during installations without compromising on safety. The innovative PUSH IN technology reduces connection times for solid conductors and conductors with crimped-on wire-end ferrules by up to 50 percent compared to tension clamp terminals. The conductor is simply inserted into the contact point as far as the stop and that’s it – you have a safe, gas-tight connection. Even stranded-wire conductors can be connected without any problem and without the need for special tools. Safe and reliable connections are crucial, especially under harsh conditions, such as those encountered in the process industry. PUSH IN technology guarantees optimal contact security and ease of handling, even in demanding applications.

Products Details

Spring connection with PUSH IN technology (A-Series) Time saving 1.Mounting foot makes unlatching the terminal block easy 2. Clear distinction made between all functional areas 3.Easier marking and wiring Space saving design 1.Slim design creates a large amount of space in the panel 2.High wiring density despite less space being required on the terminal rail Safety 1.Optical and physical separation of operation and conductor entry 2.Vibration-resistant, gas-tight connection with copper power rails and stainless steel spring Flexibility 1.Large marking surfaces make maintenance work easier 2.Clip-in foot compensates for differences in terminal rail dimensions
Version Supply terminal, PUSH IN, 6 mm², 800 V, 41 A, dark beige
Order No. 1991780000
Type ALO 6
GTIN (EAN) 4050118376470
Qty. 20 pc(s).

Depth 45.5 mm
Depth (inches) 1.791 inch
Depth including DIN rail 46 mm
Height 77 mm
Height (inches) 3.031 inch
Width 9 mm
Width (inches) 0.354 inch
Net weight 20.054 g

Order No. Type
2502280000 ALO 16
2502320000 ALO 16 BL
2065120000 ALO 6 BL
