Weidmuller AFS 4 2C BK 2429860000 Fuse Terminal

Weidmuller AFS 4 2C BK is A-Series terminal block, Fuse terminal, PUSH IN, 4 mm², 500 V, 6.3 A, black, order no. is 2429860000. Weidmuller’s A-Series terminal blocks,increase your efficiency during installations without compromising on safety. The innovative PUSH IN technology reduces connection times for solid conductors and conductors with crimped-on wire-end ferrules by up to 50 percent compared to tension clamp terminals. The conductor is simply inserted into the contact point as far as the stop and that’s it – you have a safe, gas-tight connection. Even stranded-wire conductors can be connected without any problem and without the need for special tools. Safe and reliable connections are crucial, especially under harsh conditions, such as those encountered in the process industry. PUSH IN technology guarantees optimal contact security and ease of handling, even in demanding applications.

Products Details

Spring connection with PUSH IN technology (A-Series) Time saving 1.Mounting foot makes unlatching the terminal block easy 2. Clear distinction made between all functional areas 3.Easier marking and wiring Space saving design 1.Slim design creates a large amount of space in the panel 2.High wiring density despite less space being required on the terminal rail Safety 1.Optical and physical separation of operation and conductor entry 2.Vibration-resistant, gas-tight connection with copper power rails and stainless steel spring Flexibility 1.Large marking surfaces make maintenance work easier 2.Clip-in foot compensates for differences in terminal rail dimensions

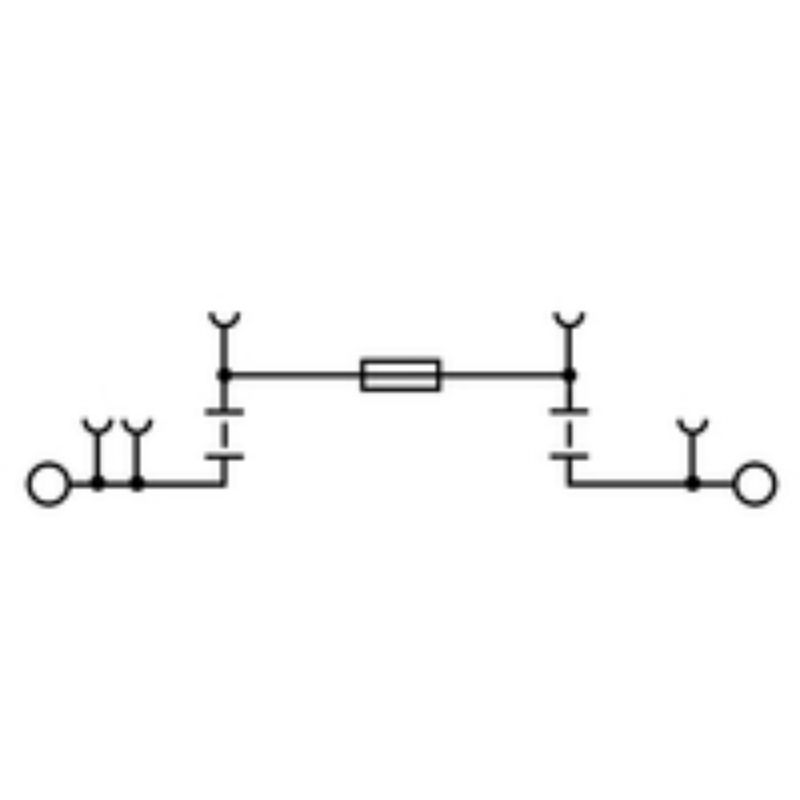

Version Fuse terminal, PUSH IN, 4 mm², 500 V, 6.3 A, black
Order No. 2429860000
Type AFS 4 2C BK
GTIN (EAN) 4050118439717
Qty. 50 pc(s).

Depth 68 mm
Depth (inches) 2.677 inch
Depth including DIN rail 69 mm
Height 74 mm
Height (inches) 2.913 inch
Width 6.1 mm
Width (inches) 0.24 inch
Net weight 17.5 g

Order No. Type
2429870000 AFS 4 2C 10-36V BK
2434390000 AFS 4 2C 100-250V BK
2434350000 AFS 4 2C 30-70V BK
2434380000 AFS 4 2C 60-150V BK
2548140000 AFS 4 2C BK/BL
2831910000 AFS 4 2C W/O FSPG BK
