Weidmuller ADT 4 2C 2429850000 Test-disconnect Terminal

Weidmuller ADT 4 2C is A-Series terminal block, Test-disconnect terminal, PUSH IN, 4 mm², 500 V, 20 A, dark beige,order no. is 2429850000. Weidmuller’s A-Series terminal blocks,increase your efficiency during installations without compromising on safety. The innovative PUSH IN technology reduces connection times for solid conductors and conductors with crimped-on wire-end ferrules by up to 50 percent compared to tension clamp terminals. The conductor is simply inserted into the contact point as far as the stop and that’s it – you have a safe, gas-tight connection. Even stranded-wire conductors can be connected without any problem and without the need for special tools. Safe and reliable connections are crucial, especially under harsh conditions, such as those encountered in the process industry. PUSH IN technology guarantees optimal contact security and ease of handling, even in demanding applications.

Products Details

Spring connection with PUSH IN technology (A-Series) Time saving 1.Mounting foot makes unlatching the terminal block easy 2. Clear distinction made between all functional areas 3.Easier marking and wiring Space saving design 1.Slim design creates a large amount of space in the panel 2.High wiring density despite less space being required on the terminal rail Safety 1.Optical and physical separation of operation and conductor entry 2.Vibration-resistant, gas-tight connection with copper power rails and stainless steel spring Flexibility 1.Large marking surfaces make maintenance work easier 2.Clip-in foot compensates for differences in terminal rail dimensions

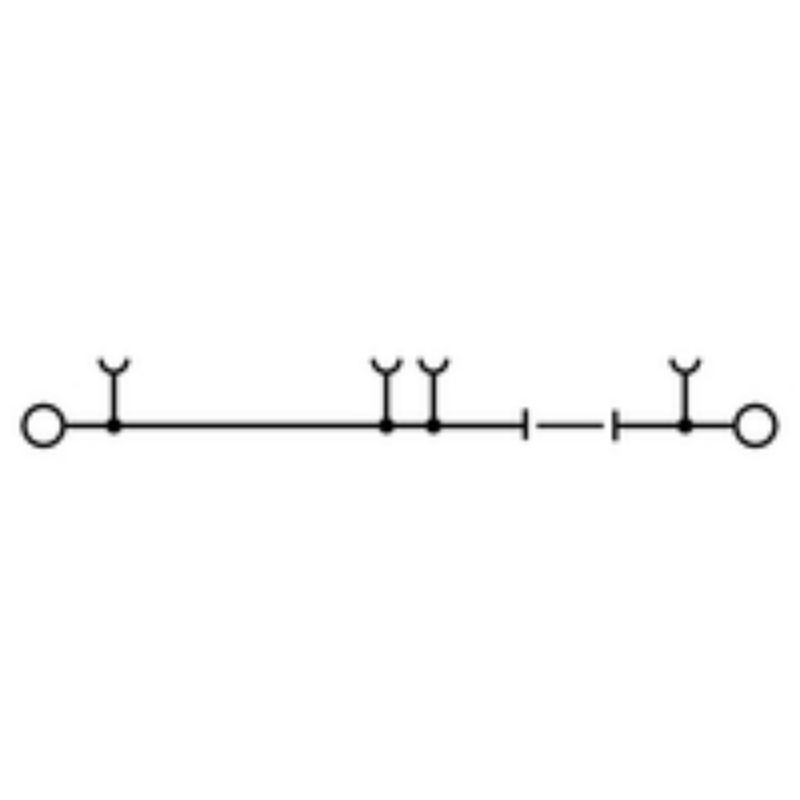

Version Test-disconnect terminal, PUSH IN, 4 mm², 500 V, 20 A, dark beige
Order No. 2429850000
Type ADT 4 2C
GTIN (EAN) 4050118439724
Qty. 50 pc(s).

Depth 41 mm
Depth (inches) 1.614 inch
Depth including DIN rail 42 mm
Height 74 mm
Height (inches) 2.913 inch
Width 6.1 mm
Width (inches) 0.24 inch
Net weight 12.49 g

Order No. Type
2429880000 ADT 4 2C BL
2429890000 ADT 4 2C OR
