Weidmuller ADT 2.5 4C 1989860000 Terminal

Weidmuller ADT 2.5 4C is A-Series terminal block, Test-disconnect terminal, PUSH IN, 2.5 mm², 500 V, 20 A, dark beige,order no. is 1989860000. Weidmuller’s A-Series terminal blocks,increase your efficiency during installations without compromising on safety. The innovative PUSH IN technology reduces connection times for solid conductors and conductors with crimped-on wire-end ferrules by up to 50 percent compared to tension clamp terminals. The conductor is simply inserted into the contact point as far as the stop and that’s it – you have a safe, gas-tight connection. Even stranded-wire conductors can be connected without any problem and without the need for special tools. Safe and reliable connections are crucial, especially under harsh conditions, such as those encountered in the process industry. PUSH IN technology guarantees optimal contact security and ease of handling, even in demanding applications.

Products Details

Spring connection with PUSH IN technology (A-Series) Time saving 1.Mounting foot makes unlatching the terminal block easy 2. Clear distinction made between all functional areas 3.Easier marking and wiring Space saving design 1.Slim design creates a large amount of space in the panel 2.High wiring density despite less space being required on the terminal rail Safety 1.Optical and physical separation of operation and conductor entry 2.Vibration-resistant, gas-tight connection with copper power rails and stainless steel spring Flexibility 1.Large marking surfaces make maintenance work easier 2.Clip-in foot compensates for differences in terminal rail dimensions

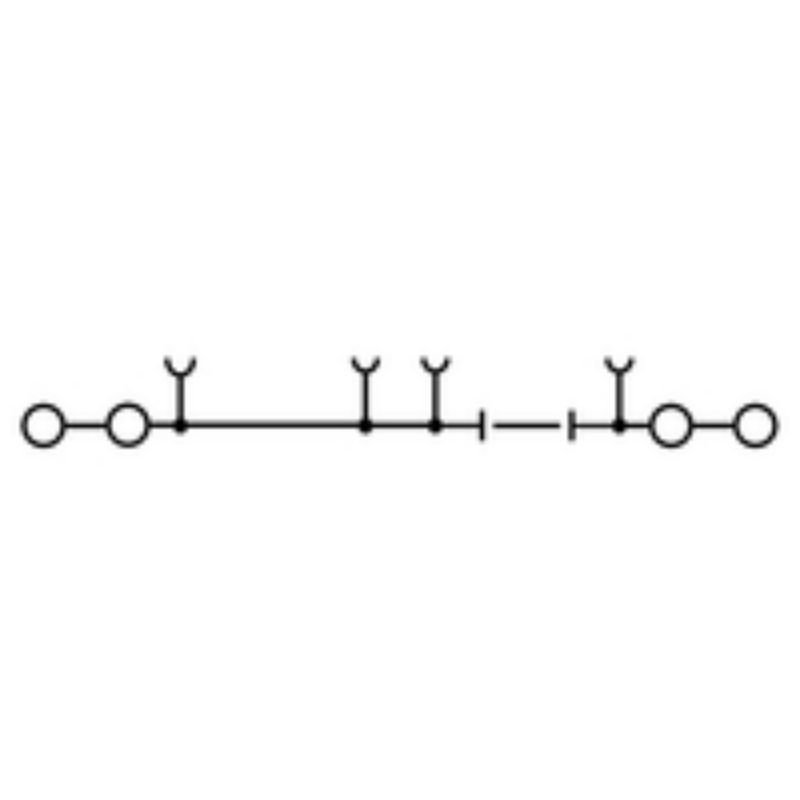

Version Test-disconnect terminal, PUSH IN, 2.5 mm², 500 V, 20 A, dark beige
Order No. 1989860000
Type ADT 2.5 4C
GTIN (EAN) 4050118374506
Qty. 50 pc(s).

Depth 37.65 mm
Depth (inches) 1.482 inch
Depth including DIN rail 38.4 mm
Height 96 mm
Height (inches) 3.78 inch
Width 5.1 mm
Width (inches) 0.201 inch
Net weight 12.779 g

Order No. Type
1989800000 ADT 2.5 2C
1989900000 A2C 2.5 /DT/FS
1989910000 A2C 2.5 /DT/FS BL
1989920000 A2C 2.5 /DT/FS OR
1989890000 A2C 2.5 PE /DT/FS
1989810000 ADT 2.5 2C BL
1989820000 ADT 2.5 2C OR
1989930000 ADT 2.5 2C W/O DTLV
2430040000 ADT 2.5 2C W/O DTLV BL
1989830000 ADT 2.5 3C
1989840000 ADT 2.5 3C BL
1989850000 ADT 2.5 3C OR
1989940000 ADT 2.5 3C W/O DTLV
1989860000 ADT 2.5 4C
1989870000 ADT 2.5 4C BL
1989880000 ADT 2.5 4C OR
1989950000 ADT 2.5 4C W/O DTLV
