Weidmuller ACT20P-VI1-CO-OLP-S 7760054120 Signal Converter/isolator

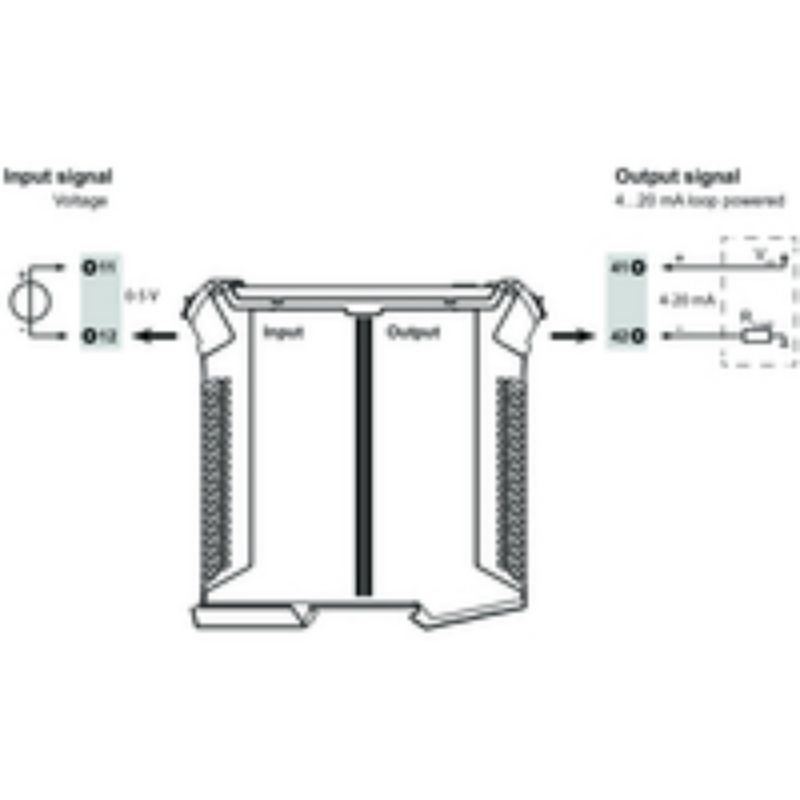

Weidmuller ACT20P-VI1-CO-OLP-S 7760054120 is Signal converter/isolator, Output current loop powered, Input : 0-5 V, Output : 4-20 mA, (loop powered).

Products Details

  Weidmuller meets the ever increasing challenges of automation and offers a product portfolio tailored to the requirements of handling sensor signals in analogue signal processing, include series ACT20C. ACT20X. ACT20P. ACT20M. MCZ. PicoPak .WAVE etc. The analogue signal processing products can be used universally in combination with other Weidmuller products and in combination among each other. Their electrical and mechanical design is such that they require only minimal wiring efforts. Housing types and wire-connection methods matched to the respective application facilitate the universal use in process and industrial automation applications. The product line includes the following functions: Isolating transformers, supply isolators and signal converters for DC standard signals Temperature measuring transducers for resistance thermometers and thermocouples, frequency converters, potentiometer-measuring-transducers, bridge measuring transducers (strain gauges) trip amplifiers and modules for monitoring electrical and non-electrical process variables AD/DA converters displays calibration devices The products mentioned are available as pure signal converters / isolation transducers, 2-way/3-way isolators, supply isolators, passive isolators or as trip amplifiers.
Depth 114 mm
Depth (inches) 4.488 inch
Height 117.2 mm
Height (inches) 4.614 inch
Width 12.5 mm
Width (inches) 0.492 inch
Net weight 100 g

Version Signal converter/isolator, Output current loop powered, Input : 0-5 V, Output : 4-20 mA, (loop powered)
Order No. 7760054120
Type ACT20P-VI1-CO-OLP-S
GTIN (EAN) 6944169656606
Qty. 1 pc(s).

Order No. Type
7760054118 ACT20P-CI1-CO-OLP-S
7760054123 ACT20P-CI-CO-ILP-S
7760054357 ACT20P-CI-CO-ILP-P
7760054119 ACT20P-CI2-CO-OLP-S
7760054120 ACT20P-VI1-CO-OLP-S
7760054121 ACT20P-VI-CO-OLP-S
  When used for industrial monitoring applications, sensors can record ambience conditions. Sensor signals are used within the process to continually track changes to the area being monitored. Both digital and analogue signals can occur. Normally an electrical voltage or current value is produced which corresponds proportionally to the physical variables that are being monitored Analogue signal processing is required when automation processes have to constantly maintain or reach defined conditions. This is particularly significant for process automation applications. Standardised electrical signals are typically used for process engineering. Analogue standardised currents / voltage 0(4)...20 mA/ 0...10 V have established themselves as physical measurement and control variables.
