ACT20M:The slim solution Safe and space-saving (6 mm) isolation and conversion Quick installation of the power supply unit using the CH20M mounting rail bus Easy configuration via DIP switch or FDT/DTM software Extensive approvals such as ATEX, IECEX, GL, DNV High interference resistance

Depth	114.3 mm
Depth (inches)	4.5 inch
Height	112.5 mm
Height (inches)	4.429 inch
Width	6.1 mm
Width (inches)	0.24 inch
Net weight	80 g

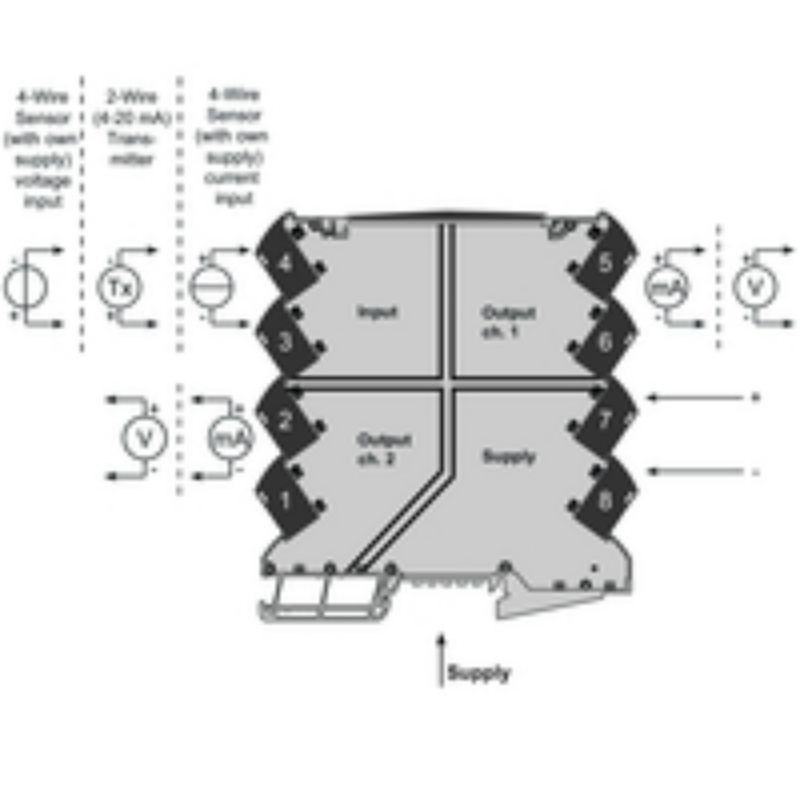

Version	Signal splitter, Configurable, with sensor supply, Input : I / U, Output : 2 x I/U
Order No.	1176020000
Type	ACT20M-AI-2AO-S
GTIN (EAN)	4032248970087
Qty.	1 pc(s).



1176020000	ACT20M-AI-2AO-S
1175990000	ACT20M-CI-2CO-S
1375470000	ACT20M-BAI-2AO-S
1176000000	ACT20M-AI-AO-S
1175980000	ACT20M-CI-CO-S

  Weidmuller meets the ever increasing challenges of automation and offers a product portfolio tailored to the requirements of handling sensor signals in analogue signal processing, include series ACT20C. ACT20X. ACT20P. ACT20M. MCZ. PicoPak .WAVE etc. The analogue signal processing products can be used universally in combination with other Weidmuller products and in combination among each other. Their electrical and mechanical design is such that they require only minimal wiring efforts. Housing types and wire-connection methods matched to the respective application facilitate the universal use in process and industrial automation applications. The product line includes the following functions: Isolating transformers, supply isolators and signal converters for DC standard signals Temperature measuring transducers for resistance thermometers and thermocouples, frequency converters, potentiometer-measuring-transducers, bridge measuring transducers (strain gauges) trip amplifiers and modules for monitoring electrical and non-electrical process variables AD/DA converters displays calibration devices The products mentioned are available as pure signal converters / isolation transducers, 2-way/3-way isolators, supply isolators, passive isolators or as trip amplifiers.
