Weidmuller A3C 1.5 1552740000 Feed-through Terminal

Weidmuller A3C 1.5 is A-Series terminal block, Feed-through terminal, PUSH IN, 1.5 mm², 500 V, 17.5 A, dark beige,order no. is 1552740000. Weidmuller’s A-Series terminal blocks,increase your efficiency during installations without compromising on safety. The innovative PUSH IN technology reduces connection times for solid conductors and conductors with crimped-on wire-end ferrules by up to 50 percent compared to tension clamp terminals. The conductor is simply inserted into the contact point as far as the stop and that’s it – you have a safe, gas-tight connection. Even stranded-wire conductors can be connected without any problem and without the need for special tools. Safe and reliable connections are crucial, especially under harsh conditions, such as those encountered in the process industry. PUSH IN technology guarantees optimal contact security and ease of handling, even in demanding applications.

Products Details

Spring connection with PUSH IN technology (A-Series) Time saving 1.Mounting foot makes unlatching the terminal block easy 2. Clear distinction made between all functional areas 3.Easier marking and wiring Space saving design 1.Slim design creates a large amount of space in the panel 2.High wiring density despite less space being required on the terminal rail Safety 1.Optical and physical separation of operation and conductor entry 2.Vibration-resistant, gas-tight connection with copper power rails and stainless steel spring Flexibility 1.Large marking surfaces make maintenance work easier 2.Clip-in foot compensates for differences in terminal rail dimensions

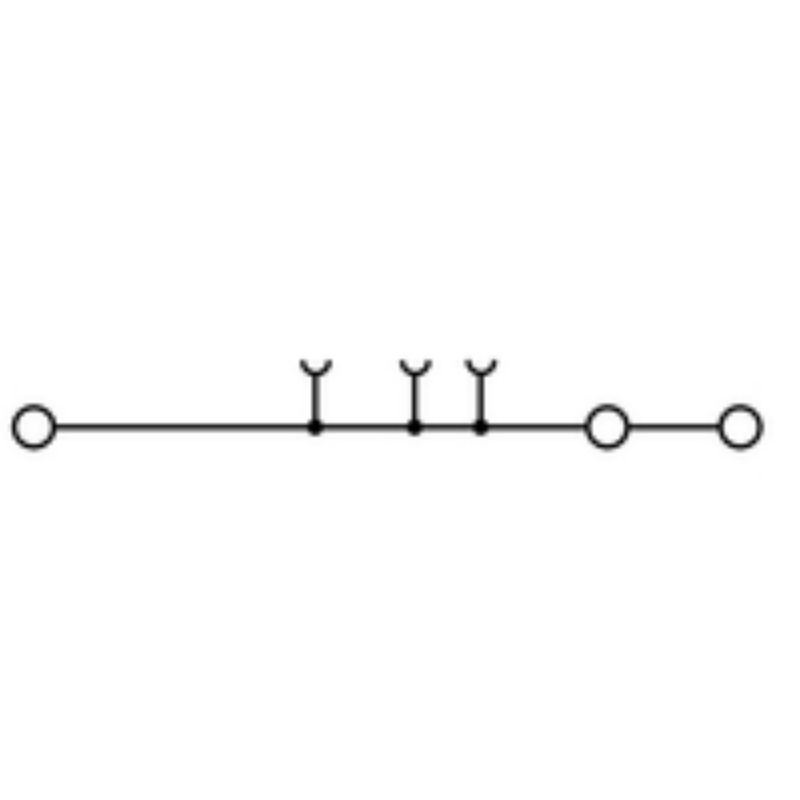

Version Feed-through terminal, PUSH IN, 1.5 mm², 500 V, 17.5 A, dark beige
Order No. 1552740000
Type A3C 1.5
GTIN (EAN) 4050118359626
Qty. 50 pc(s).

Depth 33.5 mm
Depth (inches) 1.319 inch
Depth including DIN rail 34 mm
Height 61.5 mm
Height (inches) 2.421 inch
Width 3.5 mm
Width (inches) 0.138 inch
Net weight 4.791 g

Order No. Type
2508170000 A2C 1.5 BK
1552820000 A2C 1.5 BL
1552790000 A2C 1.5
2508200000 A2C 1.5 BR
2508180000 A2C 1.5 DBL
2508210000 A2C 1.5 GN
2508220000 A2C 1.5 LTGY
1552830000 A2C 1.5 OR
2508020000 A2C 1.5 RD
2508160000 A2C 1.5 WT
2508190000 A2C 1.5 YL
1552740000 A3C 1.5
2534230000 A3C 1.5 BK
1552770000 A3C 1.5 BL
2534530000 A3C 1.5 BR
1552690000 A4C 1.5
1552700000 A4C 1.5 BL
2534420000 A4C 1.5 LTGY
1552720000 A4C 1.5 OR
