Weidmuller A2T 2.5 1547610000 Feed-through Terminal

Weidmuller A2T 2.5 is A-Series terminal block, Feed-through terminal, Double-tier terminal, PUSH IN, 2.5 mm², 800 V, 24 A, dark beige,order no. is 1547610000. Weidmuller’s A-Series terminal blocks,increase your efficiency during installations without compromising on safety. The innovative PUSH IN technology reduces connection times for solid conductors and conductors with crimped-on wire-end ferrules by up to 50 percent compared to tension clamp terminals. The conductor is simply inserted into the contact point as far as the stop and that’s it – you have a safe, gas-tight connection. Even stranded-wire conductors can be connected without any problem and without the need for special tools. Safe and reliable connections are crucial, especially under harsh conditions, such as those encountered in the process industry. PUSH IN technology guarantees optimal contact security and ease of handling, even in demanding applications.

Products Details

Spring connection with PUSH IN technology (A-Series) Time saving 1.Mounting foot makes unlatching the terminal block easy 2. Clear distinction made between all functional areas 3.Easier marking and wiring Space saving design 1.Slim design creates a large amount of space in the panel 2.High wiring density despite less space being required on the terminal rail Safety 1.Optical and physical separation of operation and conductor entry 2.Vibration-resistant, gas-tight connection with copper power rails and stainless steel spring Flexibility 1.Large marking surfaces make maintenance work easier 2.Clip-in foot compensates for differences in terminal rail dimensions

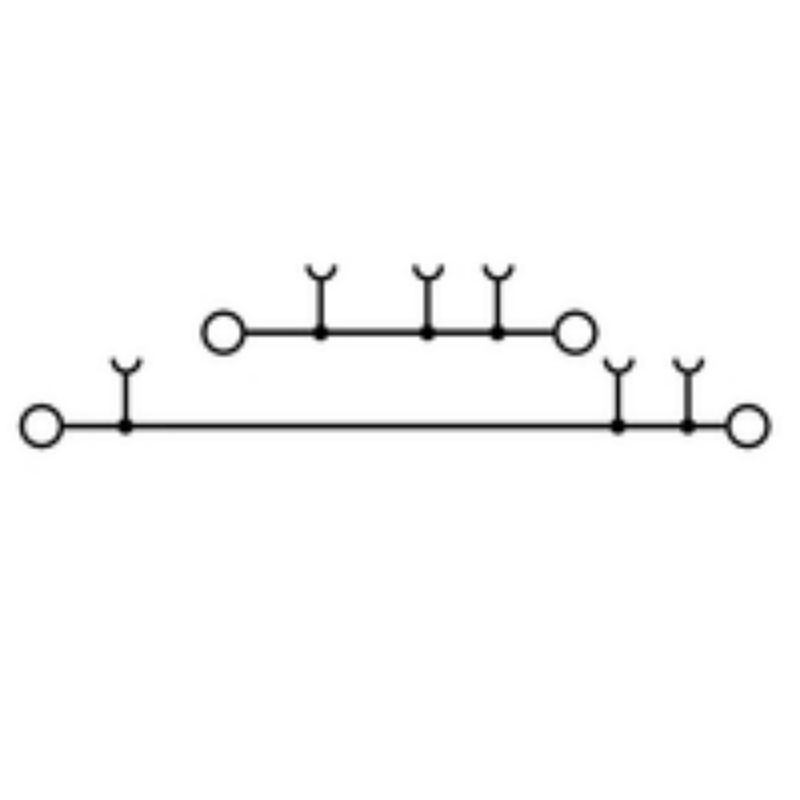

Version Feed-through terminal, Double-tier terminal, PUSH IN, 2.5 mm², 800 V, 24 A, dark beige
Order No. 1547610000
Type A2T 2.5
GTIN (EAN) 4050118462838
Qty. 50 pc(s).

Depth 50.5 mm
Depth (inches) 1.988 inch
Depth including DIN rail 51 mm
Height 90 mm
Height (inches) 3.543 inch
Width 5.1 mm
Width (inches) 0.201 inch
Net weight 13.17 g

Order No. Type
1547610000 A2T 2.5
2531290000 A2T 2.5 3C
2766890000 A2T 2.5 3C FT BK-FT
2531300000 A2T 2.5 3C FT-PE
2736830000 A2T 2.5 3C N-FT
2623550000 A2T 2.5 3C N-PE
2531310000 A2T 2.5 3C VL
2744270000 A2T 2.5 BK
1547620000 A2T 2.5 BL
1547650000 A2T 2.5 VL
1547670000 A2T 2.5 VL OR
2744260000 A2T 2.5 YL
1547660000 A2T 2.5 VL BL
2723370000 A2T 2.5 N-FT
1547640000 A2T 2.5 FT-PE
1552690000 A4C 1.5
1552700000 A4C 1.5 BL
2534420000 A4C 1.5 LTGY
1552720000 A4C 1.5 OR
