Hi-Speed USB 2.0 for up to 480 Mbps USB data transmission rates
921.6 kbps maximum baudrate for fast data transmission
Real COM and TTY drivers for Windows, Linux, and macOS
Mini-DB9-female-to-terminal-block adapter for easy wiring
LEDs for indicating USB and TxD/RxD activity
2 kV isolation protection (for “V' models)
USB Interface| Speed | 12 Mbps, 480 Mbps |
| USB Connector | USB Type B |
| USB Standards | USB 1.1/2.0 compliant |
| No. of Ports | UPort 1200 Models: 2UPort 1400 Models: 4UPort 1600-8 Models: 8UPort 1600-16 Models: 16 |
| Connector | DB9 male |
| Baudrate | 50 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1,1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, XON/XOFF |
| Isolation | 2 kV (I models) |
| Serial Standards | UPort 1410/1610-8/1610-16: RS-232UPort 1250/1250I/1450/1650-8/1650-16: RS-232, RS-422, RS-485 |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| Input Voltage | UPort 1250/1410/1450: 5 VDC1 UPort 1250I/1400/1600-8 Models: 12to 48 VDC UPort1600-16 Models: 100 to 240 VAC |
| Input Current | UPort 1250: 360 mA@5 VDC UPort 1250I: 200 mA @12 VDC UPort 1410/1450: 260 mA@12 VDC UPort 1450I: 360mA@12 VDC UPort 1610-8/1650-8: 580 mA@12 VDC UPort 1600-16 Models: 220 mA@ 100 VAC |
| Housing | Metal |
| Dimensions | UPort 1250/1250I: 77 x 26 x 111 mm (3.03 x 1.02 x 4.37 in) UPort 1410/1450/1450I: 204x30x125mm (8.03x1.18x4.92 in) UPort 1610-8/1650-8: 204x44x125 mm (8.03x1.73x4.92 in) UPort 1610-16/1650-16: 440 x 45.5 x 198.1 mm (17.32 x1.79x 7.80 in) |
| Weight | UPort 1250/12501:180 g (0.40 lb) UPort1410/1450/1450I: 720 g (1.59 lb) UPort1610-8/1650-8: 835 g (1.84 lb) UPort1610-16/1650-16: 2,475 g (5.45 lb) |
| Storage Temperature (package included) | -20 to 75°C (-4 to167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Operating Temperature | UPort 1200 Models: 0 to 60°C (32 to 140°F) UPort 1400//1600-8/1600-16 Models: 0 to 55°C (32 to 131°F) |
| Model Name | USB Interface | Serial Standards | No. of Serial Ports | Isolation | Housing Material | Operating Temp. |
| UPort1250 | USB 2.0 | RS-232/422/485 | 2 | - | Metal | 0 to 55°C |
| UPort1250I | USB 2.0 | RS-232/422/485 | 2 | 2kV | Metal | 0 to 55°C |
| UPort1410 | USB2.0 | RS-232 | 4 | - | Metal | 0 to 55°C |
| UPort1450 | USB2.0 | RS-232/422/485 | 4 | - | Metal | 0 to 55°C |

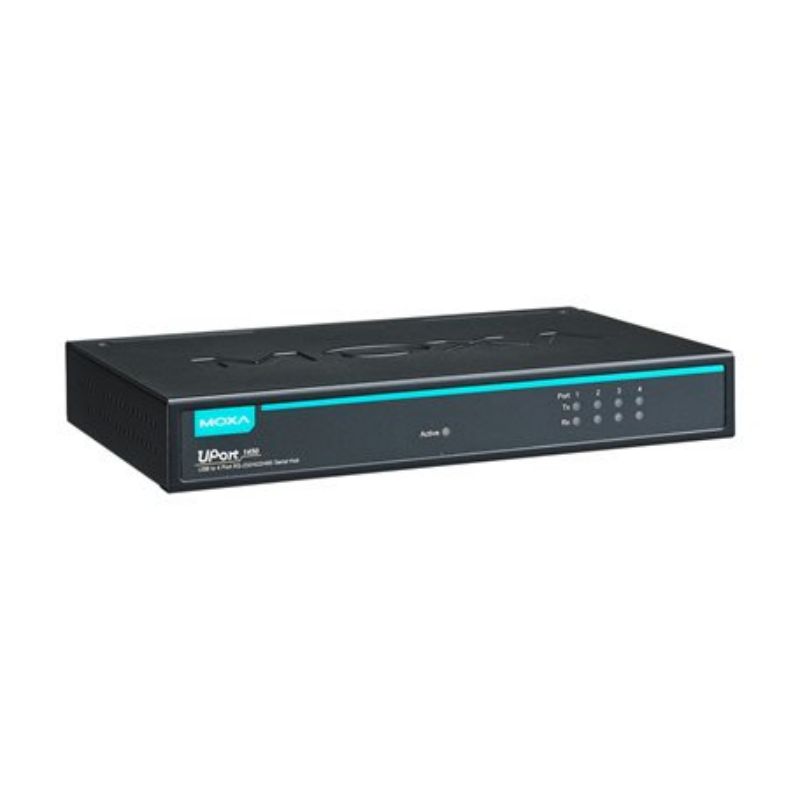

| UPort1450I | USB 2.0 | RS-232/422/485 | 4 | 2kV | Metal | 0 to 55°C |
| UPort1610-8 | USB 2.0 | RS-232 | 8 | - | Metal | 0 to 55°C |
| UPort 1650-8 | USB2.0 | RS-232/422/485 | 8 | - | Metal | 0 to 55°C |
| UPort1610-16 | USB2.0 | RS-232 | 16 | - | Metal | 0 to 55°C |
| UPort1650-16 | USB 2.0 | RS-232/422/485 | 16 | - | Metal | 0 to 55°C |
