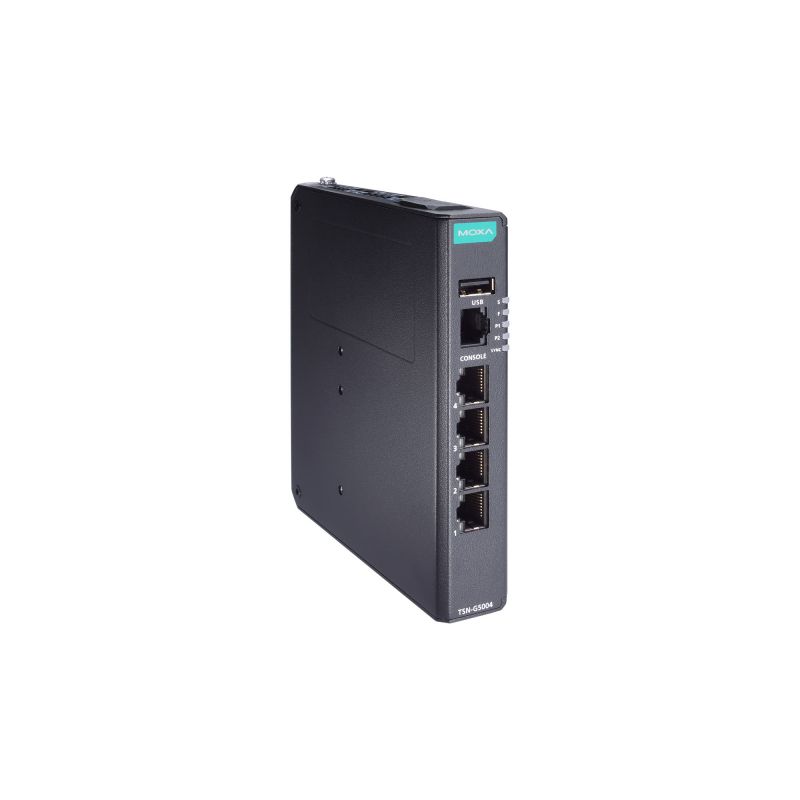

MOXA TSN-G5004 4G-port full Gigabit managed Ethernet switch

The TSN-G5004 Series switches are ideal for making manufacturing networks compatible with the vision of Industry 4.0. The switches are equipped with 4 Gigabit Ethernet ports. The full Gigabit design makes them a good choice for upgrading an existing network to Gigabit speed or for building a new full-Gigabit backbone for future high-bandwidth applications.

Products Details

The TSN-G5004 Series switches are ideal for making manufacturing networks compatible with the vision of Industry 4.0. The switches are equipped with 4 Gigabit Ethernet ports. The full Gigabit design makes them a good choice for upgrading an existing network to Gigabit speed or for building a new full-Gigabit backbone for future high-bandwidth applications. The compact design and user-friendly configuration interfaces provided by the new Moxa web GUI make network deployment much easier. In addition, future firmware upgrades of the TSN-G5004 Series will support real-time communication using standard Ethernet Time-Sensitive Networking (TSN) technology. Moxa's Layer 2 managed switches feature industrial-grade reliability, network redundancy, and security features based on the IEC 62443 standard. We offer toughened, industry-specific products with multiple industry certifications, such as parts of the EN 50155 standard for rail applications, IEC 61850-3 for power automation systems, and NEMA TS2 for intelligent transportation systems.Features and Benefits Compact and flexible housing design to fit into confined spaces Web-based GUI for easy device configuration and management Security features based on IEC 62443 IP40-rated metal housing

Standards



IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseT(X)

IEEE 802.3ab for 1000BaseT(X)

IEEE 802.3z for 1000BaseX

IEEE 802.1Q for VLAN Tagging

IEEE 802.1p for Class of Service

IEEE 802.1D-2004 for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree ProtocolAuto negotiation speed

10/100/1000BaseT(X) Ports (RJ45 connector)

4 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connectionIEEE 802.3x for flow control



Input Voltage

12 to 48 VDC, Redundant dual inputs

Operating Voltage

9.6 to 60 VDC

Physical Characteristics

Dimensions

25 x 135 x 115 mm (0.98 x 5.32 x 4.53 in)

Installation

DIN-rail mounting

Wall mounting (with optional kit)

Weight

582 g (1.28 lb)

Housing

Metal

IP Rating

IP40

Environmental Limits

Operating Temperature

-10 to 60°C (14 to 140°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)EDS-2005-EL-T: -40 to 75°C (-40 to 167°F)

Ambient Relative Humidity

5 to 95% (non-condensing)
