Fast 3-step web-based configuration
Surge protection for serial, Ethernet, and power
COM port grouping and UDP multicast applications
Screw-type power connectors for secure installation
Dual DC power inputs with power jack and terminal block
Versatile TCP and UDP operation modes
Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) | 1 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
Ethernet Software Features
| Configuration Options | Windows Utility, Serial Console ((NPort 5210A NPort 5210A-T, NPort 5250A, and NPort 5250A-T), Web Console (HTTP/HTTPS), Device Search Utility (DSU), MCC Tool, Telnet Console |
| Management | ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, SMTP, SNMPv1/ v2c, Telnet, TCP/IP, UDP |
| Filter | IGMPv1/v2 |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64),Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5. x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15 |
| Android API | Android 3.1.x and later |
| MR | RFC1213, RFC1317 |
Power Parameters
| Input Current | 119mA@12VDC |
| Input Voltage | 12to48 VDC |
| No. of Power Inputs | 2 |
| Power Connector | 1 removable 3-contact terminal block(s) Power input jack |
Physical Characteristics
| Housing | Metal |
| Dimensions (with ears) | 100x111 x26 mm (3.94x4.37x 1.02 in) |
| Dimensions (without ears) | 77x111 x26 mm (3.03x4.37x 1.02 in) |
| Weight | 340 g (0.75 lb) |
| Installation | Desktop, DIN-rail mounting (with optional kit), Wall mounting |
Environmental Limits
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F)Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 75°C (-40 to167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |

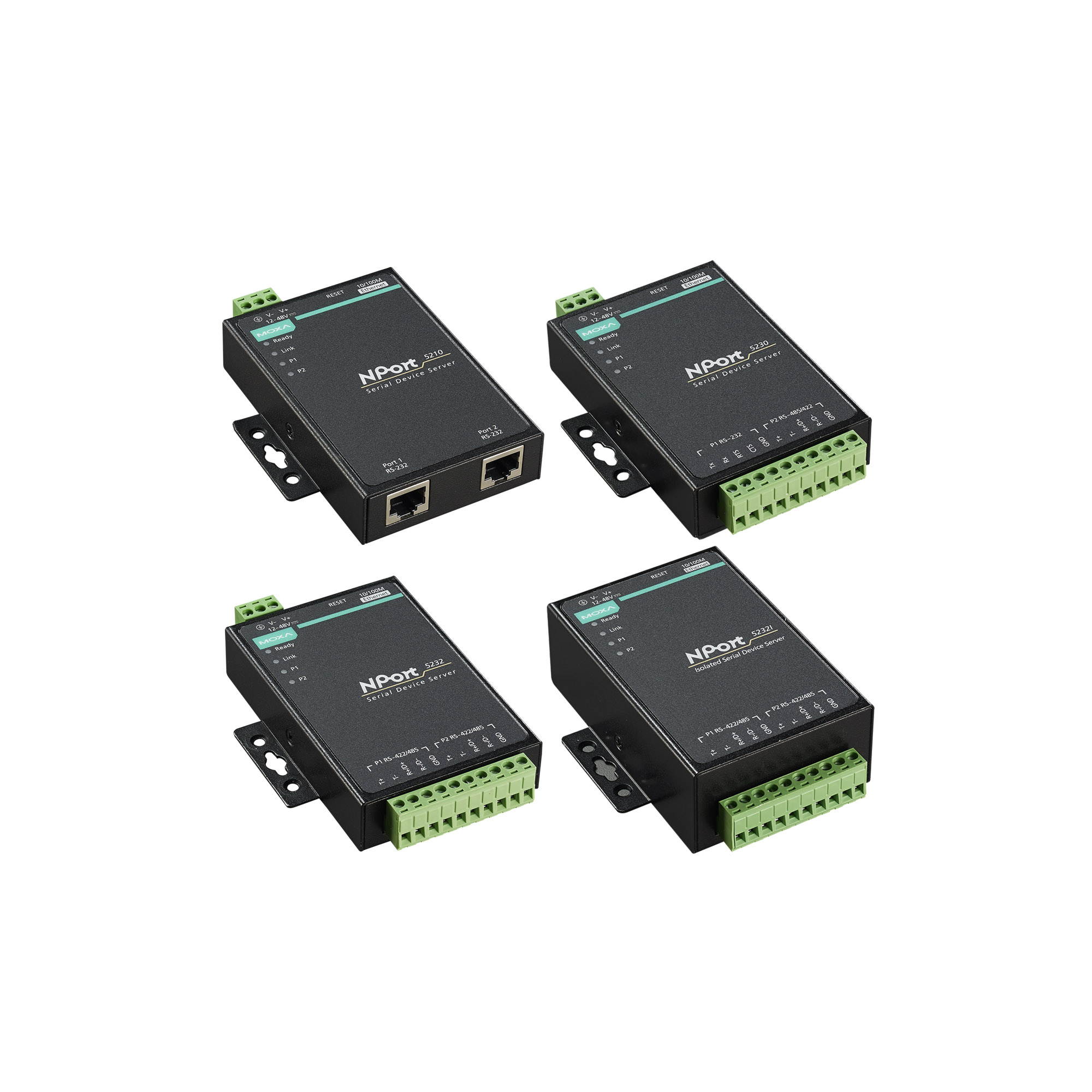

MOXA NPort 5210A Available Models
| Model Name | Operating Temp. | Baudrate | Serial Standards | No. of Serial Ports | Input Current | Input Voltage |
| NPort 5210A | 0 to 55°C | 50 bps to 921.6 kbps | RS-232 | 2 | 119mA@12VDC | 12-48 VDC |
| NPort 5210A-T | -40 to 75°C | 50 bps to 921.6 kbps | RS-232 | 2 | 119mA@12VDC | 12-48 VDC |
| NPort 5230A | 0 to 55°C | 50 bps to 921.6 kbps | RS-422/485 | 2 | 119mA@12VDC | 12-48 VDC |
| NPort 5230A-T | -40 to 75°C | 50 bps to 921.6 kbps | RS-422/485 | 2 | 119mA@12VDC | 12-48 VDC |
| NPort 5250A | 0 to 55°C | 50 bps to 921.6 kbps | RS-232/422/485 | 2 | 119mA@12VDC | 12-48 VDC |
| NPort 5250A-T | -40 to 75°C | 50 bps to 921.6 kbps | RS-232/422/485 | 2 | 119mA@12VDC | 12-48 VDC |
