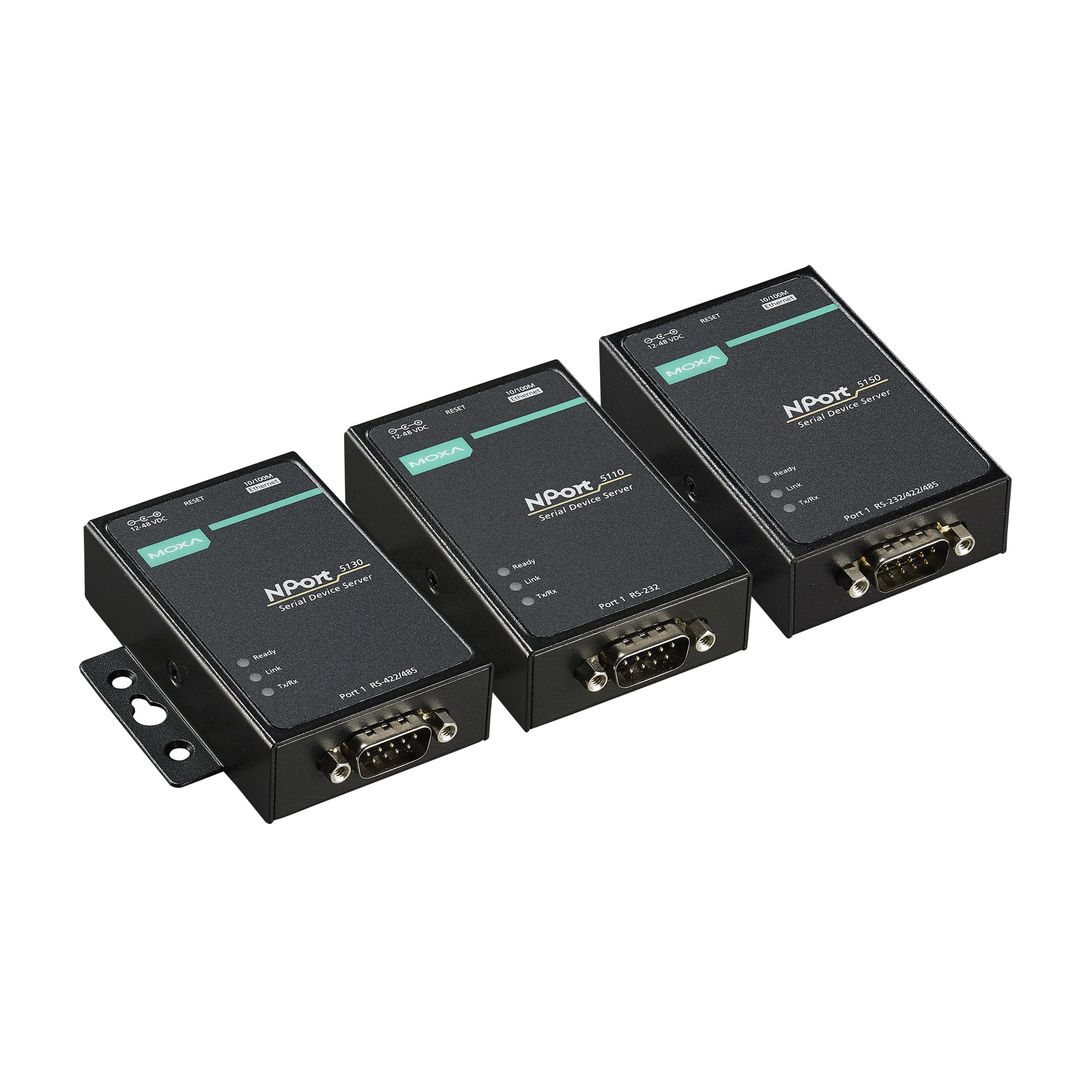

MOXA NPort 5130A Industrial General Device Server

The NPor 5100A device servers are designed to make serial devices network-ready in an instant and give your PC software direct access to serial devices from anywhere on the network. The NPort® 5100A device servers are ultra-lean, ruggedized, and user-friendly, making simple and reliable serial-to-Ethernet solutions possible.
send email to us

Products Details

Power consumption of only 1 W  Fast 3-step web-based configuration  Surge protection for serial, Ethernet, and power  COM port grouping and UDP multicast applications  Screw-type power connectors for secure installation  Real COM and TTY drivers for Windows, Linux, and macOS  Standard TCP/IP interface and versatile TCP and UDP operation modes  Connects up to 8 TCP hosts  Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) 1
Magnetic Isolation Protection  1.5 kV (built-in)


  Ethernet Software Features
Configuration Options Windows Utility, Web Console (HTTP/HTTPS), Device Search Utility (DSU), MCC Tool, Telnet Console, Serial Console (NPort 5110A/5150A models only)
Management DHCP Client, ARP, BOOTP, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, SMTP, SNMPv1/ v2c, TCP/IP, Telnet, UDP
Filter IGMPv1/v2
Windows Real COM Drivers

Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64),

Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15, SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android API Android 3.1.x and later
MR RFC1213, RFC1317
  Power Parameters
No. of Power Inputs 1
Input Current NPort 5110A: 82.5 mA@12 VDC NPort5130A: 89.1 mA@12VDCNPort 5150A: 92.4mA@12 VDC
Input Voltage 12to48 VDC
Source of Input Power Power input jack
  Physical Characteristics
Housing Metal
Dimensions (with ears) 75.2x80x22 mm (2.96x3.15x0.87 in)
Dimensions (without ears) 52x80x 22 mm (2.05 x3.15x 0.87 in)
Weight 340 g (0.75 lb)
Installation Desktop, DIN-rail mounting (with optional kit), Wall mounting
  Environmental Limits
Operating Temperature Standard Models: 0 to 60°C (32 to 140°F)Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included) -40 to 75°C (-40 to167°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  MOXA NPort 5110A Available Models
Model Name

OperatingTemp.

Baudrate

Serial Standards

No. of Serial Ports

Input Current

Input Voltage
NPort5110A

0 to 60°C

50 bps to 921.6 kbps

RS-232

1

82.5 mA@12VDC

 12-48 VDC
NPort5110A-T

-40 to 75°C

50 bps to 921.6 kbps

RS-232

1

82.5 mA@12VDC

12-48 VDC
NPort5130A

0 to 60°C

50 bps to 921.6 kbps

RS-422/485

1

89.1 mA@12VDC

12-48 VDC
NPort 5130A-T

-40 to 75°C

50 bps to 921.6 kbps

RS-422/485

1

89.1 mA@12 VDC

12-48 VDC
NPort 5150A

0to 60°C

50 bps to 921.6 kbps

RS-232/422/485

1

92.4 mA@12 VDC

12-48 VDC
NPort 5150A-T

-40 to 75°C

50 bps to 921.6 kbps

RS-232/422/485

1

92.4 mA@12 VDC

12-48 VDC
