MOXA NDR-120-24 Power Supply

The NDR Series of DIN rail power supplies is designed specifically for use in industrial applications. The 40 to 63 mm slim form-factor enables the power supplies to be easily installed in small and confined spaces such as cabinets. The broad operating temperature range of -20 to 70°C means they are capable of operating in harsh environments.
send email to us

Products Details

The NDR Series of DIN rail power supplies is designed specifically for use in industrial applications. The 40 to 63 mm slim form-factor enables the power supplies to be easily installed in small and confined spaces such as cabinets. The broad operating temperature range of -20 to 70°C means they are capable of operating in harsh environments. The devices have a metal housing, an AC input range from 90 VAC to 264 VAC, and conform to the EN 61000-3-2 standard. In addition, these power supplies feature constant current mode to provide overload protection.Features and Benefits DIN-rail mounted power supply Slim form factor that is ideal for cabinet installation Universal AC power input High power conversion efficiency
Wattage ENDR-120-24: 120 W NDR-120-48: 120 W NDR-240-48: 240 W
Voltage NDR-120-24: 24 VDC NDR-120-48: 48 VDC NDR-240-48: 48 VDC
Current Rating NDR-120-24: 0 to 5 A NDR-120-48: 0 to 2.5 A NDR-240-48: 0 to 5 A
Ripple and Noise NDR-120-24: 120 mVp-p NDR-120-48: 150 mVp-p NDR-240-48: 150 mVp-p
Voltage Adjustment Range NDR-120-24: 24 to 28 VDC NDR-120-48: 48 to 55 VDC NDR-240-48: 48 to 55 VDC
Setup/Rise Time at Full Load INDR-120-24: 2500 ms, 60 ms at 115 VAC NDR-120-24: 1200 ms, 60 ms at 230 VAC NDR-120-48: 2500 ms, 60 ms at 115 VAC NDR-120-48: 1200 ms, 60 ms at 230 VAC NDR-240-48: 3000 ms, 100 ms at 115 VAC NDR-240-48: 1500 ms, 100 ms at 230 VAC
Typical Hold Up Time at Full Load NDR-120-24: 10 ms at 115 VAC NDR-120-24: 16 ms at 230 VAC NDR-120-48: 10 ms at 115 VAC NDR-120-48: 16 ms at 230 VAC NDR-240-48: 22 ms at 115 VAC NDR-240-48: 28 ms at 230 VAC


Weight

NDR-120-24: 500 g (1.10 lb) NDR-120-48: 500 g (1.10 lb) NDR-240-48: 900 g (1.98 lb)

Housing

Metal

Dimensions

NDR-120-24: 123.75 x 125.20 x 40 mm (4.87 x 4.93 x 1.57 in) NDR-120-48: 123.75 x 125.20 x 40 mm (4.87 x 4.93 x 1.57 in) NDR-240-48: 127.81 x 123.75 x 63 mm (5.03 x 4.87 x 2.48 in))

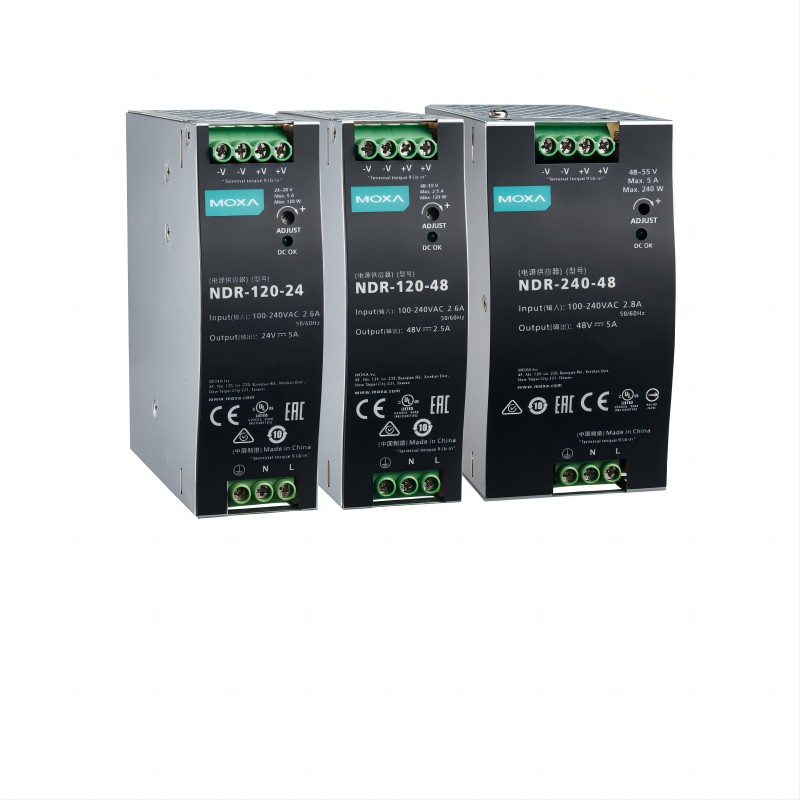

Model 1 MOXA NDR-120-24
Model 2 MOXA NDR-120-48
Model 3 MOXA NDR-240-48
