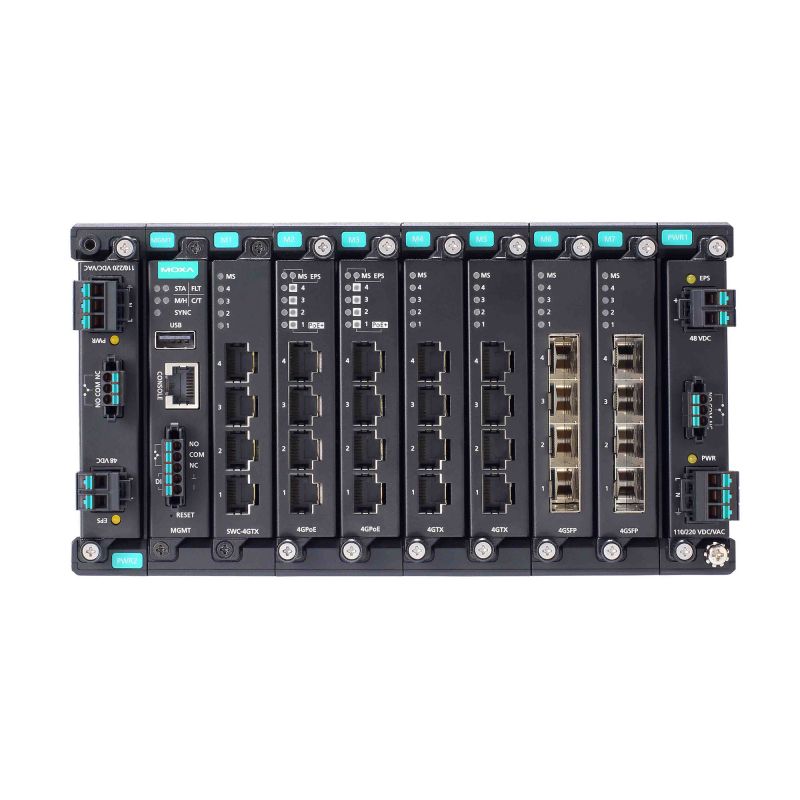

MOXA MDS-G4028-T Layer 2 Managed Managed Industrial Ethernet Switch

The MDS-G4028 Series modular switches support up to 28 Gigabit ports, including 4 embedded ports, 6 interface module expansion slots, and 2 power module slots to ensure sufficient flexibility for a variety of applications. The highly compact MDS-G4000 Series is designed to meet evolving network requirements, ensuring effortless installation and maintenance, and features a hot-swappable module design that enables you to easily change or add modules without shutting down the switch or interrupting network operations. The multiple Ethernet modules (RJ45, SFP, and PoE+) and power units (24/48 VDC, 110/220 VAC/VDC) provide even greater flexibility as well as suitability for different operating conditions, delivering an adaptive full Gigabit platform that provides the versatility and bandwidth necessary to serve as an Ethernet aggregation/edge switch. Featuring a compact design that fits in confined spaces, multiple mounting methods, and convenient tool-free module installation, the MDS-G4000 Series switches enable versatile and effortless deployment without the need for highly skilled engineers. With multiple industry certifications and a highly durable housing, the MDS-G4000 Series can reliably operate in tough and hazardous environments such as power substations, mining sites, ITS, and oil and gas applications. Support for dual power modules provides redundancy for high reliability and availability while LV and HV power module options offer additional flexibility to accommodate the power requirements of different applications. In addition, the MDS-G4000 Series features an HTML5–based, user-friendly web interface providing a responsive, smooth user experience across different platforms and browsers.

Products Details

Multiple interface type 4-port modules for greater versatility Tool-free design for effortlessly adding or replacing modules without shutting down the switch Ultra-compact size and multiple mounting options for flexible installation Passive backplane to minimize maintenance efforts Rugged die-cast design for use in harsh environments Intuitive, HTML5-based web interface for a seamless experience across different platforms
Input Voltage with PWR-HV-P48 installed:110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz, PoE: 48 VDC with PWR-LV-P48 installed: 24/48 VDC, PoE: 48VDC with PWR-HV-NP installed: 110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz with PWR-LV-NP installed: 24/48 VDC
Operating Voltage with PWR-HV-P48 installed:88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz, PoE: 46 to 57 VDC with PWR-LV-P48 installed: 18 to 72 VDC (24/48 VDC for hazardous location), PoE: 46 to 57 VDC (48 VDC for hazardous location) with PWR-HV-NP installed: 88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz with PWR-LV-NP installed: 18 to 72 VDC
Input Current with PWR-HV-P48/PWR-HV-NP installed:Max. 0.11A@110 VDC Max. 0.06 A @ 220 VDC Max. 0.29A@110VAC Max. 0.18A@220VAC with PWR-LV-P48/PWR-LV-NP installed: Max. 0.53A@24 VDC Max. 0.28A@48 VDC
Max. PoE PowerOutput per Port 36W
Total PoE Power Budget Max. 360 W (with one power supply) for total PD consumption at 48 VDC input for PoE systemsMax. 360 W (with one power supply) for total PD consumption at 53 to 57 VDC input for PoE+ systems Max. 720 W (with two power supplies) for total PD consumption at 48 VDC input for PoE systems Max. 720 W (with two power supplies) for total PD consumption at 53 to 57 VDC input for PoE+ systems
Overload Current Protection Supported
Reverse Polarity Protection Supported
IP Rating IP40
Dimensions 218x115x163.25 mm (8.59x4.53x6.44 in)
Weight 2840 g (6.27 lb)
Installation DIN-rail mounting, Wall mounting (with optional kit), Rack mounting (with optional kit)
Operating Temperature Standard Temperature: -10to 60°C (-14to 140°F)Wide Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included) -40 to 85°C (-40 to185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Model 1 MOXA MDS-G4028-T
Model 2 MOXA MDS-G4028
