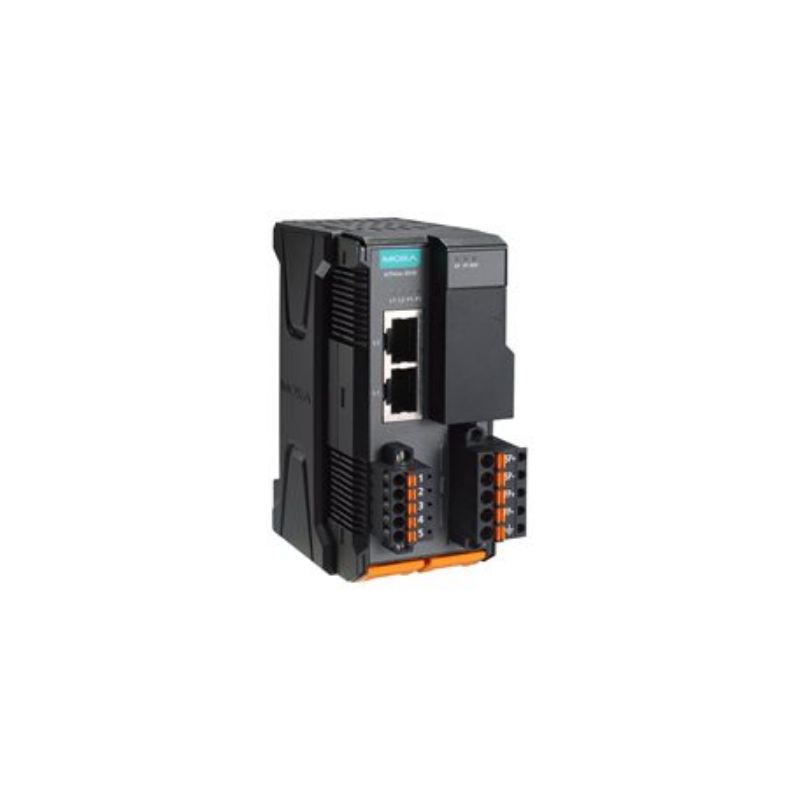

Moxa ioThinx 4510 Series Advanced Modular Remote I/O

The ioThinx 4510 Series is an advanced modular remote I/O product with a unique hardware and software design, making it an ideal solution for a variety of industrial data acquisition applications. The ioThinx 4510 Series has a unique mechanical design that reduces the amount of time required for installation and removal, simplifying deployment and maintenance. In addition, the ioThinx 4510 Series supports Modbus RTU Master protocol for retrieving field site data from serial meters and also supports OT/IT protocol conversion.

Products Details

 Easy tool-free installation and removal  Easy web configuration and reconfiguration  Built-in Modbus RTU gateway function  Supports Modbus/SNMP/RESTful API/MQTT  Supports SNMPv3, SNMPv3 Trap, and SNMPv3 Inform with SHA-2 encryption  Supports up to 32 I/O modules  -40 to 75°C wide operating temperature model available  Class I Division 2 and ATEX Zone 2 certifications

Input/Output Interface

Buttons Reset button
Expansion Slots Up to 3212
Isolation 3kVDC or2kVrms
  Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) 2,1 MAC address (Ethernet bypass)
Magnetic Isolation Protection 1.5kV(built-in)
    Ethernet Software Features
Configuration Options Web Console (HTTP/HTTPS), Windows Utility (IOxpress), MCC Tool
Industrial Protocols Modbus TCP Server (Slave), RESTful API,SNMPv1/v2c/v3, SNMPv1/v2c/v3 Trap, SNMPv2c/v3 Inform, MQTT
Management SNMPv1/v2c/v3, SNMPv1/v2c/v3 Trap, SNMPv2c/v3 Inform, DHCP Client, IPv4, HTTP, UDP, TCP/IP
  Security Functions
Authentication Local database
Encryption HTTPS, AES-128, AES-256, HMAC, RSA-1024,SHA-1, SHA-256, ECC-256
Security Protocols SNMPv3
  Serial Interface
Connector Spring-type Euroblock terminal
Serial Standards RS-232/422/485
No. of Ports 1 x RS-232/422 or2x RS-485 (2 wire)
Baudrate 1200,1800, 2400, 4800, 9600,19200, 38400, 57600,115200 bps
Flow Control RTS/CTS
Parity None, Even, Odd
Stop Bits 1,2
Data Bits 8
  Serial Signals
RS-232 TxD, RxD, RTS, CTS, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
  Serial Software Features
Industrial Protocols Modbus RTU Master
  System Power Parameters
Power Connector Spring-type Euroblock terminal
No. of Power Inputs 1
Input Voltage 12to48 VDC
Power Consumption 800 mA@12VDC
Over-Current Protection 1 A@25°C
Over-Voltage Protection 55 VDC
Output Current 1 A (max.)
  Field Power Parameters
Power Connector Spring-type Euroblock terminal
No. of Power Inputs 1
Input Voltage 12/24 VDC
Over-Current Protection 2.5A@25°C
Over-Voltage Protection 33VDC
Output Current 2 A (max.)
  Physical Characteristics
Wiring Serial cable, 16to 28AWG Power cable, 12to18 AWG
Strip Length Serial cable, 9 mm
 Available Models
Model Name

Ethernet Interface

Serial Interface

Max No. of I/O Modules Supported

Operating Temp.

ioThinx 4510

2 x RJ45

RS-232/RS-422/RS-485

32

-20 to 60°C

ioThinx 4510-T

2 x RJ45

RS-232/RS-422/RS-485

32

-40 to 75°C
