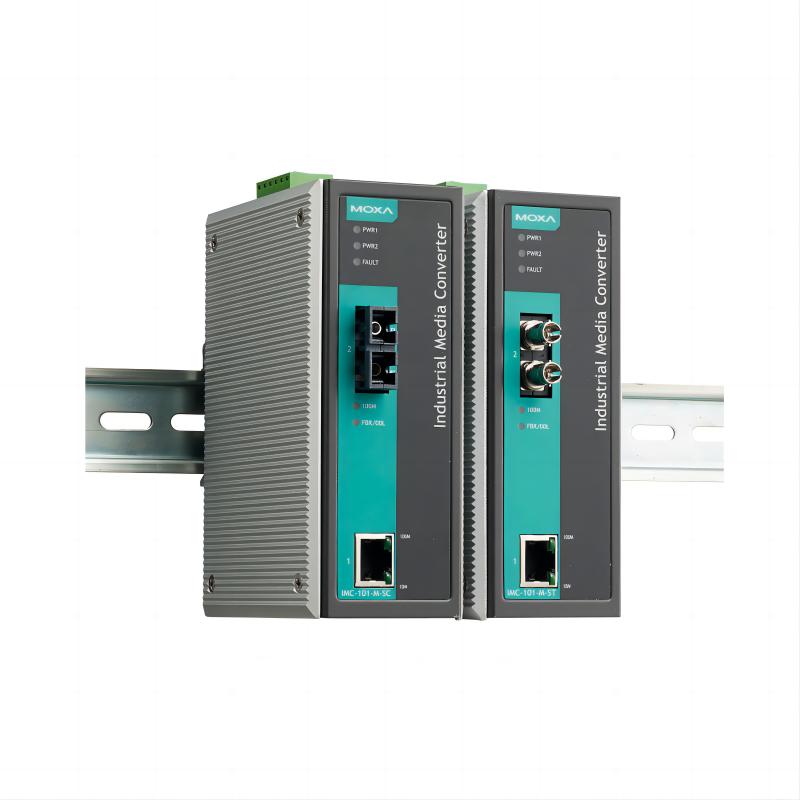

MOXA IMC-101-S-SC Ethernet-to-Fiber Media Converter

The IMC-101 industrial media converters provide industrial-grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The IMC-101 converters’ reliable industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101 converter comes with a relay output warning alarm to help prevent damage and loss. The IMC-101 media converters are designed for harsh industrial environments, such as in hazardous locations (Class 1, Division 2/Zone 2, IECEx, DNV, and GL Certification), and comply with FCC, UL, and CE standards. Models in the IMC-101 Series support an operating temperature from 0 to 60°C, and an extended operating temperature from -40 to 75°C. All IMC-101 converters are subjected to a 100% burn-in test.

Products Details

10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X Link Fault Pass-Through (LFPT) Power failure, port break alarm by relay output Redundant power inputs -40 to 75°C operating temperature range (-T models) Designed for hazardous locations (Class 1 Div. 2/Zone 2, IECEx)Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) 1
100BaseFX Ports (multi-mode SC connector) IMC-101-M-SC/M-SC-IEX Models: 1
100BaseFX Ports (multi-mode ST connector) IMC-101-M-ST/M-ST-IEX Models: 1
100BaseFX Ports (single-mode SC connector) IMC-101-S-SC/S-SC-80/S-SC-IEX/S-SC-80-IEX Models: 1
Power Parameters
Input Current 200 mA@12to45 VDC
Input Voltage 12to45 VDC
Overload Current Protection Supported
Power Connector Terminal block
Power Consumption 200 mA@12to45 VDC
Physical Characteristics
IP Rating IP30
Housing Metal
Dimensions 53.6 x135x105 mm (2.11 x 5.31 x 4.13 in)
Weight 630 g (1.39 lb)
Installation DIN-rail mounting
Environmental Limits
Operating Temperature Standard Models: 0 to 60°C (32 to 140°F)Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included) -40 to 85°C (-40 to185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
IMC-101-S-SC Series  Available Models
Model Name OperatingTemp. FiberModuleType IECEx Fiber Transmission Distance
IMC-101-M-SC 0 to 60°C Multi-modeSC - 5 km
IMC-101-M-SC-T -40 to 75°C Multi-modeSC - 5 km
IMC-101-M-SC-IEX 0 to 60°C Multi-modeSC / 5 km
IMC-101-M-SC-T-IEX -40 to 75°C Multi-modeSC / 5 km
IMC-101-M-ST 0 to 60°C Multi-mode ST - 5 km
IMC-101-M-ST-T -40 to 75°C Multi-mode ST - 5 km
IMC-101-M-ST-IEX 0 to 60°C Multi-modeST / 5 km
IMC-101-M-ST-T-IEX -40 to 75°C Multi-mode ST / 5 km
IMC-101-S-SC 0 to 60°C Single-mode SC - 40 km
IMC-101-S-SC-T -40 to 75°C Single-mode SC - 40 km
IMC-101-S-SC-IEX 0 to 60°C Single-mode SC / 40 km
IMC-101-S-SC-T-IEX -40 to 75°C Single-mode SC / 40 km
IMC-101-S-SC-80 0 to 60°C Single-mode SC - 80 km
IMC-101-S-SC-80-T -40 to 75°C Single-mode SC - 80 km
