MOXA IM-6700A-8TX Fast Ethernet Module

MOXA IM-6700A-8TX fast Ethernet modules are designed for the modular, managed, rack-mountable IKS-6700A Series switches. Each slot of an IKS-6700A switch can accommodate up to 8 ports, with each port supporting the TX, MSC, SSC, and MST media types. As an added plus, the IM-6700A-8PoE module is designed to give IKS-6728A-8PoE Series switches PoE capability.

send email to us

Products Details

MOXA IM-6700A-8TX fast Ethernet modules are designed for the modular, managed, rack-mountable IKS-6700A Series switches. Each slot of an IKS-6700A switch can accommodate up to 8 ports, with each port supporting the TX, MSC, SSC, and MST media types. As an added plus, the IM-6700A-8PoE module is designed to give IKS-6728A-8PoE Series switches PoE capability. The modular design of the IKS-6700A Series ensures that the switches meet multiple application requirements.Features and Benefits Modular design lets you choose from a variety of media combinations
100BaseFX Ports (multi-mode SC connector) IM-6700A-2MSC4TX: 2 IM-6700A-4MSC2TX: 4 IM-6700A-6MSC: 6
100BaseFX Ports (multi-mode ST connector)

IM-6700A-2MST4TX: 2 IM-6700A-4MST2TX: 4 IM-6700A-6MST: 6


100BaseFX Ports (single-mode SC connector)

IM-6700A-2SSC4TX: 2 IM-6700A-4SSC2TX: 4 IM-6700A-6SSC: 6
100BaseSFP Slots IM-6700A-8SFP: 8
10/100BaseT(X) Ports (RJ45 connector) IM-6700A-4MSC2TX/4MST2TX/4SSC2TX: 2 IM-6700A-2MSC4TX/2MST4TX/2SSC4TX: 4 IM-6700A-8TX: 8 Supported functions: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
Standards

IM-6700A-8PoE: IEEE 802.3af/at for PoE/PoE+ output


Power Consumption

IM-6700A-8TX/8PoE: 1.21 W (max.) IM-6700A-8SFP: 0.92 W (max.) IM-6700A-2MSC4TX/2MST4TX/2SSC4TX: 3.19 W (max.) IM-6700A-6MST/6SSC/6MSC: 7.57 W (max.) IM-6700A-4SSC2TX/4MSC2TX/4MST2TX: 5.28 W (max.)

PoE Ports (10/100BaseT(X), RJ45 connector)



IM-6700A-8PoE: Auto negotiation speed, Full/Half duplex mode



Weight



IM-6700A-8TX: 225 g (0.50 lb) IM-6700A-8SFP: 295 g (0.65 lb) IM-6700A-2MSC4TX/2MST4TX/2SSC4TX/4MSC2TX/4MST2TX/4SSC2TX: 270 g (0.60 lb) IM-6700A-6MSC/6SSC/6MSC: 390 g (0.86 lb) IM-6700A-8PoE: 260 g (0.58 lb)



Time

IM-6700A-2MSC4TX/2MST4TX/2SSC4TX: 7,356,096 hrs IM-6700A-4MSC2TX/4MST2TX/4SSC2TX: 4,359,518 hrs IM-6700A-6MSC/6MST/6SSC: 3,153,055 hrs IM-6700A-8PoE: 3,525,730 hrs IM-6700A-8SFP: 5,779,779 hrs IM-6700A-8TX: 28,409,559 hrs

Dimensions
  •
30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in)
  •


Model 1 MOXA-IM-6700A-8TX
Model 2 IM-6700A-8SFP
Model 3 IM-6700A-2MSC4TX
Model 4 IM-6700A-4MSC2TX

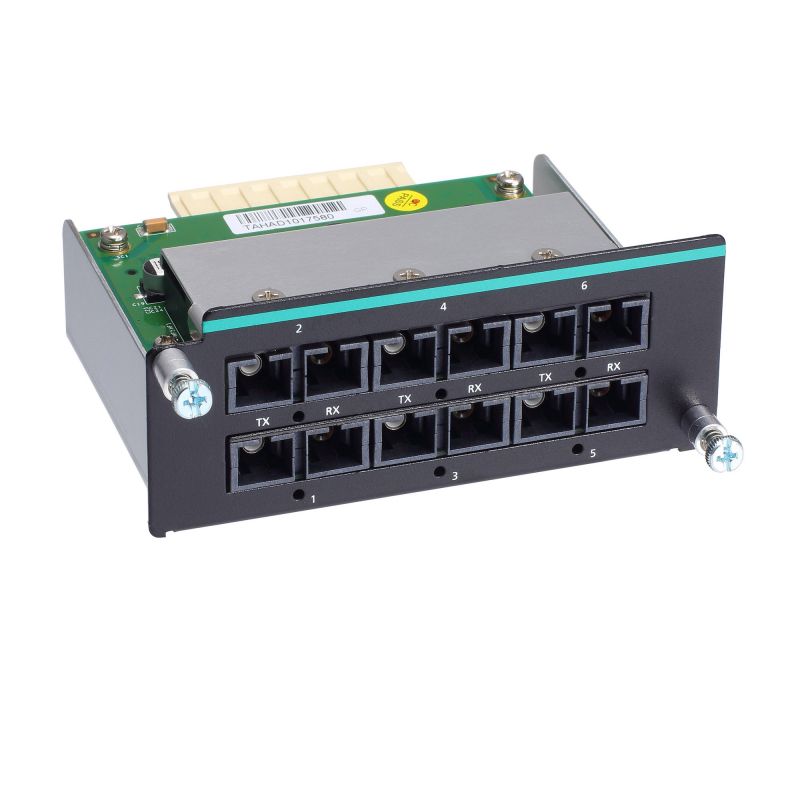

Model 5 IM-6700A-6MSC
Model 6 IM-6700A-2MST4TX
Model 7 IM-6700A-4MST2TX
Model 8 IM-6700A-6MST
